Sales2Comments Off on Brushless Stainless Steel Solar Submersible Pump With Controller – 150V, 1300W, 1848GPH, 1.25″
Applications
DC Solar submersible pumps are fitted with a permanent magnet, brushless motor, which get the power from the sun, you will never have an electric bill. 4SYBL series solar pump can not only be used for household drinking water, but also for animal husbandry and irrigation of small farms, the pump system offers the perfect water supply solution and living condition could be much improved.
Benefits
Offer great reliability when grid power is irregular or unavailable
Lower operating costs to help recoup purchase costs
Easily install and relocate to meet seasonal or variable location needs
Sales2Comments Off on Brushless Stainless Steel Solar Submersible Pump With Controller – 110V, 1100W, 1716GPH, 1.25″
Applications
DC Solar submersible pumps are fitted with a permanent magnet, brushless motor, which get the power from the sun, you will never have an electric bill. 4SYBL series solar pump can not only be used for household drinking water, but also for animal husbandry and irrigation of small farms, the pump system offers the perfect water supply solution and living condition could be much improved.
Benefits
Offer great reliability when grid power is irregular or unavailable
Lower operating costs to help recoup purchase costs
Easily install and relocate to meet seasonal or variable location needs
Sales2Comments Off on Brushless Stainless Steel Solar Submersible Pump With Controller – 110V, 900W, 2376GPH, 1.25″
Applications
DC Solar submersible pumps are fitted with a permanent magnet, brushless motor, which get the power from the sun, you will never have an electric bill. 4SYBL series solar pump can not only be used for household drinking water, but also for animal husbandry and irrigation of small farms, the pump system offers the perfect water supply solution and living condition could be much improved.
Benefits
Offer great reliability when grid power is irregular or unavailable
Lower operating costs to help recoup purchase costs
Easily install and relocate to meet seasonal or variable location needs
Sales2Comments Off on Brushless Stainless Steel Solar Submersible Pump With Controller – 96V, 800W, 924GPH, 1.25″
Applications
DC Solar submersible pumps are fitted with a permanent magnet, brushless motor, which get the power from the sun, you will never have an electric bill. 4SYBL series solar pump can not only be used for household drinking water, but also for animal husbandry and irrigation of small farms, the pump system offers the perfect water supply solution and living condition could be much improved.
Benefits
Offer great reliability when grid power is irregular or unavailable
Lower operating costs to help recoup purchase costs
Easily install and relocate to meet seasonal or variable location needs
Sales2Comments Off on Brushless Stainless Steel Solar Submersible Pump With Controller – 72V, 600W, 924GPH, 1.25″
Applications
DC Solar submersible pumps are fitted with a permanent magnet, brushless motor, which get the power from the sun, you will never have an electric bill. 4SYBL series solar pump can not only be used for household drinking water, but also for animal husbandry and irrigation of small farms, the pump system offers the perfect water supply solution and living condition could be much improved.
Benefits
Offer great reliability when grid power is irregular or unavailable
Lower operating costs to help recoup purchase costs
Easily install and relocate to meet seasonal or variable location needs
Sales2Comments Off on Brushless Stainless Steel Solar Submersible Pump With Controller – 48V, 400W, 924GPH, 1.25″
Applications
DC Solar submersible pumps are fitted with a permanent magnet, brushless motor, which get the power from the sun, you will never have an electric bill. 4SYBL series solar pump can not only be used for household drinking water, but also for animal husbandry and irrigation of small farms, the pump system offers the perfect water supply solution and living condition could be much improved.
Benefits
Offer great reliability when grid power is irregular or unavailable
Lower operating costs to help recoup purchase costs
Easily install and relocate to meet seasonal or variable location needs

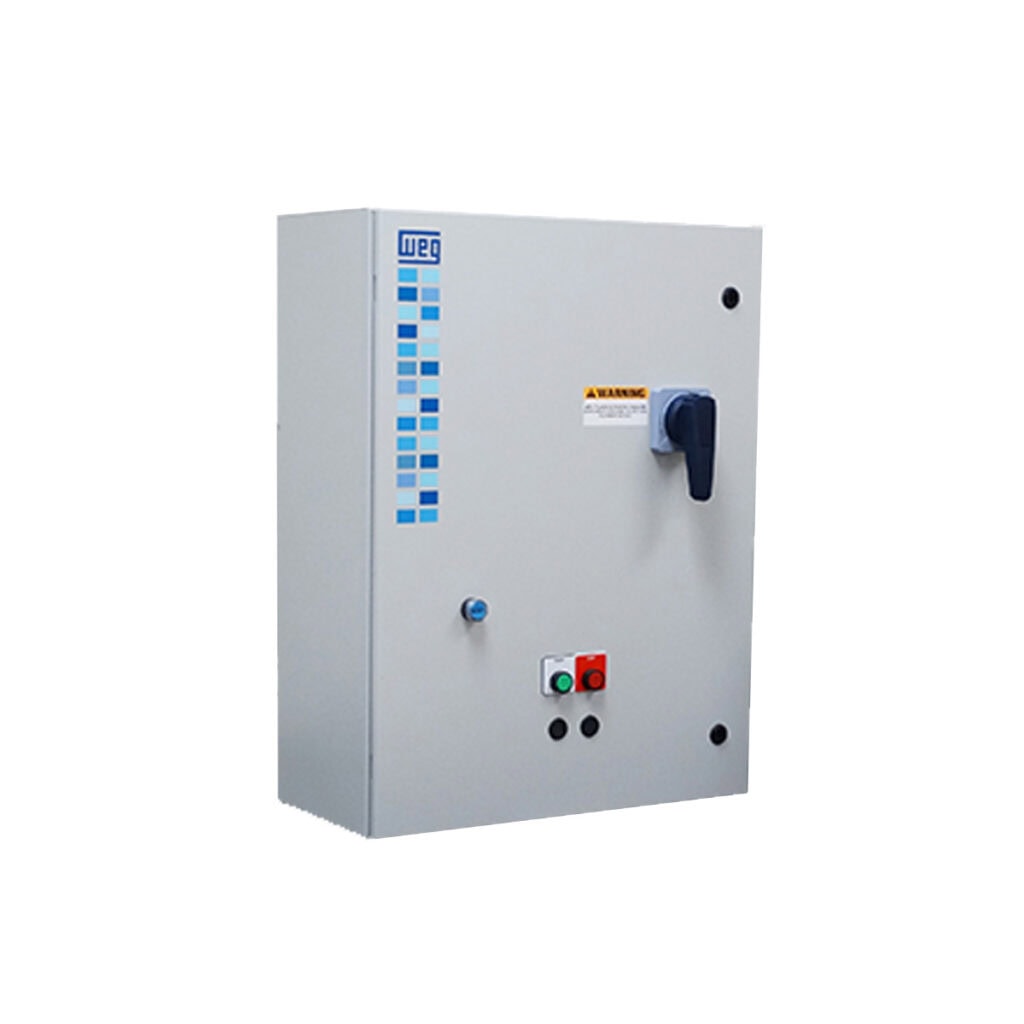

SergioComments Off on WEG Control Panel ESWC Series Combination Starters~ 3PH ~ 460V, 120CV with Transformer – ESWC-38TM1A9-RE4
ESWC Series Enclosed Starters
WEG offers versatile UL508A ESWC series combination starters with solid-state overloads for motor starting and control. These full voltage non-reversing combination starters are available up to 250HP at 460VAC (300A) with control power transformers for three-phase applications.
Technical Data
Model
ESWC-38TM1A9-RE4
Panel type
Across the line
Horsepower (HP)
25HP
Thermal Managment
None
General enclosure options
None
Main voltage
208/230/460 V
Control Voltage
120 V
Frequency
60 Hz
SCCR rating
5 kAIC
Disconnect switch type
Circuit Breaker rotary handle disconnect
Bypass type
None
Control options
Start Pushbutton, Stop Pushbutton and Reset Pushbutton

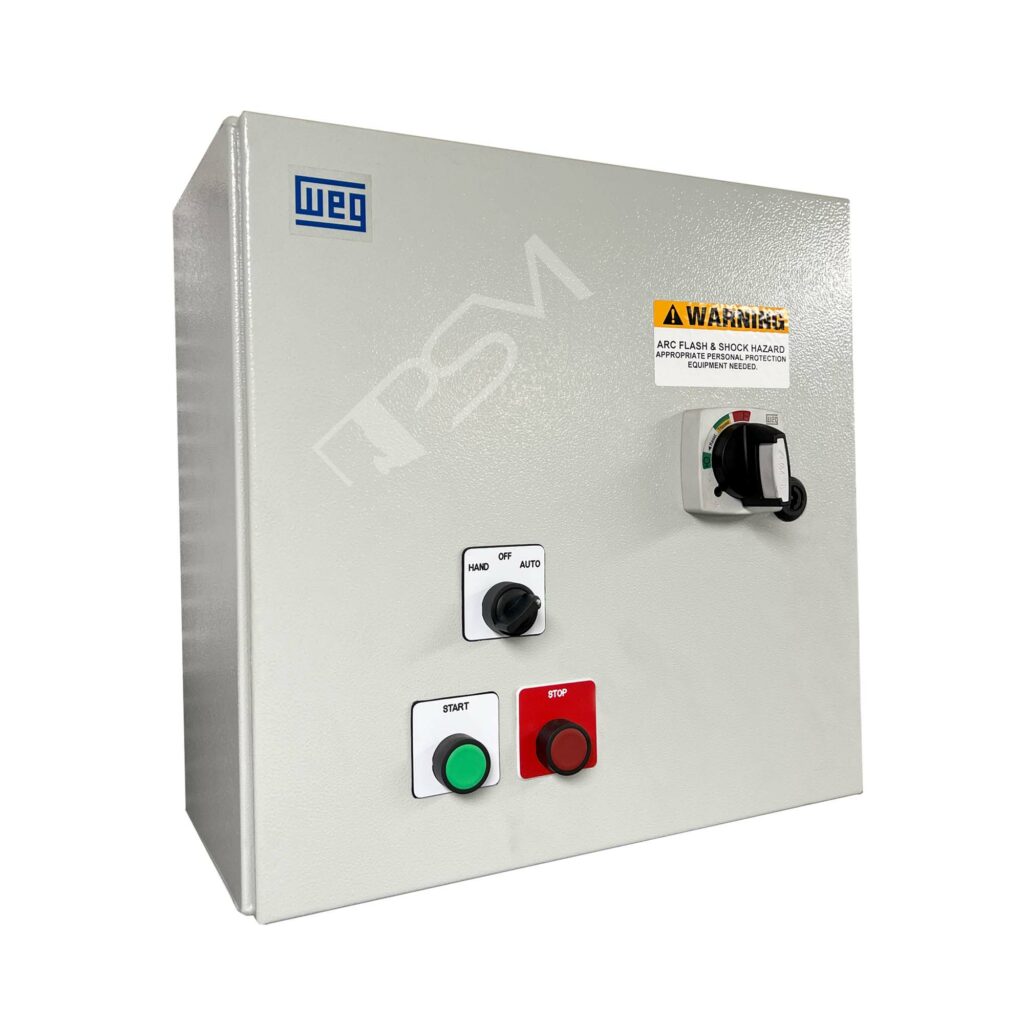

SergioComments Off on WEG CONTROL PANEL ~ (10HP) ~ ESWF Series Combination Starters ~ 460V, ESWF-18V47N3-D11
ESWF Series Combination Starters
High performance and optimized solutions for motor starting and control. WEG offers full voltage non-reversing combination starters, ESWF series, up to 75 HP at 460VAC (105A) with or without control power transformers for three-phase applications.
Technical Data
Model
ESWF-18V47N3-D11
Panel type
Across the line
Bypass type
None
Enclosure type
Wall mount
Enclosure rating
Type 4/12
Thermal Management
None
General enclosure options
None
Disconnect switch type
Circuit Breaker rotary handle disconnect
Horsepower (HP)
10HP
Main voltage
460V
Control Voltage
460V
Frequency
60Hz
SCCR rating
5 kAIC
Control power transformer
No transformer required
Reactor/Filter
None
Communication
None
Control options
Hand/OFF/Auto Selector Switch
Dimensions
Nominal height: 508.0 mm / 20.0 in Nominal width: 406.4 mm / 16.0 in Nominal depth: 203.2 mm / 8.0 in
Certification
UL
Standard Features:
• Single and three-phase voltage supply • Din rail or surface mounting with screws • Voltage range: • 110-127 Vac and 200-240 Vac for single-phase models • 200-240 Vac for three-phase models • Current / Power range: up to 15.2 Amps / 3.7 kW (5 HP) • Control mode: Scalar (V/Hz) or Voltage Vector (VVW) • Switching frequency: 2.5, 5, 10 or 15kHz • Overload capacity: 150% for 60 sec. every 10min, 200% for 3 sec. every 10min. • Degree of protection: IP20 • Operating temperature: 14 • 122°F (50°C); up to 140°F (60°C) with current derating (2% per 1°C above 50°C) • Altitude: 0 • 3300 ft. (1000m); up to 13,200 ft. (4000m) with current derating (1% per100m above 1000m) • Humidity: 5 to 95% non-condensing • Integrated brake chopper for frame size B (not available for size A) • Local keypad supplied as standard
SergioComments Off on WEG Control Panel ~0.5HP~ ESWE Series Combination Starters 3PH ~ 480V, ESWE-B9D15KX-D05
ESWE Series Enclosed Starters
High performance and optimized solutions for motor starting and control. WEG offers full voltage non-reversing combination starters, ESWE series, up to HP at 460VAC (40A) with or without control power transformers for three-phase applications.
Technical Data
Model
ESWE-B9D15KX-D05
Start type
Direct Three-phase
Maximum power rating
Not applicable
Rated operational voltage
Ue<=440V
Control voltage
120V50/60HZ
Control devices
H-O-A+On+Off+Mr+Signal Switch
Degree of protection
TYPE4X
Starters complements
Does not contain
Rated current (AC-3)
9A (CWB9)
Overload relay
0.63-1 A (MPW40)
Measuring tool and accessories
Not applicable
Button type
Unspecified
Button color
Not specified
Connection type
Not applicable
Standard Features:
Standard Enclosure Type: non-metallic 4X
Control Power Transformer: with or without CPT primary 575V – secondary 120V CPT primary 480V/240V – secondary 120V
Branch Disconnect: rotary through-the-door handle
Short-Circuit Protection: manual motor protection
Motor Control: magnetic IEC contactor
Overload Protection: manual motor protection
Standard Control Devices: HAND-OFF-AUTO switch, START and STOP pushbuttons, pilot lights
Custom enclosure and control options available upon request
