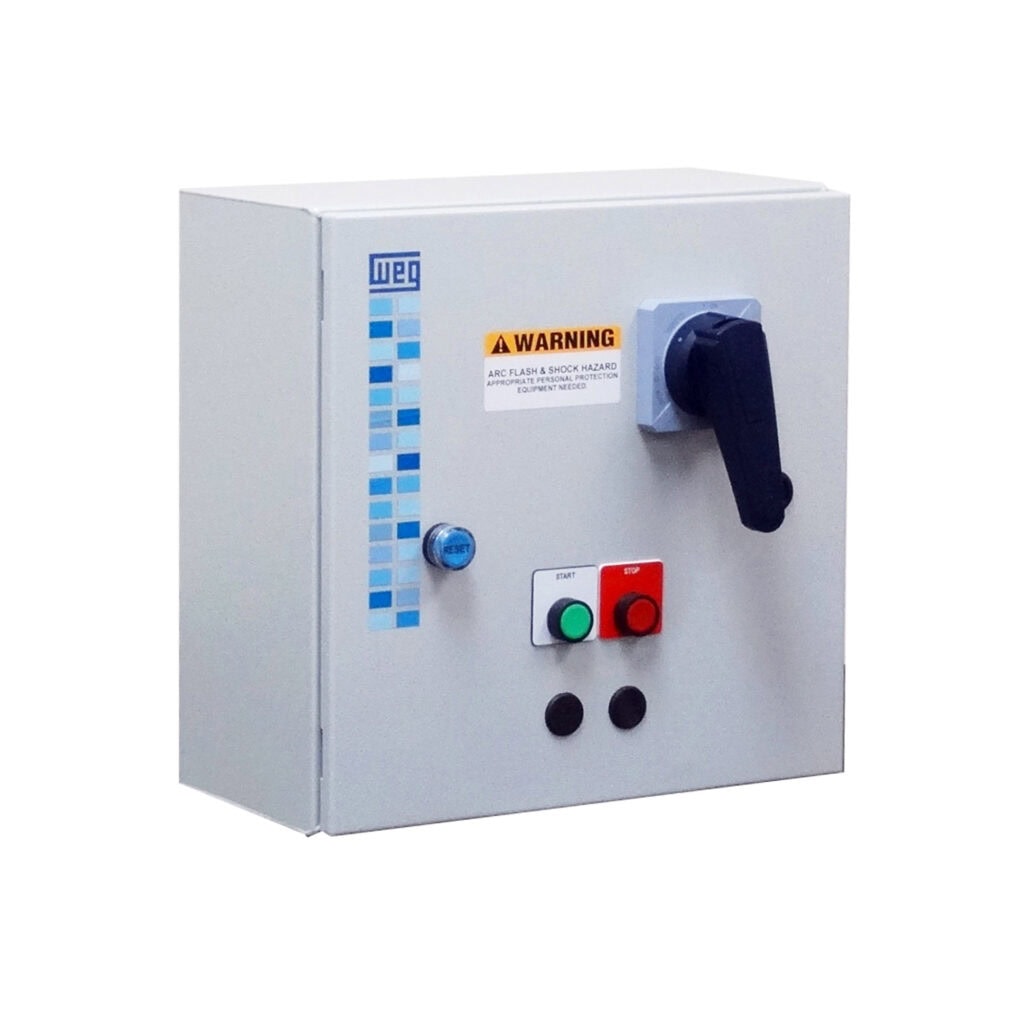

ESWC Series Enclosed Starters
WEG offers versatile UL508A ESWC series combination starters with solid-state overloads for motor starting and control. These full voltage non-reversing combination starters are available up to 250HP at 460VAC (300A) with control power transformers for three-phase applications.
| Technical Data | ||
| Model | ESWC-65TM1K9-RE6 | |
| Panel type | Across the line | |
| Horsepower (HP) | 40HP | |
| Thermal Managment | None | |
| General enclosure options | None | |
| Main voltage | 208/230/460 V | |
| Control Voltage Control power transformer | 120 V with Transformer 100 VA – Open | |
| Frequency | 60 Hz | |
| SCCR rating | 5 kAIC | |
| Disconnect switch type | Circuit Breaker rotary handle disconnect | |
| Bypass type | None | |
| Control options | Start Pushbutton, Stop Pushbutton and Reset Pushbutton | |
| Enclosure rating | Type 3R/4/12 | |
| Certification | UL | |
Standard Features
- Multi-Rated Enclosure Type: 1/3R/4/12;
- Multi-Voltage Transformer: primary 208V/230V/460V – secondary 120V;
- Branch Disconnect: rotary through-the-door handle;
- Short-Circuit Protection: molded case circuit breaker;
- Motor Control: magnetic IEC contactor;
- Overload Protection: solid-state overload relay – Selectable trip class 10, 20, 30 / (5:1) ratio adjustable current setting;
- Standard Control Devices: RESET, START, STOP pushbuttons;
- Custom control options available upon request
