Free Shipping

COELBO Automatic Pump Controller & Adjustable output pressure, 110/220V, 1P, 145 PSI, IP65, Model EPR 1″

Comments Off on COELBO Automatic Pump Controller & Adjustable output pressure, 110/220V, 1P, 145 PSI, IP65, Model EPR 1″

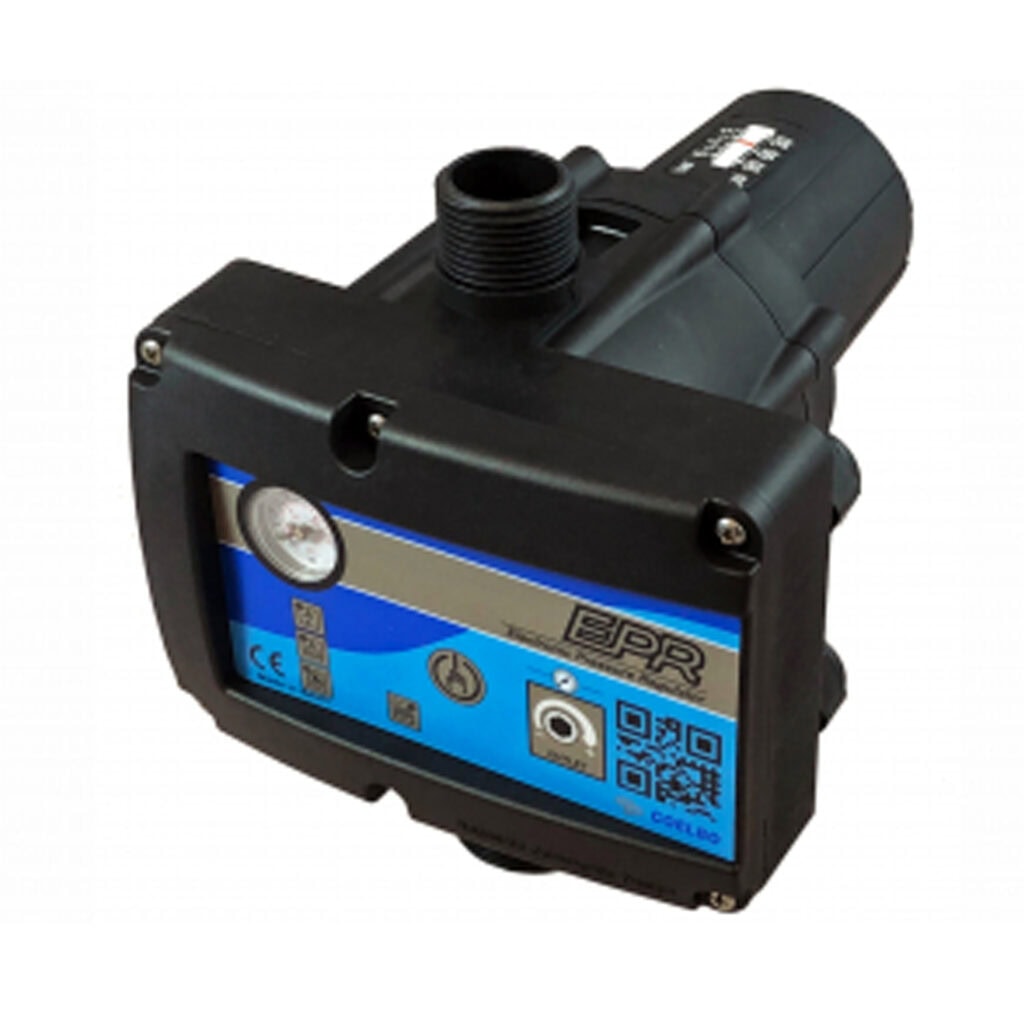

Pump driver with adjustable outlet pressure. Constant pressure.

EPR is a compact device for automatic control and protection of electric pumps up to 2,2 kW (3 HP), multi-voltage (110-230 V) and equipped with an innovative outlet pressure reducing/regulating system.
Therefore, in addition to the typical characteristics of traditional electronic pump controllers: integrated non-return valve, accumulation diaphragm, pressure gauge, dry-running protection, automatic reset, it allows to adjust and stabilize the outlet pressure, avoiding overloads, water hammer and, ultimately, improving end user comfort.

Made in Spain

Continue Reading

COELBO Automatic Pump Pressure and flow Controller, 110/220V, 1P, 145 PSI, IP65, Model COMPACT 2

Comments Off on COELBO Automatic Pump Pressure and flow Controller, 110/220V, 1P, 145 PSI, IP65, Model COMPACT 2

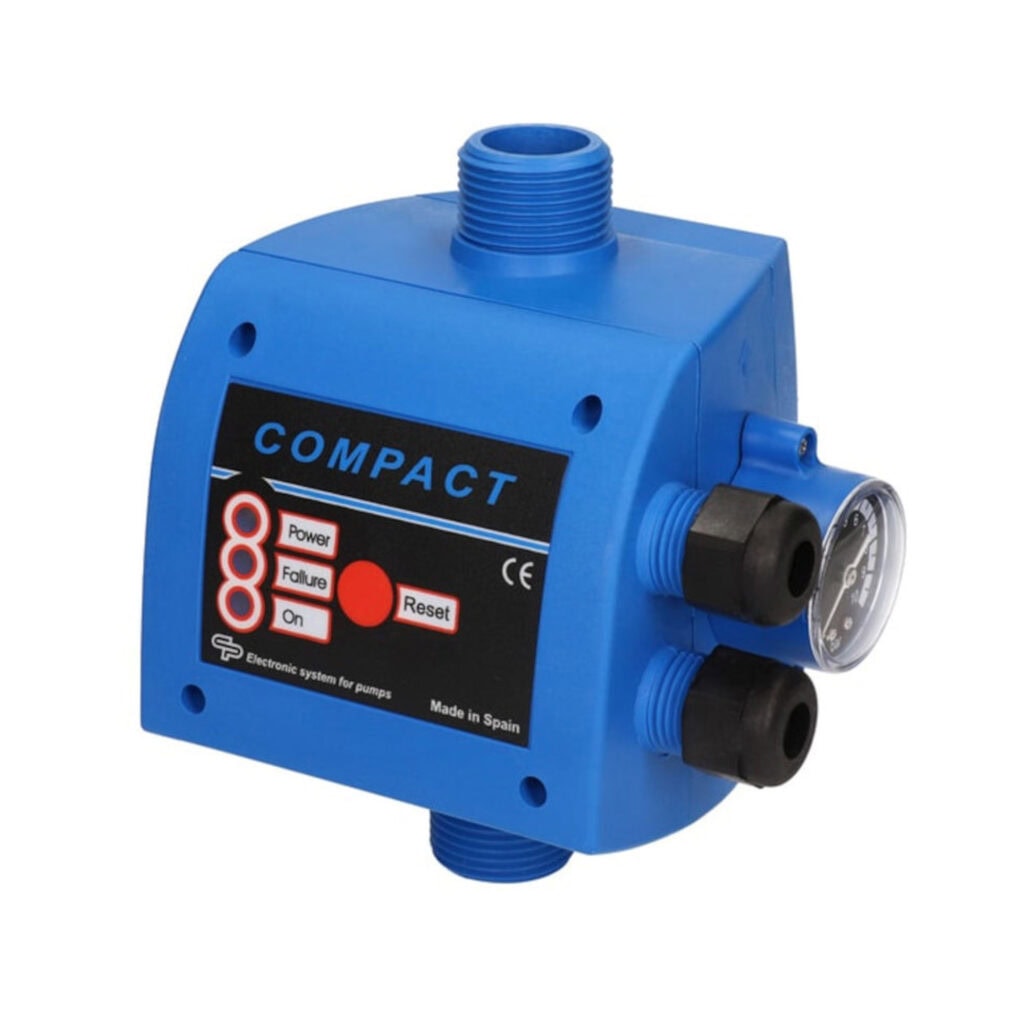

Automatic Device for electric pump integral control.
COMPACT 2 is compact device for the automatic control and protection of electric pumps, its patented system includes special electronic sensor of flow and pressure, integrated in electronic circuit that guides the electric pump operation and keeps pressure and flow accordingly. Moreover, it has a safety system to avoid the dry-running operation.
COMPACT 2 replaces traditional systems of hydrosphere, pressure-switch, check-valve and level switches, with the advantage of smaller dimensions and avoiding periodic maintenance. These units automatically start the electric pump when any point of use is open and stop it –after a 10 seconds programmed time– when closing the consumption point.

Made in Spain

Continue Reading
vertical multistage pumps
Free Shipping

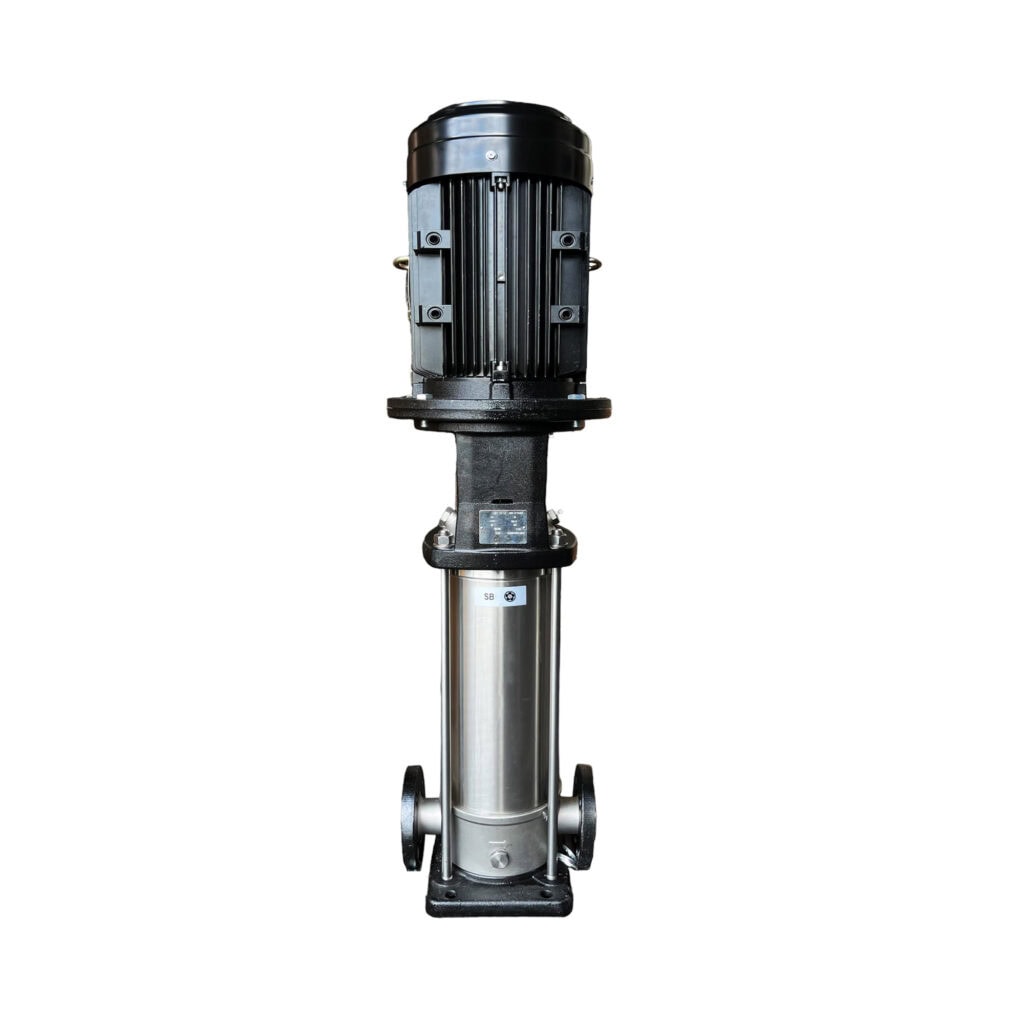

Vertical Multistage Centrifugal Pump, 60HP, 27000GPH, 460V, 3PHASE, Model GSBN 64-5-2, SS316

Comments Off on Vertical Multistage Centrifugal Pump, 60HP, 27000GPH, 460V, 3PHASE, Model GSBN 64-5-2, SS316

The SBN (Stainless Steel 316) pumps are non-self priming vertical multistage pump of in-line design, flange or with Victaulic coupling with equally sized suction and discharge ports. Stage construction with stainless steel impellers, chambers and pressure casing. Pump stub shaft and motor shaft of the IEC-standards motor are directly close coupled. All pumps are equipped with a cartridge type mechanical seal for easy maintenance.
SB, SBN pumps have different pump sizes and various numbers of stages to provide the flow and the pressure required.



Applications

WATER SUPPLY AND PRESSURE BOOSTING

  • Pressure boosting in buildings, hotels, residential complexes
  • Pressure booster stations, supply of water networks
  • Pressure boosting for industrial water supply

IRRIGATION AND AGRICULTURE

  • Greenhouses
  • Sprinkler irrigation
  • Field irrigation (flooding)

LIGHT INDUSTRY

  • Washing and cleaning systems
  • Car washing facilities
  • Fire fighting systems
  • Process water systems
  • Machine tools (cooling lubricants)

WATER TREATMENT

  • Water softeners and de-mineralization Reverse Osmosis systems
  • Distillation systems
  • Filtration
  • Ultra-filtration systems

HEATING, VENTILATION AND AIR-CONDITIONING

  • Boilers
  • Induction heating
  • Heat exchangers
  • Refrigerators
  • Cooling towers and systems
  • Temperature control systems

Continue Reading
Free Shipping

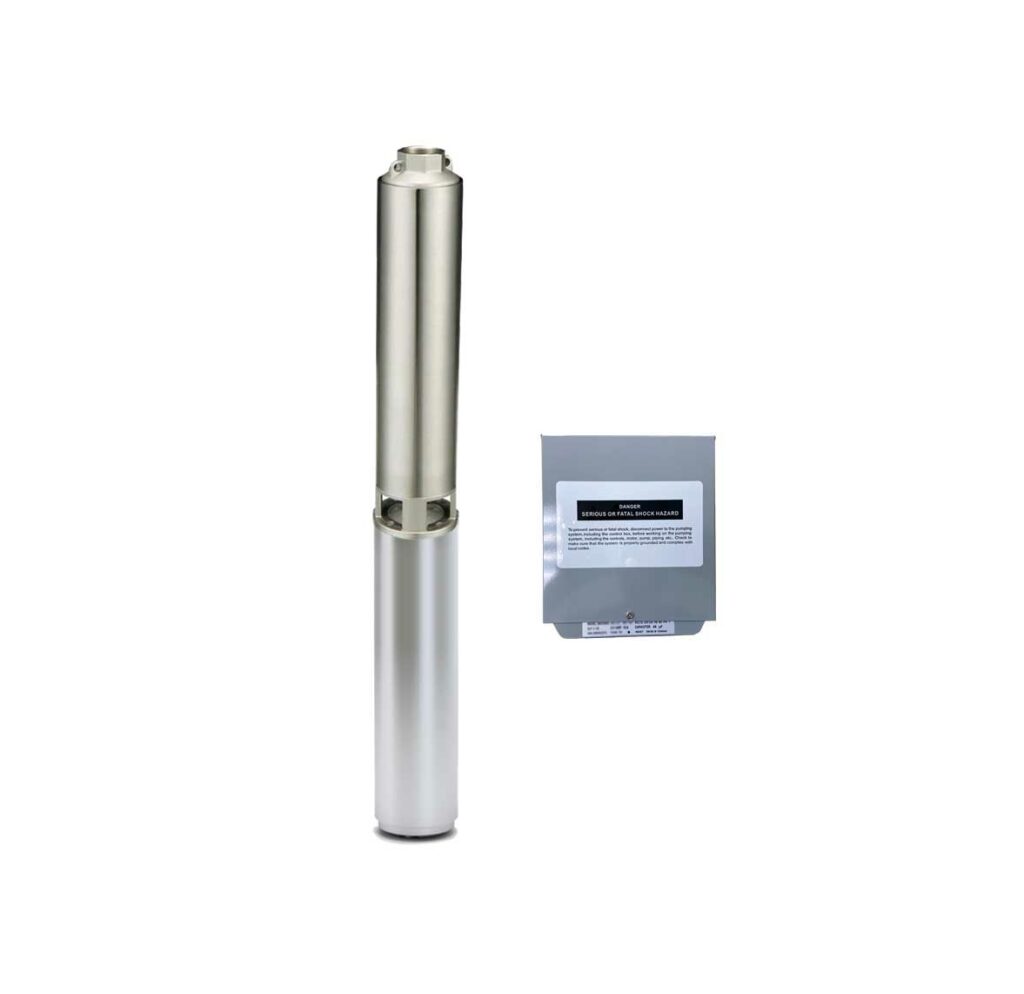

5HP SUBMERSIBLE 230V – 1P MOTOR 47GPM DEEP WELL WATER PUMP – 4″ – 656ft Motor with Splice kit

Comments Off on 5HP SUBMERSIBLE 230V – 1P MOTOR 47GPM DEEP WELL WATER PUMP – 4″ – 656ft Motor with Splice kit

GolPumps’ Encapsulated-resin filled motor is developed with market expectation to meet the robust construction and stringent requirement, which is for 4” or larger well. The motor is 100% tested before shipment.

Pump Spec

  • Max Head(ft): 656
  • Max Flow(Gpm):  48
  • Discharge: 2″
  • HP: 5
  • Pump Material: Noryl
  • Pump Model: ST 3522

Product Advantages

  • Hermetically sealed stator, anti-track, stator resin filled prevent motor burn out.
  • High efficiency provides operation cost savings Thrust pad.
  • Copper wiring.
  • Pressure equalizing diaphragm.
  • Removable lead connector.
  • Control boxes available for single phase motor Standard NEMA mounting dimensions.

Technical Specifications

  • Upper bracket: Cataphoresis treated cast iron plus SS304 cover cap.
  • Max. Immersion depth: 985 ft.
  • Protection: IP68.
  • Nos. of start per hour: max 20 at regular intervals.
  • Sand slinger and lip seal.
  • Insulation: Class F.
  • Rated ambient temperature: 86°F with min.
  • Cooling flow 0.08 m/s of water flow speed.
  • Standard installation position: vertical and horizontal.



*(Includes wire splice kit)

Continue Reading
Free Shipping

5HP SUBMERSIBLE 460V – 3P MOTOR 18.5GPM DEEP WELL WATER PUMP – 4″ – 1112ft Motor with Splice kit

Comments Off on 5HP SUBMERSIBLE 460V – 3P MOTOR 18.5GPM DEEP WELL WATER PUMP – 4″ – 1112ft Motor with Splice kit

Gol Pumps’ Encapsulated-resin filled motor is developed with market expectation to meet the robust construction and stringent requirement, which is for 4” or larger well. The motor is 100% tested before shipment.

Pump Spec

  • Max Head(ft): 1112
  • Max Flow(Gpm):  17.5
  • Discharge: 1 1/4″
  • HP: 5
  • Pump Material: Noryl
  • Pump Model: ST 1034

Product Advantages

  • Hermetically sealed stator, anti-track, stator resin filled prevent motor burn out.
  • High efficiency provides operation cost savings Thrust pad.
  • Copper wiring.
  • Pressure equalizing diaphragm.
  • Removable lead connector.
  • Control boxes available for single phase motor Standard NEMA mounting dimensions.

Technical Specifications

  • Upper bracket: Cataphoresis treated cast iron plus SS304 cover cap.
  • Max. Immersion depth: 985 ft.
  • Protection: IP68.
  • Nos. of start per hour: max 20 at regular intervals.
  • Sand slinger and lip seal.
  • Insulation: Class F.
  • Rated ambient temperature: 86°F with min.
  • Cooling flow 0.08 m/s of water flow speed.
  • Standard installation position: vertical and horizontal.



*(Includes wire splice kit)

Continue Reading
Free Shipping

4HP SUBMERSIBLE 460V – 3P MOTOR 53GPM DEEP WELL WATER PUMP – 4″ – 325ft Motor with Splice kit

Comments Off on 4HP SUBMERSIBLE 460V – 3P MOTOR 53GPM DEEP WELL WATER PUMP – 4″ – 325ft Motor with Splice kit

GolPumps’ Encapsulated-resin filled motor is developed with market expectation to meet the robust construction and stringent requirement, which is for 4” or larger well. The motor is 100% tested before shipment.

Product Advantages

  • Hermetically sealed stator, anti-track, stator resin filled prevent motor burn out.
  • High efficiency provides operation cost savings Thrust pad
  • Copper wiring.
  • Pressure equalizing diaphragm.
  • Removable lead connector.
  • Control boxes available for single phase motor Standard NEMA mounting dimensions.

Technical Specifications

  • Upper bracket: Cataphoresis treated cast iron plus SS304 cover cap.
  • Protection: IP68.
  • Nos. of start per hour: max 20 at regular intervals.
  • Sand slinger and lip seal.
  • Insulation: Class F.
  • Rated ambient temperature: 86°C with min.
  • Cooling flow 0.08 m/s of water flow speed.
  • Standard installation position: vertical and horizontal.

Pump Spec

  • Max Head(ft): 331
  • Max Flow(Gpm): 53
  • Discharge: 2″
  • HP: 4
  • Pump Material: Stainless Steel 304
  • Pump Model: SP 4012



*(Includes wire splice kit)

Continue Reading
Free Shipping

5HP SUBMERSIBLE 460V – 3P MOTOR 121GPM DEEP WELL WATER PUMP – 4″ – 200ft max head Motor with Splice kit

Comments Off on 5HP SUBMERSIBLE 460V – 3P MOTOR 121GPM DEEP WELL WATER PUMP – 4″ – 200ft max head Motor with Splice kit

GolPumps’ Encapsulated-resin filled motor is developed with market expectation to meet the robust construction and stringent requirement, which is for 4” or larger well. The motor is 100% tested before shipment.

Pump Spec

  • Max Head(ft): 410
  • Max Flow(Gpm):  125
  • Discharge: 2″
  • HP: 5
  • Pump Material: Noryl
  • Pump Model: ST 8007

Product Advantages

  • Hermetically sealed stator, anti-track, stator resin filled prevent motor burn out.
  • High efficiency provides operation cost savings Thrust pad.
  • Copper wiring.
  • Pressure equalizing diaphragm.
  • Removable lead connector.
  • Control boxes available for single phase motor Standard NEMA mounting dimensions.

Technical Specifications

  • Upper bracket: Cataphoresis treated cast iron plus SS304 cover cap.
  • Max. Immersion depth: 985 ft.
  • Protection: IP68.
  • Nos. of start per hour: max 20 at regular intervals.
  • Sand slinger and lip seal.
  • Insulation: Class F.
  • Rated ambient temperature: 86°F with min.
  • Cooling flow 0.08 m/s of water flow speed.
  • Standard installation position: vertical and horizontal.



*(Includes wire splice kit)

Continue Reading
Free Shipping

3HP SUBMERSIBLE 460V – 3P MOTOR 13GPM DEEP WELL WATER PUMP – 4″ – 1043ft Motor with Splice kit

Comments Off on 3HP SUBMERSIBLE 460V – 3P MOTOR 13GPM DEEP WELL WATER PUMP – 4″ – 1043ft Motor with Splice kit

Gol Pumps’ Encapsulated-resin filled motor is developed with market expectation to meet the robust construction and stringent requirement, which is for 4” or larger well. The motor is 100% tested before shipment.

Pump Spec

  • Max Head(ft): 1043
  • Max Flow(Gpm):  13
  • Discharge: 1 1/4″
  • HP: 3
  • Pump Material: Noryl
  • Pump Model: ST 0734

Product Advantages

  • Hermetically sealed stator, anti-track, stator resin filled prevent motor burn out.
  • High efficiency provides operation cost savings Thrust pad.
  • Copper wiring.
  • Pressure equalizing diaphragm.
  • Removable lead connector.
  • Control boxes available for single phase motor Standard NEMA mounting dimensions.

Technical Specifications

  • Upper bracket: Cataphoresis treated cast iron plus SS304 cover cap.
  • Max. Immersion depth: 985 ft.
  • Protection: IP68.
  • Nos. of start per hour: max 20 at regular intervals.
  • Sand slinger and lip seal.
  • Insulation: Class F.
  • Rated ambient temperature: 86°F with min.
  • Cooling flow 0.08 m/s of water flow speed.
  • Standard installation position: vertical and horizontal.



*(Includes wire splice kit)

Continue Reading
Free Shipping

3HP SUBMERSIBLE 460V – 3P MOTOR 92GPM DEEP WELL WATER PUMP – 4″ – 158ft Motor with Splice kit

Comments Off on 3HP SUBMERSIBLE 460V – 3P MOTOR 92GPM DEEP WELL WATER PUMP – 4″ – 158ft Motor with Splice kit

Gol Pumps’ Encapsulated-resin filled motor is developed with market expectation to meet the robust construction and stringent requirement, which is for 4” or larger well. The motor is 100% tested before shipment.

Product Advantages

  • Hermetically sealed stator, anti-track, stator resin filled prevent motor burn out.
  • High efficiency provides operation cost savings Thrust pad
  • Copper wiring.
  • Pressure equalizing diaphragm.
  • Removable lead connector.
  • Control boxes available for single phase motor Standard NEMA mounting dimensions.

Technical Specifications

  • Upper bracket: Cataphoresis treated cast iron plus SS304 cover cap.
  • Protection: IP68.
  • Nos. of start per hour: max 20 at regular intervals.
  • Sand slinger and lip seal.
  • Insulation: Class F.
  • Rated ambient temperature: 86°C with min.
  • Cooling flow 0.08 m/s of water flow speed.
  • Standard installation position: vertical and horizontal.

Pump Spec

  • Max Head(ft): 158
  • Max Flow(Gpm):  92
  • Discharge: 2″
  • HP: 3
  • Pump Material: Stainless Steel 304
  • Pump Model: SP 7005



*(Includes wire splice kit)

Continue Reading
Free Shipping

3HP SUBMERSIBLE 460V – 3P MOTOR 53GPM DEEP WELL WATER PUMP – 4″ – 250ft Motor with Splice kit

Comments Off on 3HP SUBMERSIBLE 460V – 3P MOTOR 53GPM DEEP WELL WATER PUMP – 4″ – 250ft Motor with Splice kit

GolPumps’ Encapsulated-resin filled motor is developed with market expectation to meet the robust construction and stringent requirement, which is for 4” or larger well. The motor is 100% tested before shipment.

Product Advantages

  • Hermetically sealed stator, anti-track, stator resin filled prevent motor burn out.
  • High efficiency provides operation cost savings Thrust pad
  • Copper wiring.
  • Pressure equalizing diaphragm.
  • Removable lead connector.
  • Control boxes available for single phase motor Standard NEMA mounting dimensions.

Technical Specifications

  • Upper bracket: Cataphoresis treated cast iron plus SS304 cover cap.
  • Protection: IP68.
  • Nos. of start per hour: max 20 at regular intervals.
  • Sand slinger and lip seal.
  • Insulation: Class F.
  • Rated ambient temperature: 86°C with min.
  • Cooling flow 0.08 m/s of water flow speed.
  • Standard installation position: vertical and horizontal.

Pump Spec

  • Max Head(ft): 250
  • Max Flow(Gpm): 53
  • Discharge: 2″
  • HP: 3
  • Pump Material: Stainless Steel 304
  • Pump Model: SP 4009



*(Includes wire splice kit)

Continue Reading
