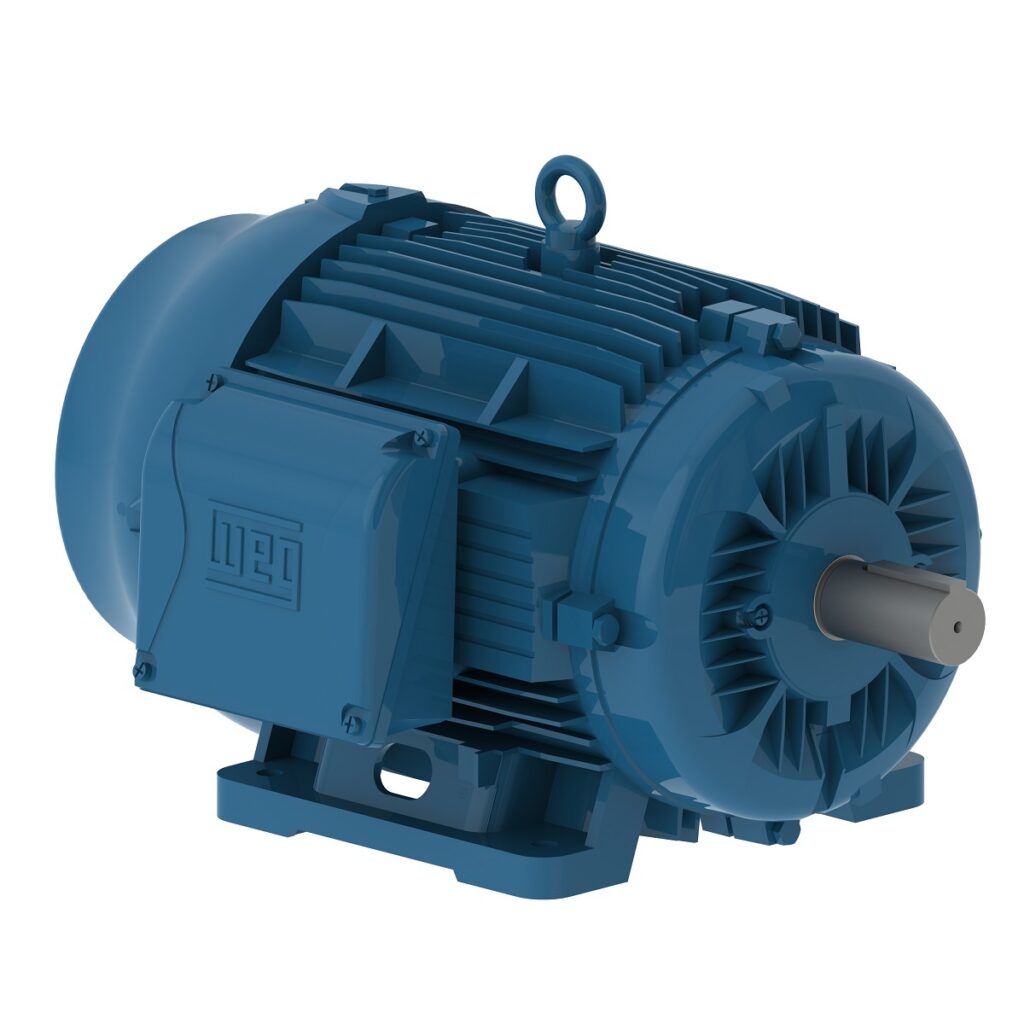

With cast iron frame, flexible mounting, solid and whole feet, and lower noise levels and operating temperatures, the W22 motors are perfectly suitable for a great variety of industrial applications.
| Standard | NEMA MG-1 |
|---|---|
| Frequency | 60 Hz |
| Voltage | 230/460V |
| Number of poles | 2 |
| Degree of Protection | IP55 |
| Synchronous speed | 3600 rpm |
| Output rating | 25 HP |
| Flange | Without |
| Mounting | F-1 |
| Terminal box | Left position |
| Enclosure | IC411 – TEFC |
Gol Pumps’ Encapsulated-resin filled motor is developed with market expectation to meet the robust construction and stringent requirement, which is for 4” or larger well. The motor is 100% tested before shipment.
*(Includes wire splice kit)
Made in Italy Taiwan

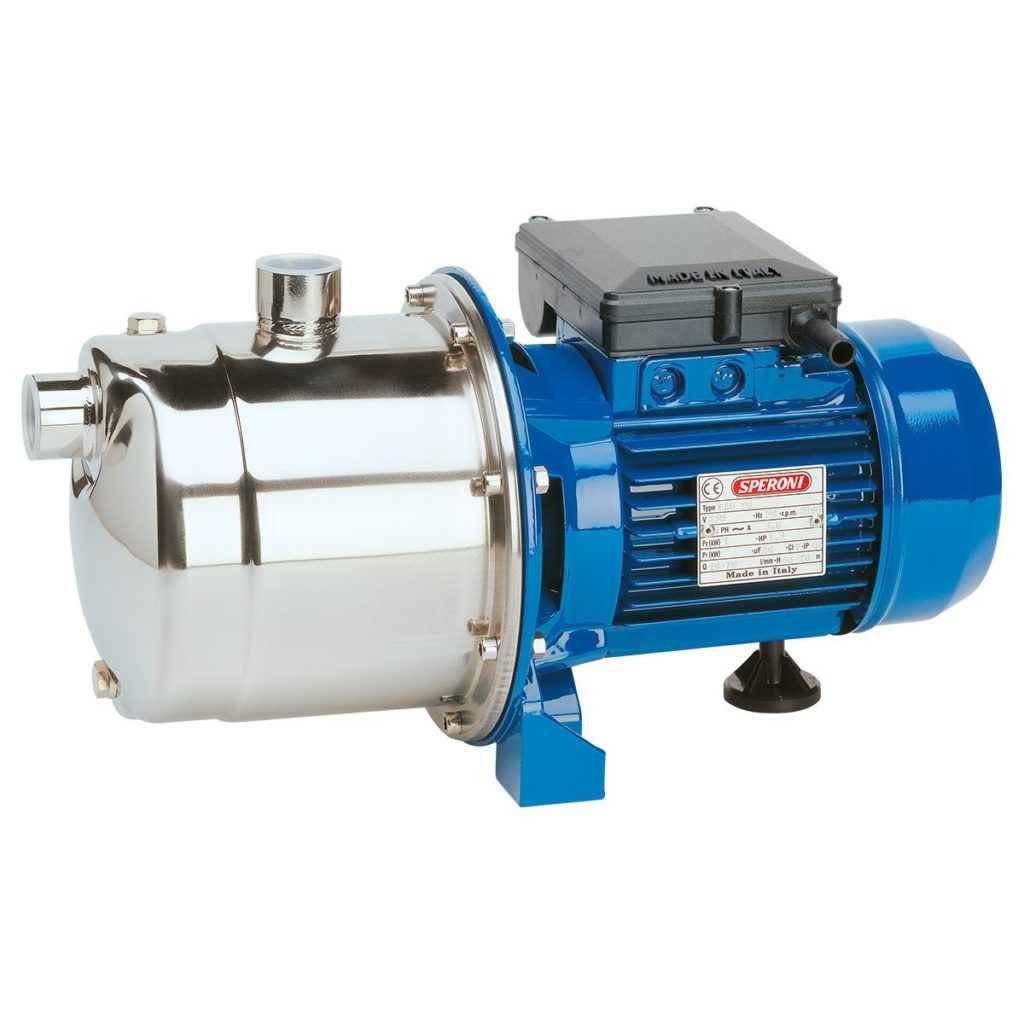

Selfpriming shallow well jet water pumps with a very high hydraulic performance and a considerable pressure capacity. Able to pump up to 26 ft. depth and work perfectly even in soda water. Suitable for water lifting and distribution in domestic fittings by small and medium sized tanks.
Brand: SPERONI
MADE IN ITALY
Estimated Delivery Time: 3 – 5 Business Days

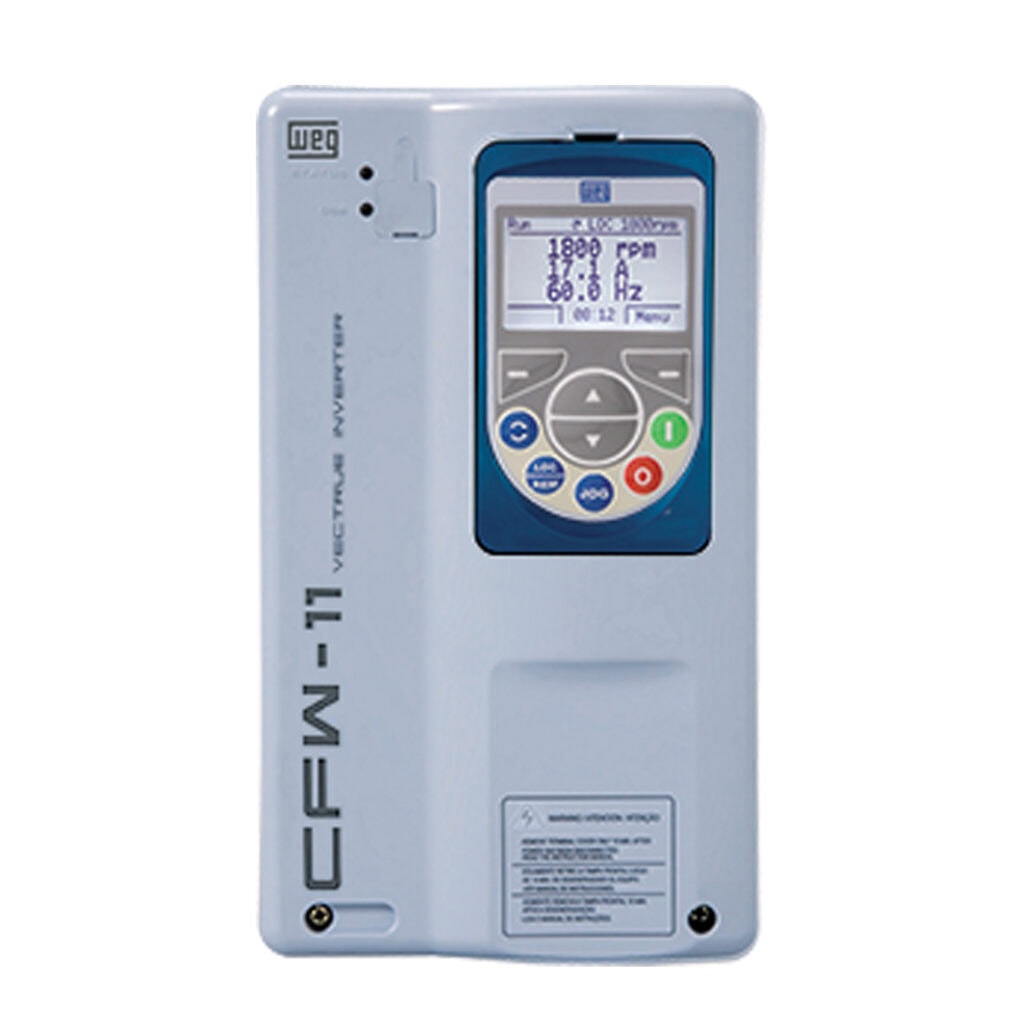

The CFW11 is a system drive designed for the control of squirrel cage induction motors as well as permanent magnet motors. Since it was developed for running on Normal and Heavy Duty mode, a wide variety of applications can be achieved. Designed for exclusively industrial or professional use, it provides increased productivity with excellent performance and quality improvement of the process in which it is used.
Its vast range of functions, easy configuration, installation and operation, in addition to the versions for electrical and modular panel mounting, make the CFW11 suitable for applications in different sectors of the industry.
Technical Data
High performance and optimized solutions for motor starting and control. WEG offers full voltage non-reversing combination starters, ESWF series, up to 75 HP at 460VAC (105A) with or without control power transformers for three-phase applications.
| Technical Data | ||
| Model | ESWF-80T04N4-D21 | |
| Panel type | Across the line | |
| Bypass type | None | |
| Enclosure type | Wall mount | |
| Enclosure rating | Type 4/12 | |
| Thermal Management | None | |
| General enclosure options | None | |
| Disconnect switch type | Circuit Breaker rotary handle disconnect | |
| Horsepower (HP) | 40HP | |
| Main voltage | 460V | |
| Control Voltage | 120V | |
| Frequency | 60Hz | |
| SCCR rating | 5 kAIC | |
| Control power transformer | No transformer required | |
| Reactor/Filter | None | |
| Communication | None | |
| Control options | Hand/OFF/Auto Selector Switch | |
| Dimensions | Nominal height: 406.4 mm / 16.0 in Nominal width: 304.8 mm / 12.0 in Nominal depth: 203.2 mm / 8.0 in | |
| Certification | UL | |
Technical Data
High performance and optimized solutions for motor starting and control. WEG offers full voltage non-reversing combination starters, ESWF series, up to 75 HP at 460VAC (105A) with or without control power transformers for three-phase applications.
| Technical Data | ||
| Model | ESWF-80V24N4-D21 | |
| Panel type | Across the line | |
| Bypass type | None | |
| Enclosure type | Wall mount | |
| Enclosure rating | Type 4/12 | |
| Thermal Management | None | |
| General enclosure options | None | |
| Disconnect switch type | Circuit Breaker rotary handle disconnect | |
| Horsepower (HP) | 20HP | |
| Main voltage | 230V | |
| Control Voltage | 230V | |
| Frequency | 60Hz | |
| SCCR rating | 5 kAIC | |
| Control power transformer | No transformer required | |
| Reactor/Filter | None | |
| Communication | None | |
| Control options | Hand/OFF/Auto Selector Switch | |
| Dimensions | Nominal height: 406.4 mm / 16.0 in Nominal width: 304.8 mm / 12.0 in Nominal depth: 203.2 mm / 8.0 in | |
| Certification | UL | |
Technical Data
High performance and optimized solutions for motor starting and control. WEG offers full voltage non-reversing combination starters, ESWF series, up to 75 HP at 460VAC (105A) with or without control power transformers for three-phase applications.
| Technical Data | ||
| Model | ESWF-65T04N4-D20 | |
| Panel type | Across the line | |
| Bypass type | None | |
| Enclosure type | Wall mount | |
| Enclosure rating | Type 4/12 | |
| Thermal Management | None | |
| General enclosure options | None | |
| Disconnect switch type | Circuit Breaker rotary handle disconnect | |
| Horsepower (HP) | 30HP | |
| Main voltage | 460V | |
| Control Voltage | 120V | |
| Frequency | 60Hz | |
| SCCR rating | 5 kAIC | |
| Control power transformer | 100 VA – Open | |
| Reactor/Filter | None | |
| Communication | None | |
| Control options | Hand/OFF/Auto Selector Switch | |
| Dimensions | Nominal height: 406.4 mm / 16.0 in Nominal width: 304.8 mm / 12.0 in Nominal depth: 203.2 mm / 8.0 in | |
| Certification | UL | |
Technical Data
High performance, optimized solutions for motor starting and control. WEG offers full voltage non-reversing and non-combination magnetic starters, PESW series, up to 9HP at 460VAC (105A) for three-phase applications and up to 10HP at 230VAC (50A) for single-phase applications.
| Technical Data | ||
| Model | PESW-B9D45AX-R63 | |
| Start type | Direct Three-phase | |
| Maximum power rating | Not applicable | |
| Rated operational voltage | Ue<=600V | |
| Control voltage | 600V50/60Hz | |
| Control devices | A-On-Off Button | |
| Degree of protection | TYPE4X | |
| Starters complements | Does not contain | |
| Rated current (AC-3) | 9A (CWB9) | |
| Overload relay | 7-10 A (RW27) | |
| Measuring tool and accessories | Not applicable | |
| Button type | Unspecified | |
| Button color | Not specified | |
| Connection type | Not applicable | |
Catalog User Manual
High performance, optimized solutions for motor starting and control. WEG offers full voltage non-reversing and non-combination magnetic starters, PESW series, up to 75HP at 460VAC (105A) for three-phase applications and up to 10HP at 230VAC (50A) for single-phase applications.
| Technical Data | ||
| Model | PESW-B38V24AX-R69 | |
| Start type | Direct Three-phase | |
| Maximum power rating | Not applicable | |
| Rated operational voltage | Ue<=600V | |
| Control voltage | 180-208V 50HZ/208-240V 60HZ | |
| Control devices | A-On-Off Button | |
| Degree of protection | TYPE4X | |
| Starters complements | Does not contain | |
| Rated current (AC-3) | 38A (CWB38) | |
| Overload relay | 32 – 40A (RW27) | |
| Measuring tool and accessories | Not applicable | |
| Button type | Unspecified | |
| Button color | Not specified | |
| Connection type | Not applicable | |
Catalog User Manual
High performance, optimized solutions for motor starting and control. WEG offers full voltage non-reversing and non-combination magnetic starters, PESW series, up to 75HP at 460VAC (105A) for three-phase applications and up to 10HP at 230VAC (50A) for single-phase applications.
| Technical Data | ||
| Model | PESW-B25D39AX-R67 | |
| Start type | Direct Three-phase | |
| Maximum power rating | Not applicable | |
| Rated operational voltage | Ue<=600V | |
| Control voltage | 480V 50/60HZ | |
| Control devices | A-On-Off Button | |
| Degree of protection | TYPE4X | |
| Starters complements | Does not contain | |
| Rated current (AC-3) | 25A (CWB25) | |
| Overload relay | 15 – 23A (RW27) | |
| Measuring tool and accessories | Not applicable | |
| Button type | Unspecified | |
| Button color | Not specified | |
| Connection type | Not applicable | |
Catalog User Manual
