Free Shipping

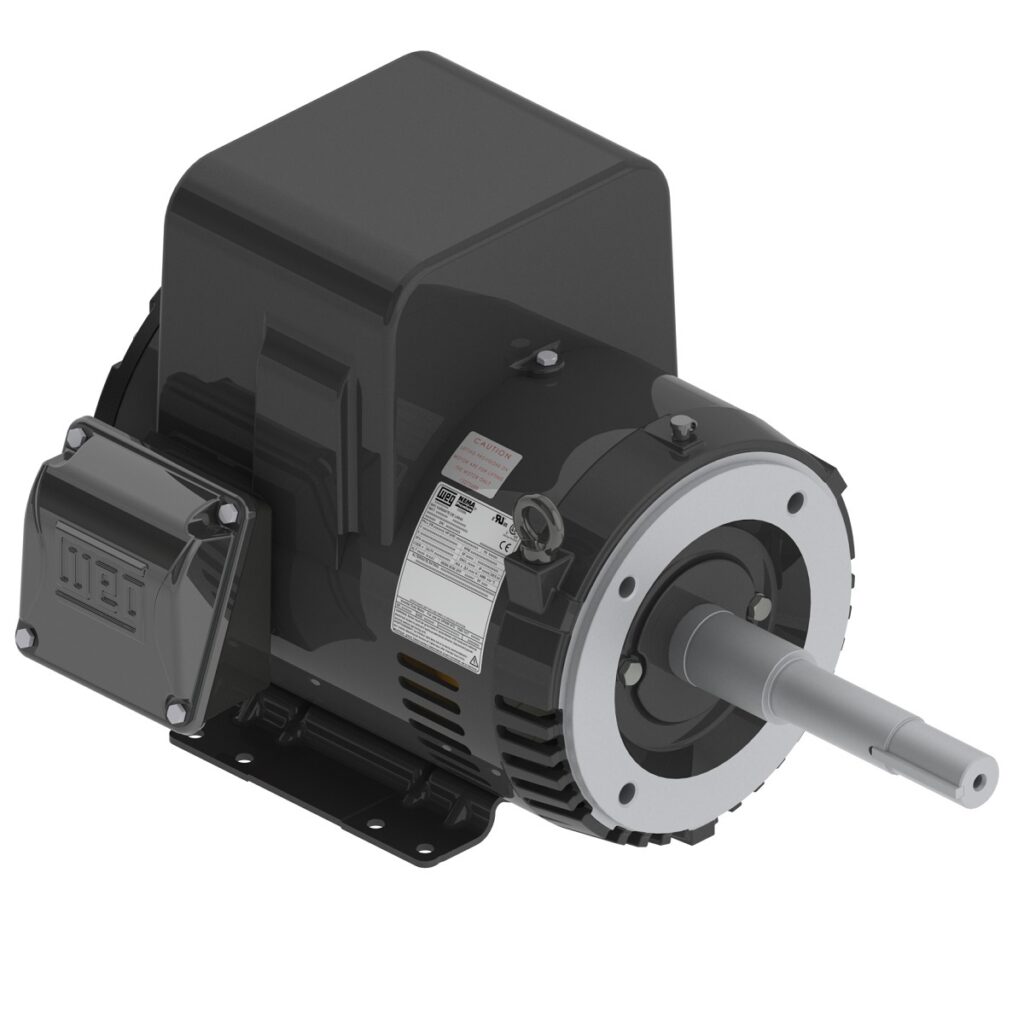

WEG Rolled Steel Motor – 3HP, 115/230V – 1Ph, 60 Hz, 3510RPM, ODP, Foot-mounted, Model 00336OS1B182JP-S

Comments Off on WEG Rolled Steel Motor – 3HP, 115/230V – 1Ph, 60 Hz, 3510RPM, ODP, Foot-mounted, Model 00336OS1B182JP-S

The Rolled Steel motors line were developed for applications that demand performance, robustness and low weight integrated into a single product. The electrical and mechanical concept of the line make the motor present an optimum cost-benefit, providing reliability and energy savings.

Product Features

StandardNEMA MG-1
Frequency60 Hz
Voltage115/208-230
Number of poles2
Degree of protectionIP55
Synchronous speed3600 rpm
Output rating3 HP
FlangeC
MountingF-1
Terminal boxLeft position
EnclosureIC01 – ODP

Continue Reading
Free Shipping

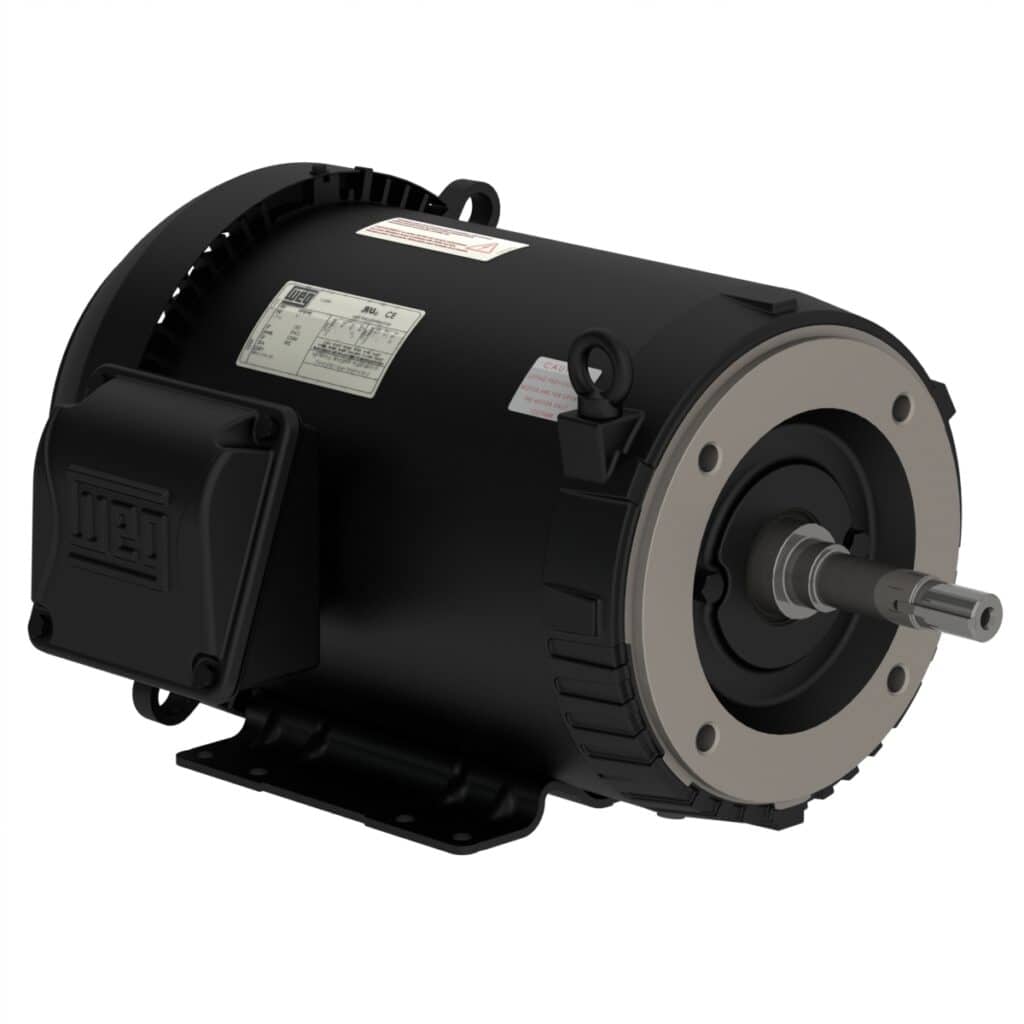

WEG Rolled Steel Motor – 20HP, 230/460V – 3Ph, 60 Hz, 3515RPM, TEFC, Foot-mounted, Model 02036ET3E256JM-S

Comments Off on WEG Rolled Steel Motor – 20HP, 230/460V – 3Ph, 60 Hz, 3515RPM, TEFC, Foot-mounted, Model 02036ET3E256JM-S

The Rolled Steel motors line were developed for applications that demand performance, robustness and low weight integrated into a single product. The electrical and mechanical concept of the line make the motor present an optimum cost-benefit, providing reliability and energy savings.

Product Features

StandardNEMA MG-1
Frequency60 Hz
Voltage230/460
Number of poles2
Degree of protectionIP55
Synchronous speed3600 rpm
Output rating20 HP
FlangeC
MountingF-1
Terminal boxLeft position
EnclosureIC411 – TEFC

Continue Reading
Free Shipping

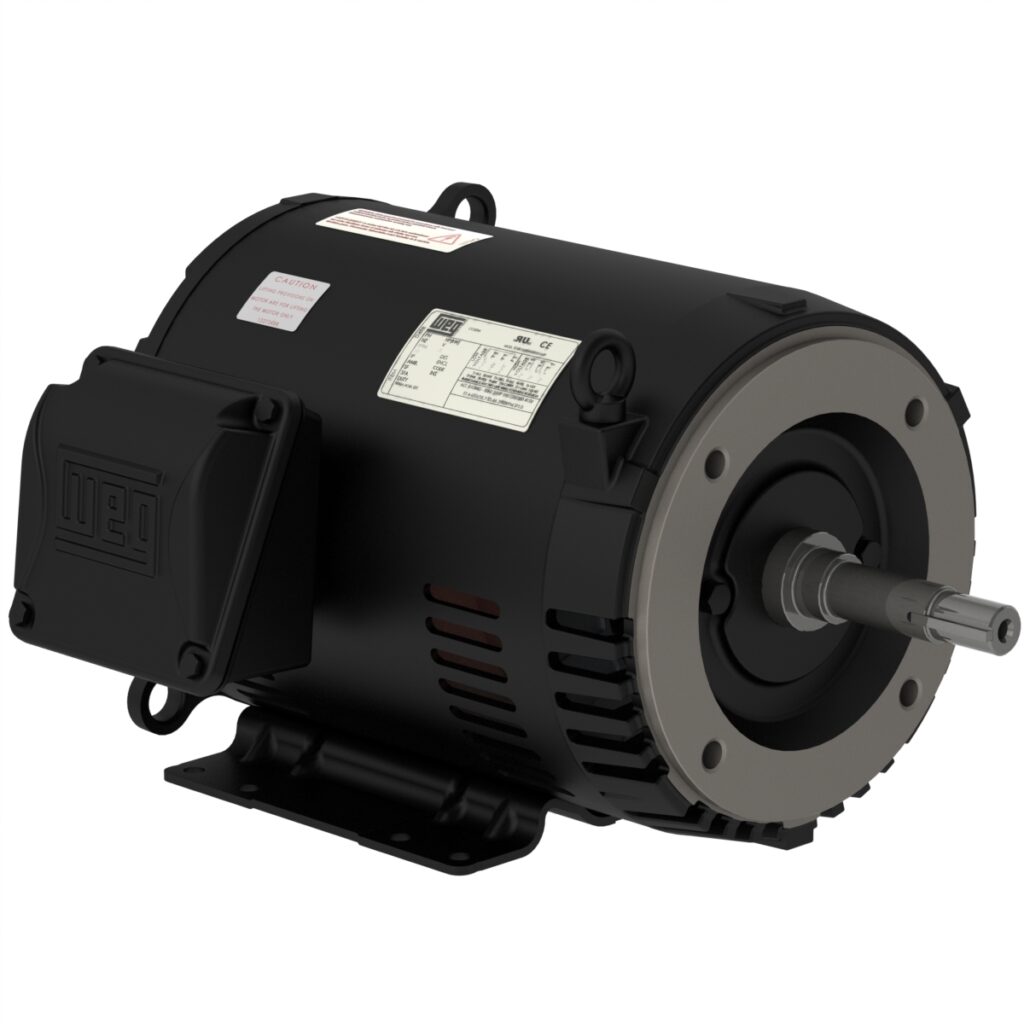

WEG Rolled Steel Motor – 20HP, 230/460V – 3Ph, 60 Hz, 3525RPM, ODP, Foot-mounted, Model 02036OT3E254JM-S

Comments Off on WEG Rolled Steel Motor – 20HP, 230/460V – 3Ph, 60 Hz, 3525RPM, ODP, Foot-mounted, Model 02036OT3E254JM-S

The Rolled Steel motors line were developed for applications that demand performance, robustness and low weight integrated into a single product. The electrical and mechanical concept of the line make the motor present an optimum cost-benefit, providing reliability and energy savings.

Product Features

StandardNEMA MG-1
Frequency60 Hz
Voltage230/460
Number of poles2
Synchronous speed3600 rpm
Output rating20 HP
FlangeC
MountingF-1
Terminal boxLeft position
EnclosureIC01 – ODP

Continue Reading
Free Shipping

WEG Rolled Steel Motor – 15HP, 230/460V – 3Ph, 60 Hz, 3535RPM, ODP, Foot-mounted, Model 01536OT3E215JM-S

Comments Off on WEG Rolled Steel Motor – 15HP, 230/460V – 3Ph, 60 Hz, 3535RPM, ODP, Foot-mounted, Model 01536OT3E215JM-S

The Rolled Steel motors line were developed for applications that demand performance, robustness and low weight integrated into a single product. The electrical and mechanical concept of the line make the motor present an optimum cost-benefit, providing reliability and energy savings.

Product Features

StandardNEMA MG-1
Frequency60 Hz
Voltage230/460
Number of poles2
Synchronous speed3600 rpm
Output rating15 HP
FlangeC
MountingF-1
Terminal boxLeft position
EnclosureIC01 – ODP

Continue Reading
Free Shipping

WEG Rolled Steel Motor – 10HP, 230/460V – 3Ph, 60 Hz, 3530RPM, TEFC, Foot-mounted, Model 01036ET3E215JM-S

Comments Off on WEG Rolled Steel Motor – 10HP, 230/460V – 3Ph, 60 Hz, 3530RPM, TEFC, Foot-mounted, Model 01036ET3E215JM-S

The Rolled Steel motors line were developed for applications that demand performance, robustness and low weight integrated into a single product. The electrical and mechanical concept of the line make the motor present an optimum cost-benefit, providing reliability and energy savings.

Product Features

StandardNEMA MG-1
Frequency60 Hz
Voltage230/460
Number of poles2
Degree of protectionIP55
Synchronous speed3600 rpm
Output rating10 HP
FlangeC
MountingF-1
Terminal boxLeft position
EnclosureIC411 – TEFC

Continue Reading
Free Shipping

WEG Rolled Steel Motor – 10HP, 230/460V – 3Ph, 60 Hz, 3535RPM, ODP, Foot-mounted, Model 01036OT3E213JM-S

Comments Off on WEG Rolled Steel Motor – 10HP, 230/460V – 3Ph, 60 Hz, 3535RPM, ODP, Foot-mounted, Model 01036OT3E213JM-S

The Rolled Steel motors line were developed for applications that demand performance, robustness and low weight integrated into a single product. The electrical and mechanical concept of the line make the motor present an optimum cost-benefit, providing reliability and energy savings.

Product Features

StandardNEMA MG-1
Frequency60 Hz
Voltage230/460
Number of poles2
Synchronous speed3600 rpm
Output rating10 HP
FlangeC
MountingF-1
Terminal boxLeft position
EnclosureIC01 – ODP

Continue Reading
Free Shipping

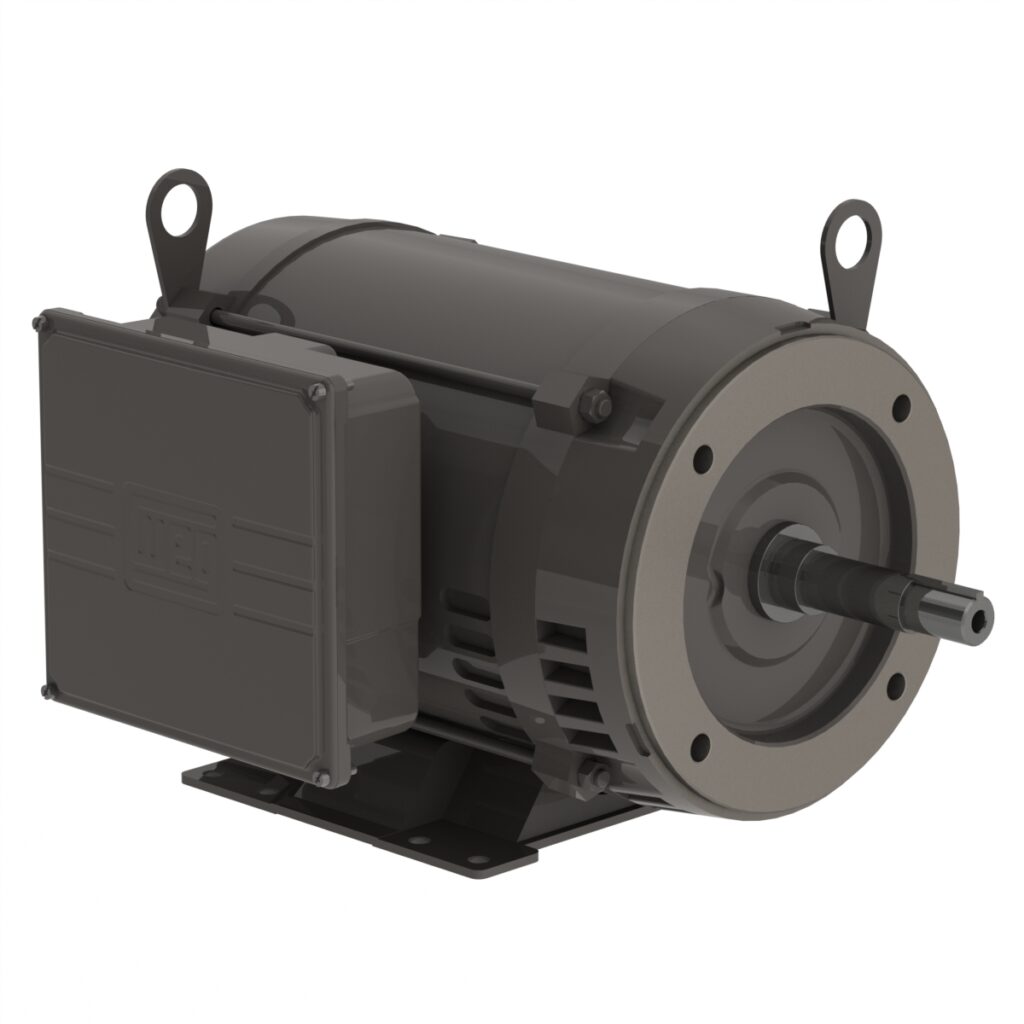

WEG Close Coupled Motor – 7.5HP, 230V – 1Ph, 60 Hz, 3510RPM, ODP, Foot-mounted, Model 00736OS1C213JM

Comments Off on WEG Close Coupled Motor – 7.5HP, 230V – 1Ph, 60 Hz, 3510RPM, ODP, Foot-mounted, Model 00736OS1C213JM

The Close Coupled motors line were developed for applications that demand performance, robustness and low weight integrated into a single product. The electrical and mechanical concept of the line make the motor present an optimum cost-benefit, providing reliability and energy savings.

Product Features

StandardNEMA MG-1
Frequency60 Hz
Voltage208-230
Number of poles2
Degree of protectionIP21
Synchronous speed3600 rpm
Output rating7.5 HP
FlangeC
MountingF-1
Terminal boxLeft position
EnclosureIC01 – ODP

Continue Reading
Free Shipping

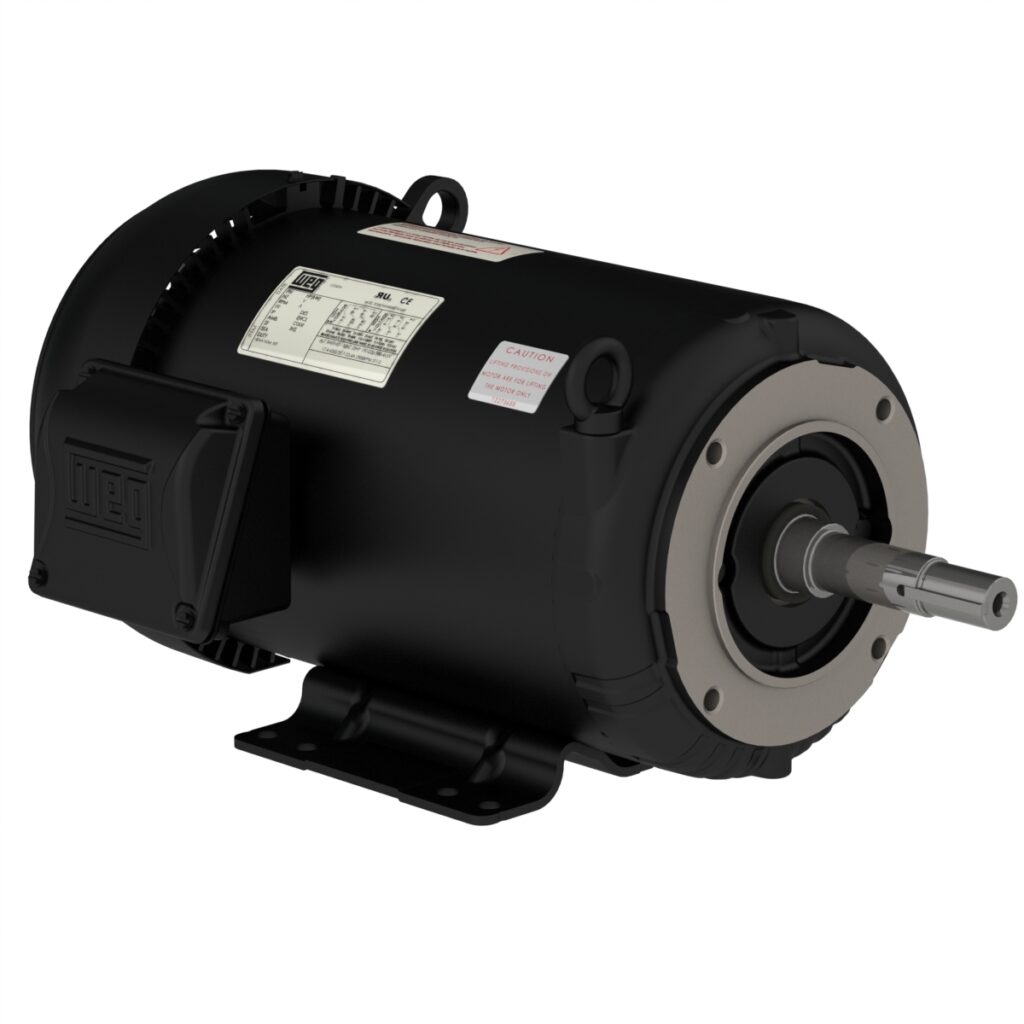

WEG Rolled Steel Motor – 7.5HP, 230/460V – 3Ph, 60 Hz, 3480RPM, TEFC, Foot-mounted, Model 00736ET3E184JM-S

Comments Off on WEG Rolled Steel Motor – 7.5HP, 230/460V – 3Ph, 60 Hz, 3480RPM, TEFC, Foot-mounted, Model 00736ET3E184JM-S

The Rolled Steel motors line were developed for applications that demand performance, robustness and low weight integrated into a single product. The electrical and mechanical concept of the line make the motor present an optimum cost-benefit, providing reliability and energy savings.

Product Features

StandardNEMA MG-1
Frequency60 Hz
Voltage230/460
Number of poles2
Synchronous speed3600 rpm
Output rating7.5 HP
FlangeC
MountingF-1
Terminal boxLeft position
EnclosureIC411 – TEFC

Continue Reading
Free Shipping

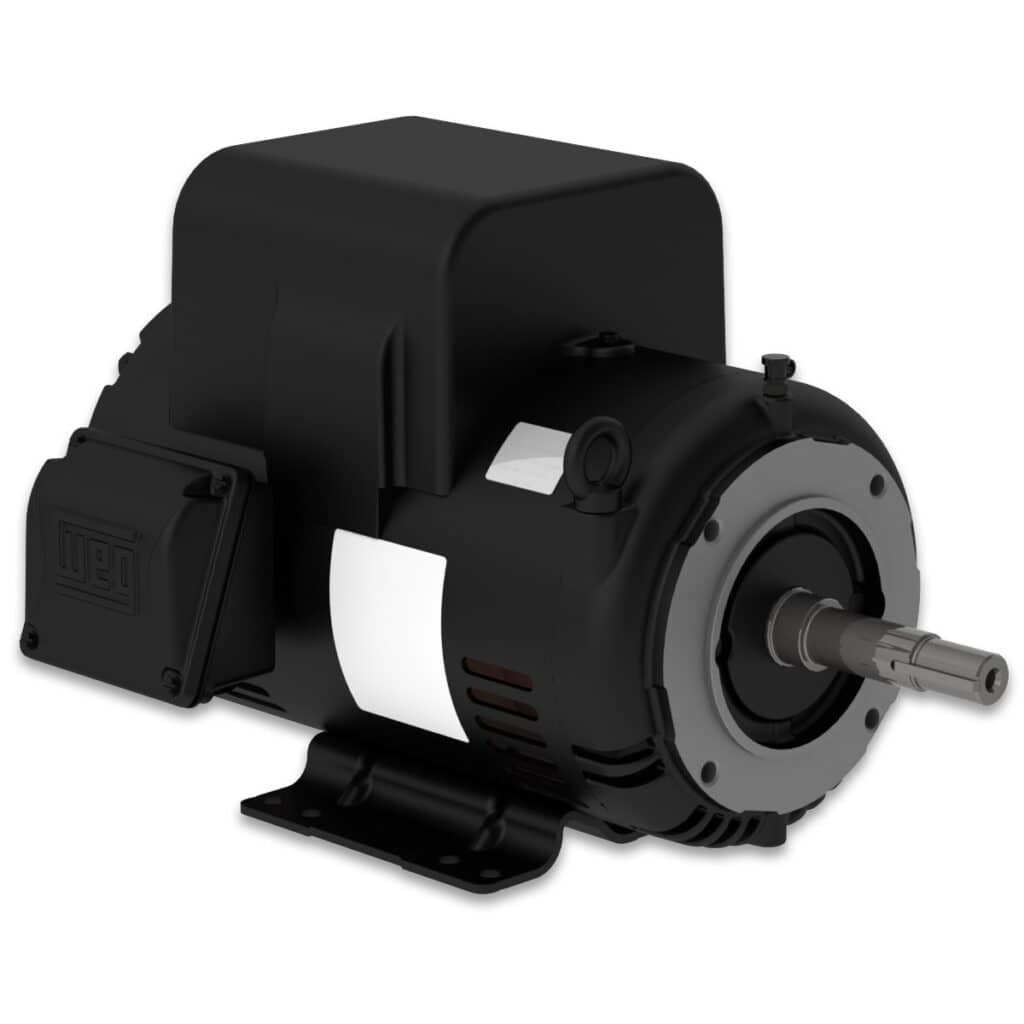

WEG Rolled Steel Motor – 5HP, 115/230V – 1Ph, 60 Hz, 3500RPM, ODP, Foot-mounted, Model 00536OS1B184JM-S

Comments Off on WEG Rolled Steel Motor – 5HP, 115/230V – 1Ph, 60 Hz, 3500RPM, ODP, Foot-mounted, Model 00536OS1B184JM-S

The Rolled Steel motors line were developed for applications that demand performance, robustness and low weight integrated into a single product. The electrical and mechanical concept of the line make the motor present an optimum cost-benefit, providing reliability and energy savings.

Product Features

StandardNEMA MG-1
Frequency60 Hz
Voltage115/208-230
Number of poles2
Synchronous speed3600 rpm
Output rating5 HP
FlangeC
MountingF-1
Terminal boxLeft position
EnclosureIC01 – ODP

Continue Reading
Free Shipping

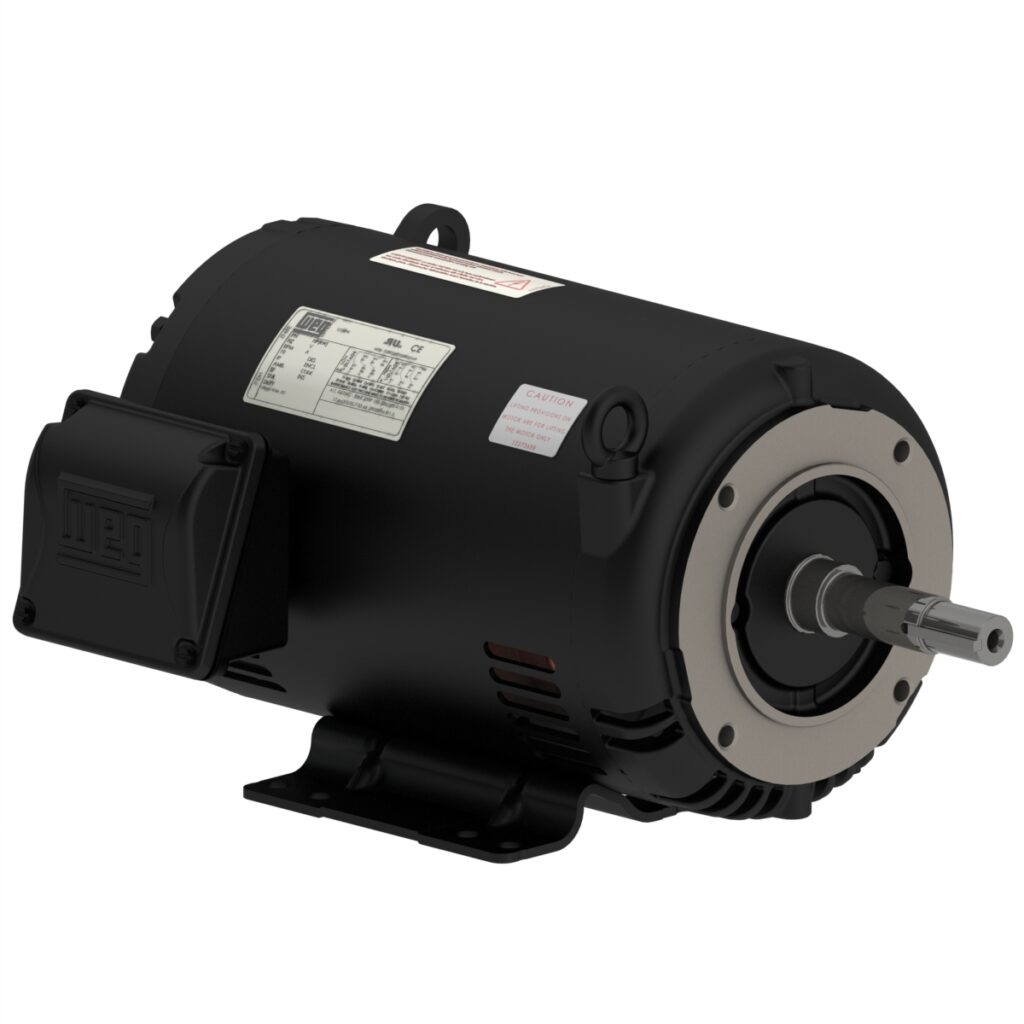

WEG Rolled Steel Motor – 5HP, 230/460V – 3Ph, 60 Hz, 3510RPM, ODP, Foot-mounted, Model 00536OT3E182JM-S

Comments Off on WEG Rolled Steel Motor – 5HP, 230/460V – 3Ph, 60 Hz, 3510RPM, ODP, Foot-mounted, Model 00536OT3E182JM-S

The Rolled Steel motors line were developed for applications that demand performance, robustness and low weight integrated into a single product. The electrical and mechanical concept of the line make the motor present an optimum cost-benefit, providing reliability and energy savings.

Product Features

StandardNEMA MG-1
Frequency60 Hz
Voltage230/460V
Number of poles2
Synchronous speed3600 rpm
Output rating5 HP
FlangeC
MountingF-1
Terminal boxLeft position
EnclosureIC01 – ODP

Continue Reading
