vertical multistage pumps
Free Shipping

GPTCO Vertical Multistage Centrifugal Pump, 30HP, 12600GPH, 3PHASE, Model GSBN 32-7, SS316, NEMA

Comments Off on GPTCO Vertical Multistage Centrifugal Pump, 30HP, 12600GPH, 3PHASE, Model GSBN 32-7, SS316, NEMA

The SBN (Stainless Steel 316) pumps are non-self priming vertical multistage pump of in-line design, flange or with Victaulic coupling with equally sized suction and discharge ports. Stage construction with stainless steel impellers, chambers and pressure casing. Pump stub shaft and motor shaft of the IEC-standards motor are directly close coupled. All pumps are equipped with a cartridge type mechanical seal for easy maintenance.
SB, SBN pumps have different pump sizes and various numbers of stages to provide the flow and the pressure required.





Continue Reading
vertical multistage pumps
Free Shipping

GPTCO Vertical Multistage Centrifugal Pump, 25HP, 12600GPH, 3PHASE, Model GSBN 32-6, SS316, NEMA

Comments Off on GPTCO Vertical Multistage Centrifugal Pump, 25HP, 12600GPH, 3PHASE, Model GSBN 32-6, SS316, NEMA

The SBN (Stainless Steel 316) pumps are non-self priming vertical multistage pump of in-line design, flange or with Victaulic coupling with equally sized suction and discharge ports. Stage construction with stainless steel impellers, chambers and pressure casing. Pump stub shaft and motor shaft of the IEC-standards motor are directly close coupled. All pumps are equipped with a cartridge type mechanical seal for easy maintenance.
SB, SBN pumps have different pump sizes and various numbers of stages to provide the flow and the pressure required.





Continue Reading
Free Shipping

SAER Heavy Duty Centrifugal Water Pump — 7920 GPH, 12.5HP, 460V – 3P, 6BP10N/194

Comments Off on SAER Heavy Duty Centrifugal Water Pump — 7920 GPH, 12.5HP, 460V – 3P, 6BP10N/194

Features

  • Single impeller closed coupled centrifugal pump
  • Industrial and agricultural water supply and irrigation applications
  • Civil and domestic water transfers
  • Pump body and motor support in cast iron
  • Cast Iron impeller pump
  • Totally enclosed fan cooled motor (TEFC)

Continue Reading

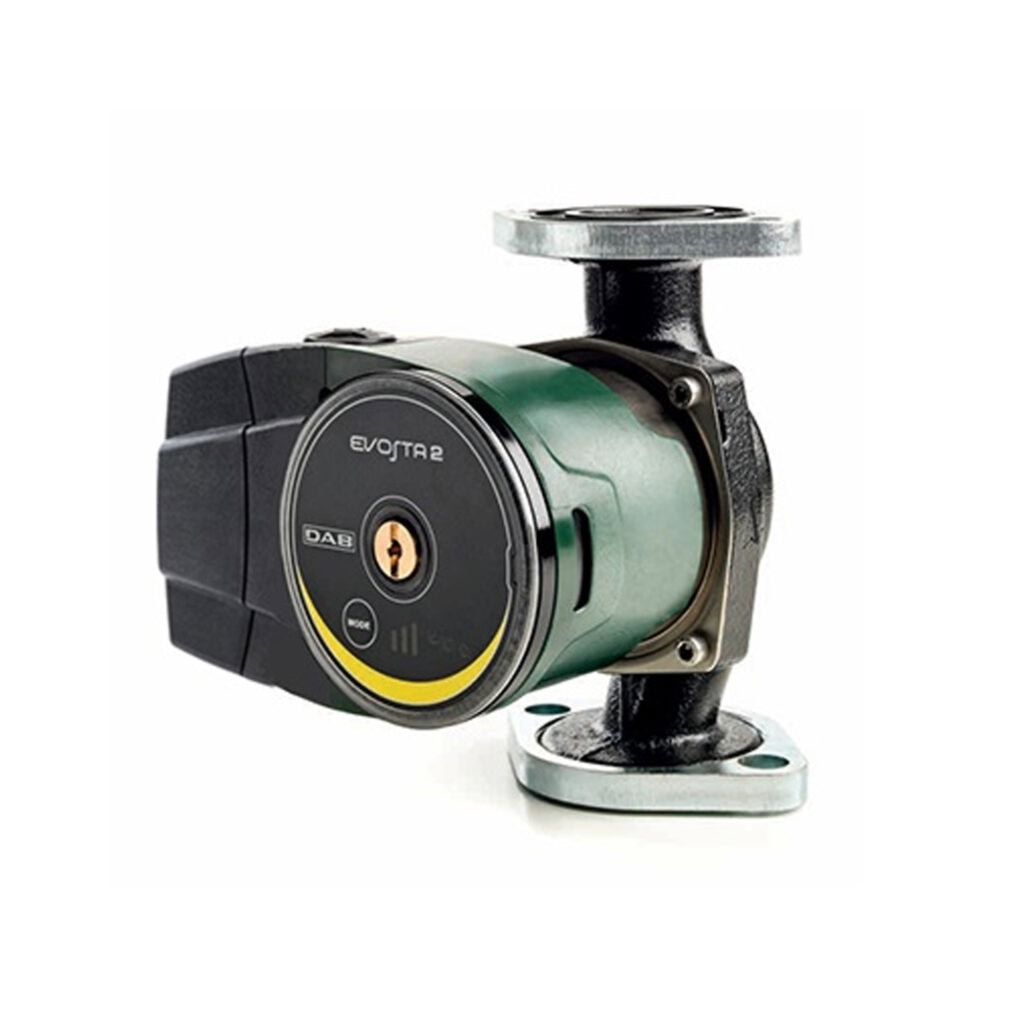

DAB Automatic Circulating Pump, Flanged, 4-41W, 110-127V, 900 GPH, Model EVOSTA2D 55

1 Comment on DAB Automatic Circulating Pump, Flanged, 4-41W, 110-127V, 900 GPH, Model EVOSTA2D 55

EVOSTA2 circulating pump range from DAB Pumps has a built-in electronic device that detects the changes demanded by the system, and automatically adapts the circulator performance accordingly.

APPLICATIONS
Low energy consumption electronic pump for hot water circulation in all types of domestic heating systems.

TECHNICAL DATA

Operating range: 0.8 – 15.1 gpm with head up to 18 ft.
Pumped liquid temperature range: from +14 °F (-10°C) to +230 °F (110°C).
Working pressure: 145 psi 10 bar (1000 kPa).
Protection class: IP X5. (NEMA 4X ) Protected against jets of water.
Insulation class: F.
Installation: with horizontal motor axis.
Standard power input: single-phase 1 x 110-127 V~ 60 Hz.
Pumped liquid: Clean, free  of  solids  and  mineral  oils, non-viscous, chemically neutral, with properties similar to water (glycol max 30%).

ADVANTAGES
Thanks to the advanced technology employed, the permanent magnet synchronous motor and its electronic driver (also called ECM: Electronic Commutation Motor or BLDC motor: Brushless DC motor), the new range of EVOSTA2 circulators ensures high efficiency in all applications, with significant benefits in terms of energy saving.

The circulator has a built-in electronic device that detects the changes demanded by the system, and automatically adapts the circulator performance, accordingly, always ensuring optimum efficiency and minimum energy consumption.
The EVOSTA2 circulator is also suitable for replacing old three-speed circulators, both as far as size, as it has the same dimensions of the VA series, and for its
capability of covering pumps with heads of up to 18 feet with one single model. It can also simplify the work of the user, thanks to a single sequential setting button
and a breather plug used to degas the system and unlock the motor shaft if required.

The EVOSTA2 circulators can operate in 3 different modes:
• Proportional differential pressure
• Constant differential pressure
• Fixed curve

CONSTRUCTION FEATURES
• Pump body in Cast Iron
• Motor casing in stainless steel
• Motor casing cover in Techno polymer
• Motor shaft in ceramic (alumina)
• IPX5: Protected against water jets

Continue Reading

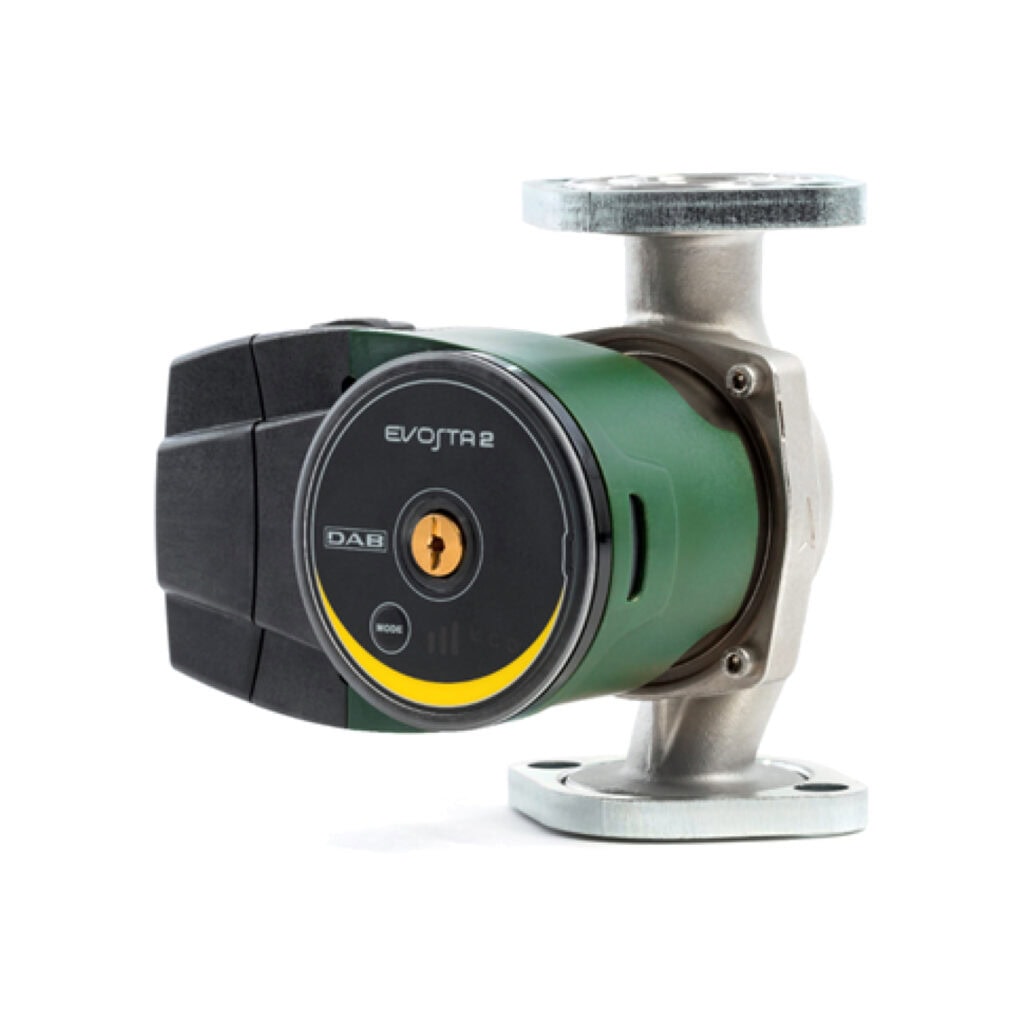

DAB Automatic Circulating Pump, Flanged, 4-41W, 110-127V, 900 GPH, Model EVOSTA2 55, SS304

Comments Off on DAB Automatic Circulating Pump, Flanged, 4-41W, 110-127V, 900 GPH, Model EVOSTA2 55, SS304

EVOSTA2 circulating pump range from DAB Pumps has a built-in electronic device that detects the changes demanded by the system, and automatically adapts the circulator performance accordingly.

APPLICATIONS
Low energy consumption electronic pump for hot water circulation in all types of domestic heating systems.

TECHNICAL DATA

Operating range: 0.8 – 15.1 gpm with head up to 18 ft.
Pumped liquid temperature range: from +14 °F (-10°C) to +230 °F (110°C).
Working pressure: 145 psi 10 bar (1000 kPa).
Protection class: IP X5. (NEMA 4X ) Protected against jets of water.
Insulation class: F.
Installation: with horizontal motor axis.
Standard power input: single-phase 1 x 110-127 V~ 60 Hz.
Pumped liquid: Clean, free  of  solids  and  mineral  oils, non-viscous, chemically neutral, with properties similar to water (glycol max 30%).

ADVANTAGES
Thanks to the advanced technology employed, the permanent magnet synchronous motor and its electronic driver (also called ECM: Electronic Commutation Motor or BLDC motor: Brushless DC motor), the new range of EVOSTA2 circulators ensures high efficiency in all applications, with significant benefits in terms of energy saving.

The circulator has a built-in electronic device that detects the changes demanded by the system, and automatically adapts the circulator performance, accordingly, always ensuring optimum efficiency and minimum energy consumption.
The EVOSTA2 circulator is also suitable for replacing old three-speed circulators, both as far as size, as it has the same dimensions of the VA series, and for its
capability of covering pumps with heads of up to 18 feet with one single model. It can also simplify the work of the user, thanks to a single sequential setting button
and a breather plug used to degas the system and unlock the motor shaft if required.

The EVOSTA2 circulators can operate in 3 different modes:
• Proportional differential pressure
• Constant differential pressure
• Fixed curve

CONSTRUCTION FEATURES
• Pump body in Stainless Steel 304
• Motor casing in stainless steel
• Motor casing cover in Techno polymer
• Motor shaft in ceramic (alumina)
• IPX5: Protected against water jets

Continue Reading
Sewage Pump
Free Shipping

Vortex Sewage Submersible Pump XV-20T50 – 7800 GPH, 2HP, 2″, 480V, SS316

Comments Off on Vortex Sewage Submersible Pump XV-20T50 – 7800 GPH, 2HP, 2″, 480V, SS316

Gol Pumps XV series all stainless steel submersible vortex sewage pumps are designed for residential and commercial wastewater and pure water transferring, and drainage application. The Gol Pumps XV series can be used to transfer effluent or unscreened raw sewage. The innovative vortex impeller design reduces the risk of clogging problem. Moreover, the Gol Pumps XV series includes a stainless steel motor frame, pump casing, and base to prevent corrosion and are designed to provide great heat dissipation from the motor, ensuring a long service life. Each pump is 100% tested to ensure quality and reliability for years of trouble-free performance.

Application

  • Waste water drainage
  • Water transfer
  • Dewatering
  • Sewage handling
  • Factory waste water handling
Continue Reading
Sewage Pump
Free Shipping

Vortex Sewage Submersible Pump XV-20T50 – 7800 GPH, 2HP, 2″, 220V, SS316

Comments Off on Vortex Sewage Submersible Pump XV-20T50 – 7800 GPH, 2HP, 2″, 220V, SS316

Gol Pumps XV series all stainless steel submersible vortex sewage pumps are designed for residential and commercial wastewater and pure water transferring, and drainage application. The Gol Pumps XV series can be used to transfer effluent or unscreened raw sewage. The innovative vortex impeller design reduces the risk of clogging problem. Moreover, the Gol Pumps XV series includes a stainless steel motor frame, pump casing, and base to prevent corrosion and are designed to provide great heat dissipation from the motor, ensuring a long service life. Each pump is 100% tested to ensure quality and reliability for years of trouble-free performance.

Application

  • Waste water drainage
  • Water transfer
  • Dewatering
  • Sewage handling
  • Factory waste water handling
Continue Reading
Sewage Pump
Free Shipping

Vortex Sewage Submersible Pump XV-15T50 – 6300 GPH, 1.5HP, 2″, 220V, SS316

Comments Off on Vortex Sewage Submersible Pump XV-15T50 – 6300 GPH, 1.5HP, 2″, 220V, SS316

Gol Pumps XV series all stainless steel submersible vortex sewage pumps are designed for residential and commercial wastewater and pure water transferring, and drainage application. The Gol Pumps XV series can be used to transfer effluent or unscreened raw sewage. The innovative vortex impeller design reduces the risk of clogging problem. Moreover, the Gol Pumps XV series includes a stainless steel motor frame, pump casing, and base to prevent corrosion and are designed to provide great heat dissipation from the motor, ensuring a long service life. Each pump is 100% tested to ensure quality and reliability for years of trouble-free performance.

Application

  • Waste water drainage
  • Water transfer
  • Dewatering
  • Sewage handling
  • Factory waste water handling
Continue Reading
Sewage Pump
Free Shipping

Vortex Sewage Submersible Pump XV-07MA40 – 3600 GPH, 0.75HP, 1.5″, 220V, SS316

Comments Off on Vortex Sewage Submersible Pump XV-07MA40 – 3600 GPH, 0.75HP, 1.5″, 220V, SS316

Gol Pumps XV series all stainless steel submersible vortex sewage pumps are designed for residential and commercial wastewater and pure water transferring, and drainage application. The Gol Pumps XV series can be used to transfer effluent or unscreened raw sewage. The innovative vortex impeller design reduces the risk of clogging problem. Moreover, the Gol Pumps XV series includes a stainless steel motor frame, pump casing, and base to prevent corrosion and are designed to provide great heat dissipation from the motor, ensuring a long service life. Each pump is 100% tested to ensure quality and reliability for years of trouble-free performance.

Application

  • Waste water drainage
  • Water transfer
  • Dewatering
  • Sewage handling
  • Factory waste water handling
Continue Reading
Free Shipping

Drainage Submersible Pump XD-20T40 KW1- 6600 GPH, 2HP, 1.5″, 480V, 3P, SS316

Comments Off on Drainage Submersible Pump XD-20T40 KW1- 6600 GPH, 2HP, 1.5″, 480V, 3P, SS316

STAIRS XD Stainless steel 316 series all stainless steel submersible drainage & sump pumps are designed for sump, drainage, and grey water & pure water transferring applications. These pumps are equipped with a semi-open stainless steel impeller capable of passing 8mm solids. The combination of stainless steel shaft and oil filled lip seal with silicon carbide mechanical seal result in an extremely long operating life and make these pumps suitable for use by home owner or even contractors.

Application

  • Basement water removal
  • Waste water drainage
  • Water transfer
  • Sump/effluent handling
  • Dewatering
  • Fish pond & fountain circulation
  • Factory waste water handling
Continue Reading
