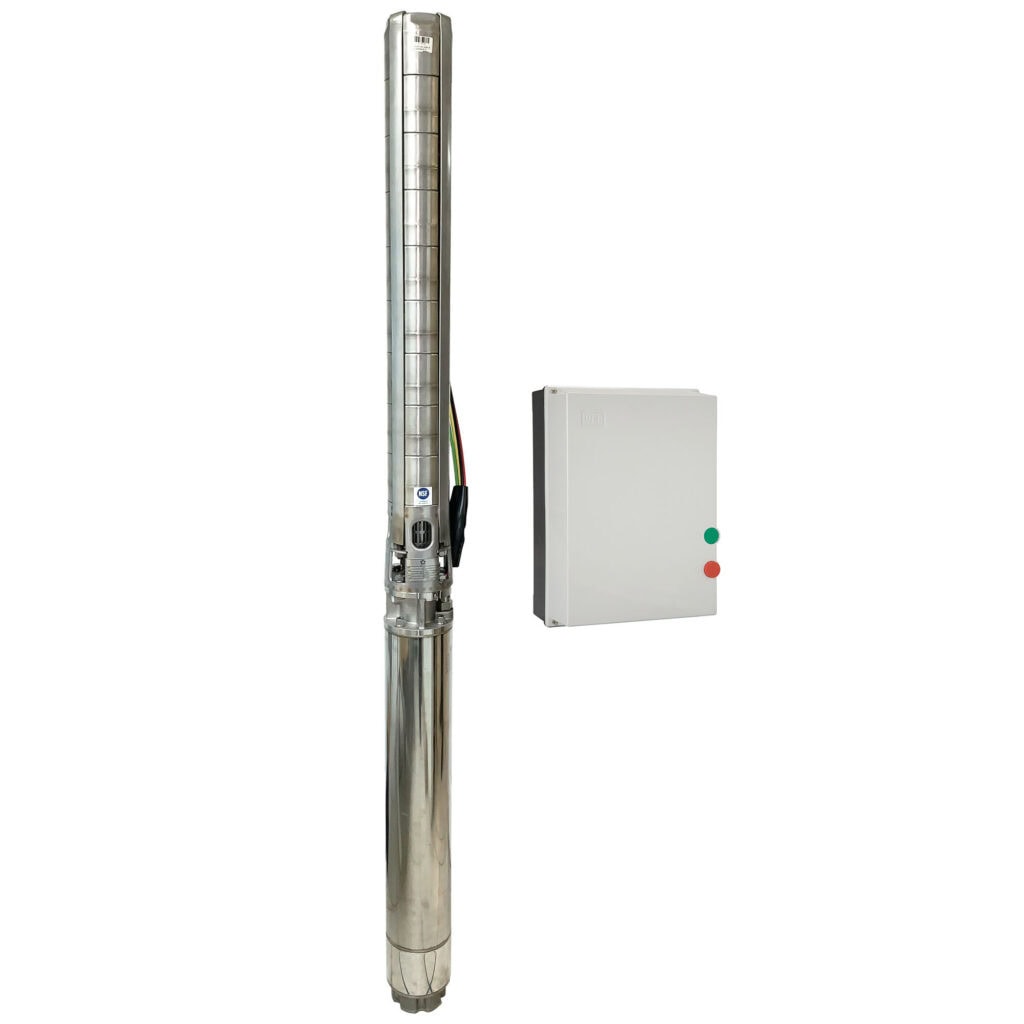

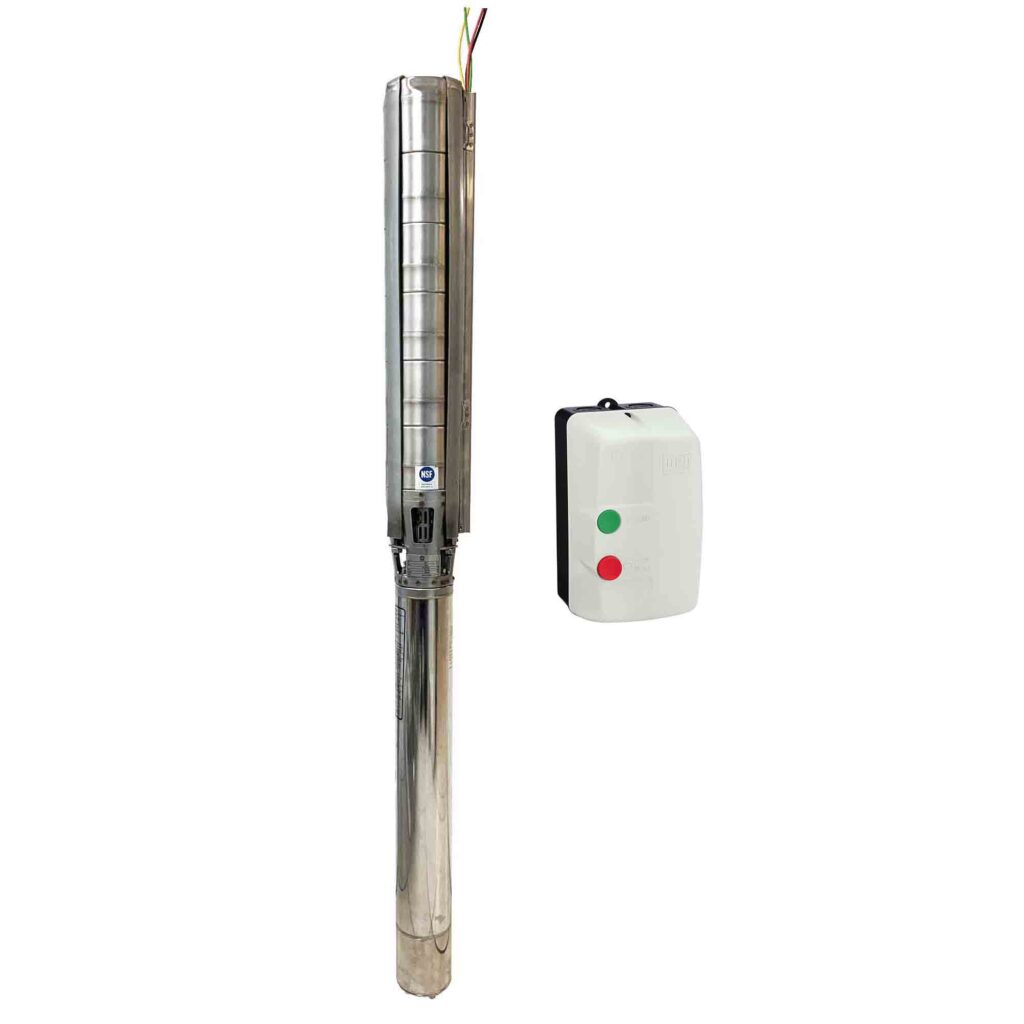

6″ Deep Well Submersible Pump
GolPumps’ Encapsulated-resin filled motor + Control Box are developed with market expectation to meet the robust construction and stringent requirement, which is for 4” or larger well. The motor is 100% tested before shipment.
Motor Materials:
- -Upper/Lower Bracket: AISI 304 Over Iron
- -Stator Shell: AISI 304
- -Shaft: AISI 420
- -Seal Cover: Nylon
- -Lip Seal: NBR
- -Diaphragm: NBR
- -Sand Slinger: NBR
- -Lead Wire (Cable): XLPE
- -Bolts and Screws: AISI 304
- -Lead Potting: Epoxy
- -Kingsbury Thrust Bearing: 402J2
Product advantages
- Hermetically sealed stator, anti-track, stator resin filled prevent motor burn out.
- High efficiency provides operation cost savings Thrust pad
- Copper wiring
- Pressure equalizing diaphragm
- Removable lead connector
- Control boxes available for single phase motor Standard NEMA mounting dimensions
Technical specifications
- Upper bracket: Cataphoresis treated cast iron plus SS304 cover cap.
- Max. Immersion depth: 985 ft.
- Protection: IP68
- Nos. of start per hour: max 20 at regular intervals.
- Sand slinger and lip seal.
- Insulation: Class F
- Rated ambient temperature: 86°F with min.
- Cooling flow 0.08 m/s of water flow speed
- Standard installation position: vertical and horizontal
PUMP SPEC:
- Max Head Pressure (ft): 220ft
- Max Flow(Gpm): 123
- Discharge: 2 1/2”
- HP: 5.5
- Pump Material: Stainless Steel 304
- Pump Model: A6X17CR05/04
Made in Taiwan
Estimated Delivery Time: 3 – 5 Business Days
