Description
Performances
at 3450 rpm 60Hz
The performances data holds true for liquids:
p= 1,0 kg/dm3 density and a v=1 mm2/s viscosity.

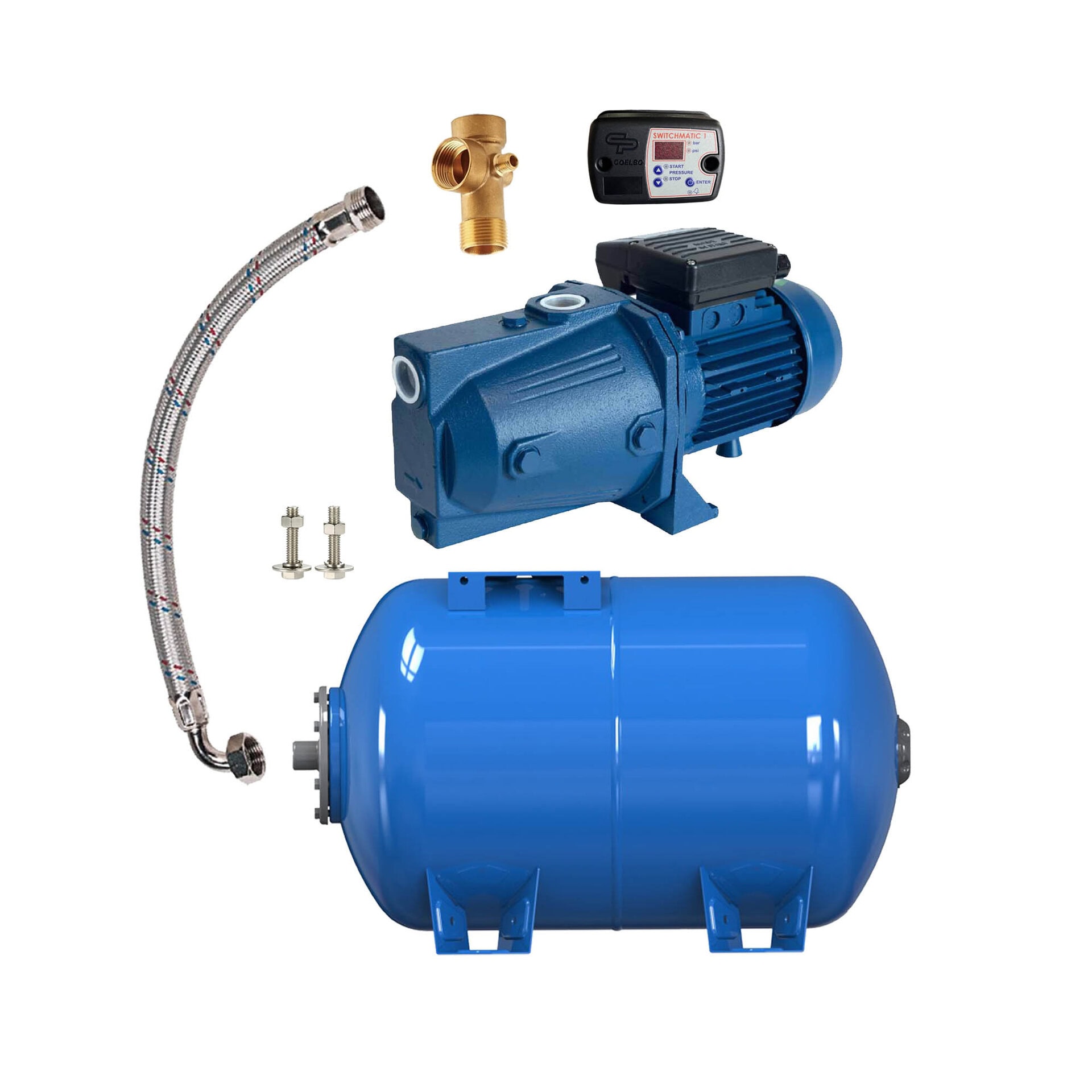

water pressure booster pump
Performance Curve
| Model | Voltage | P2 Nom. | P1 Max | Ampere | Hydraulic | |||||||||||
| 60Hz | Hp | Kw | Kw | 1 x 115V 60Hz | 1 x 220V 60Hz | Gal/Min | 2.6 | 5.3 | 8 | 10.6 | 13 | 16 | 32 | 37 | 40 | |
| JET-P 80M | 1 x 115-220V | 0.8 | 0.6 | 0.8 | 9.8 | 4.8 | Ft. | 138 | 118 | 98.4 | 82 | – | – | – | – | – |
Dimensions
| DNA Aspir | Outlet | Dimensions Box | Weight | ||
| Inch | Inch | L | M | N | Lb |
| 1 | 1 | 8 | 18 | 9.4 | – |
Parts and Materials
Tank Specifications
| Product Model | HR020762S4000000 |
| Dimensions L x W x H | 19.7″ x 11″ x 11″ |
| Air Volume Control | Yes |
| Product Weight | 13 lb |
| Tank Material | Iron |
| Product Type | Pressure Tank for potable water |
| Manufacturer Warranty | 3 Years |
| Precharge PSI | 30 psi |
| Max working Pressure | 145 psi |
| Flange Material | Stainless steel |
| Connection Size | 1″ male |
| Certificates | NSF/ANSI 61/IAPMO Z1088-2013 |
| Replaceable Bladder | YES |
| Max Working Temperature | 210°F |
| Product Made | Italy |
The 5.3 Gal. , 30 psi Pre-charge Horizontal Pressure Tank best to save energy. Pressure tanks are a basic element of a potable water system
Electronic pressure switch. Patented model.
This unit SWITCHMATIC 1 is an electronic pressure switch with an integrated digital pressure gauge. It can manage the start and stop of single-phase electric pumps up to 3 HP (2,2 kW). Cut-in and cut-out pressure implementation can be set easily and accurately through user friendly control panel. Wiring is carried out identically to a conventional electromechanical switch. It can operate as a differential pressure switch or as an inverted pressure switch.
OPERATING CHARACTERISTICS
– Operation modes: differential, inverted and synchronized (only SWITCHMATIC 2).
– Inner pressure transmitter.
– Integrated pressure gauge with bar and psi instantaneous display.
– User friendly control panel including manual start push-button, 3-digits display, led-lights
and pushbuttons.
– Dry-running protection by minimal pressure (for type SWITCHMATIC 1).
– ART function (Automatic Reset Test). If the device has been stopped due the action of the
safety system against dry operation, the ART tries to connect the pump, with a programmed
periodicity because the water supply could have been restored.
– Rapid-cycle alarm: when the hydropneumatic tank has lost the air and frequent start-stops
are produced an alarm is activated and is delayed the start.
– Sleep mode with low power consumption.
– Advanced configuration menu: differentials, delay settings and other parameters.
