Description
Technical Data

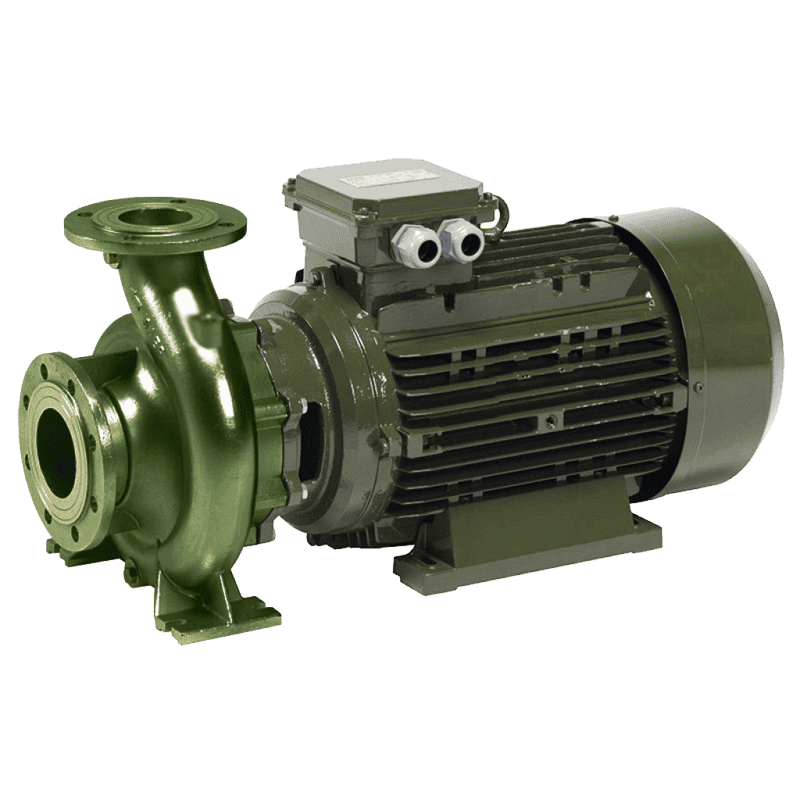

This SAER®-USA Single Stage Close-Coupled End Suction Electric-pump (MONOBLOCK) is suitable for recycling plants, water supply, gardening applications, irrigation, and increasing pressure in main water supply systems.
- Cast iron pump body
- Cast-iron closed-impeller
- Silicon Carbide mechanical seal
- Stainless steel shaft
- Protection: IP55
- +5°F / +194°F liquid temperature range
Technical Data
| Model | 6IR4P65-125A |
| Brand | Saer-USA |
| Manufacturer’s Warranty | 1 years Limited Warranty |
| Pump Material | Cast iron |
| Port Size (in.) | 2.5 & 3 |
| Flow (GPH) | 17160 |
| Max. PSI | 14.8 |
| HP | 2 |
| Volts | 115/230V – 1 PHASE |
| Amps | 21/10.5 |
| Max. Total Head (ft.) | 34 |
| Max. Suction Lift (ft.) | 17 |
| KW | 1.5 |
| Suction Port (in.) | 3 |
| Discharge Port (in.) | 2.5 |
| Self-Priming | No |
| Dimensions L x W x H (in.) | 18.5 x 11 x 13.4 |
| Product Weight (lbs.) | 83.7 |
