Description
Technical Data

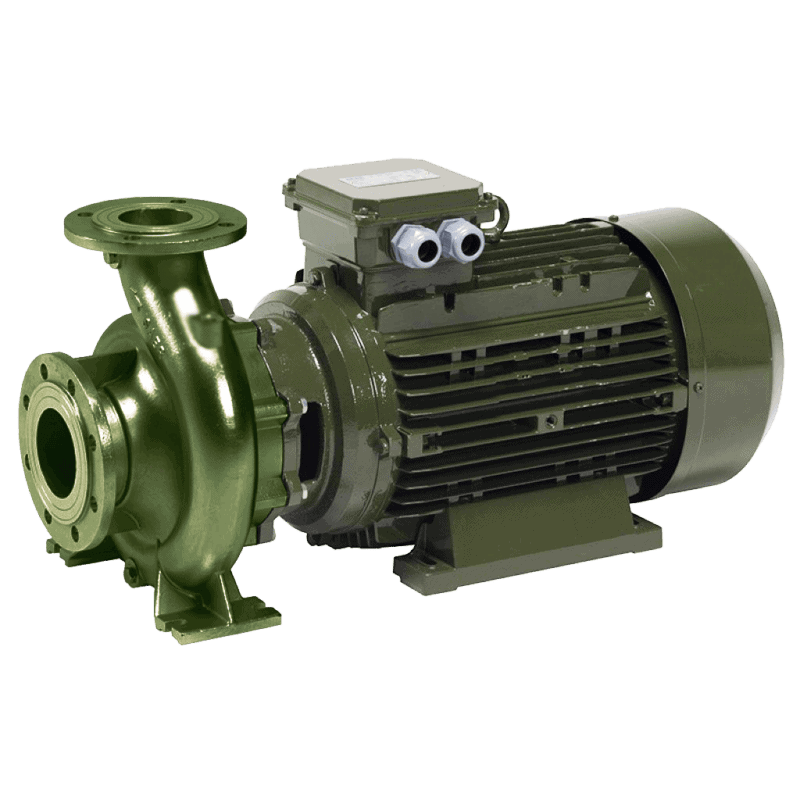

This SAER®-USA Single Stage Close-Coupled End Suction Electric-pump (MONOBLOCK) is suitable for recycling plants, water supply, gardening applications, irrigation, and increasing pressure in main water supply systems.
-
- Cast iron pump body
- Cast-iron closed-impeller
- Silicon Carbide mechanical seal
- Stainless steel shaft
- Protection: IP55
- +5°F / +194°F liquid temperature range
Technical Data
| Model | 6IR32-125B |
| Brand | Saer-USA |
| Manufacturer’s Warranty | 2 years Limited Warranty |
| Pump Material | Cast iron |
| Port Size (in.) | 2 & 1.25 |
| Flow (GPH) | 6360 |
| Max. PSI | 43.8 |
| HP | 3 |
| Volts | 230V – 3 PHASE |
| Amps | 8.1 |
| Max. Total Head (ft.) | 101 |
| Max. Suction Lift (ft.) | 17 |
| KW | 2.2 |
| Suction Port (in.) | 2 |
| Discharge Port (in.) | 1.25 |
| Self-Priming | No |
| Dimensions L x W x H (in.) | 17.9 x 7.5 x 9.9 |
| Product Weight (lbs.) | 68 |
