Description

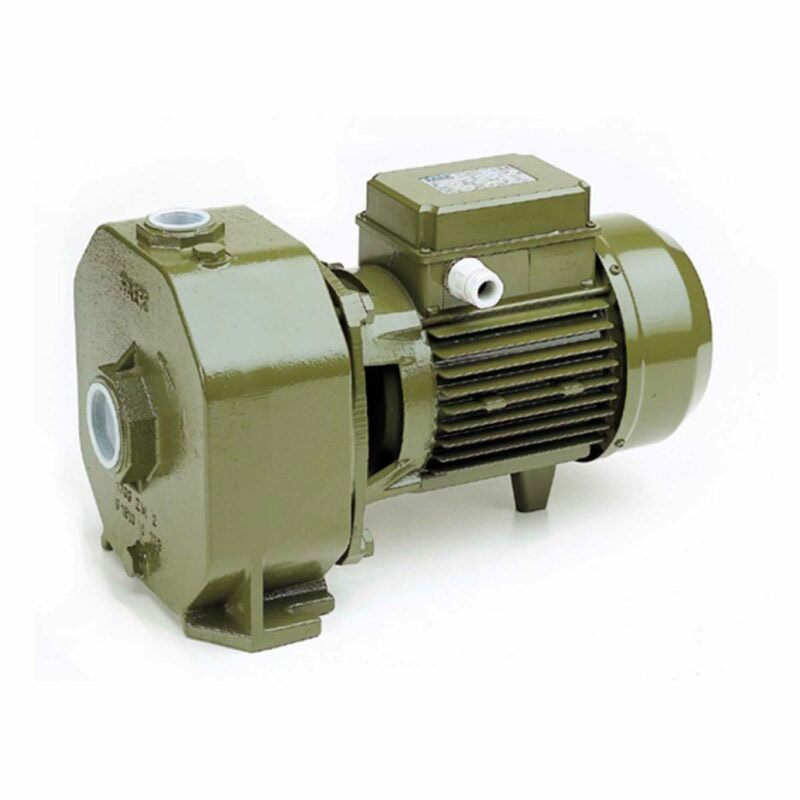

This Saer-USA CB 60 is a Multistage Centrifugal water pump with a max flow of 3696 gallons per hour and a cast iron body.
The CB electric pumps are fitted with two impellers mounted in series supported by the motor shaft, contained in a sturdy cast iron pump body. Rotating in side blade diffusers, they drive the fluid leaving each impeller towards the inlet of the subsequent one. The fluid leaves the pump through the pump outlet. Each impeller and its blade diffuser make a pumping stage; according to the operating principle of centrifugal pumps, this increases the pressure of the fluid that is added to the other pressure increases provided by the other stages in series.
- For mechanically and chemically non-aggressive fluids.
- Water supply.
- House hold systems.
- Automatic distribution of water with small or medium tanks (autoclaves) for irrigation.
- Pressure increases in water mains.
- Protection IP44.
Installation
CB electric pumps can be installed with the motor shaft in either vertical or horizontal position. In the event of vertical installations, the motor must always be positioned above the pump body.
Technical Data
| Model | CB 60 |
| Brand | Saer-USA |
| Manufacturer’s Warranty | 1 year Limited Warranty |
| Material | Cast Iron |
| Port Size (in.) | 1.5 & 1 |
| Max Flow (GPH) | 3696 |
| HP | 3 |
| Volts | 230V – Single Phase |
| Amps | – |
| Max. Total Head (ft.) | 210 |
| Max. Suction Lift (ft.) | 17 |
| Max. PSI | 93 |
| Suction Port (in.) | 1.5 |
| Discharge Port (in.) | 1 |
| Self-Priming | No |
| Dimensions L x W x H (in.) | – |
| Product Weight (lbs.) | 90 |
