Description
🔹 Key Features:
✅ 2 HP Twin Impeller Pump – Delivers high water flow and pressure for demanding applications.
✅ Coelbo DPR-1 EPR Pump Controller – Automatically regulates water pressure, preventing dry running and optimizing performance.
✅ Adjustable Output Pressure
✅ Wide Voltage Compatibility – Works with 220V (1PHASE) power input.
✅ IP65-Rated Protection – Durable, water-resistant design for long-lasting performance.
✅ Energy Efficient – Reduces energy consumption with intelligent pump control.
✅ Easy Installation & Operation – Plug-and-play setup with automatic start/stop functionality.
Ideal for household water boosting, sprinkler systems, irrigation, and commercial applications, this booster set is designed to enhance water flow and pressure with minimal maintenance and maximum reliability.
📦 In the Box:

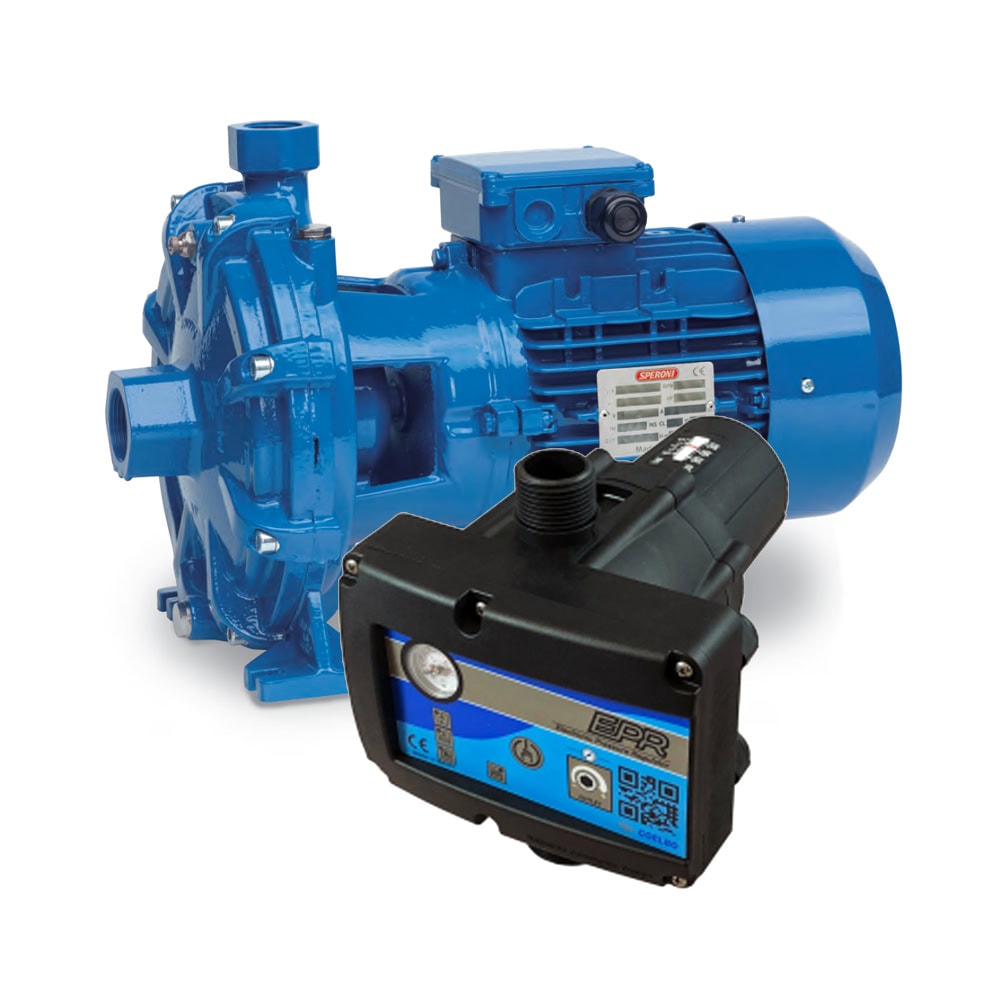

✔️ 1 x 2 CM 25/160B Twin Impeller Centrifugal Pump (2 HP)
✔️ 1 x Coelbo EPR Automatic Pump Controller
🔹 Why Choose This Booster Set?
✔️ Reliable performance for homes, businesses, and farms
✔️ Smart pressure control prevents pump damage and optimizes efficiency
✔️ Quick shipping from Miami – Ready to ship within 1 hour of order placement during business days
Upgrade your water system today with this powerful and efficient booster set – Order Now! 🚀
The Speroni 2CM 25/160B is a twin impeller centrifugal pump that can be used for lifting clear water and non aggressive liquids.
Made in Italy.
Features
Operating Conditions
- Liquid temperature up to 94°F (for home use according to EN 60335-2-41)
- Temperature max. liquid: 194°F (for other uses)
- Ambient temperature up to 104°F
- Total suction lift up to 23ft.
Motor
- Two-Pole induction motor (n = 3450 min-1)
- Insulation Class F
- Protection IP 55
Materials
- Pump body: Cast Iron
- Motor Support: Cast Iron
- Impeller: Brass
- Shaft with rotor: Stainless Steel AISI 304
- Mechanical seal: Ceramic/Graphite/NBR
Applications
Twin impeller centrifugal water pumps to lift clean water and non-aggressive liquids. The main feature are the two opposite impellers which allow higher lifts than in the single-impeller model. They are qualified for civil and industrial fittings, for water distribution by tank pressure groups and for irrigation in gardening and agriculture.
Technical Specifications
Model | 2 CM 25/160B |
Brand | Speroni |
Manufacturer’s Warranty | 1 year Limited Warranty |
Ship Weight | 63.2lb |
Port Size (in.) | 1.25″ & 1″ |
Maximum Flow (GPH) | 2536 GPH |
Maximum Head (ft) | 190ft |
Horsepower | 2HP |
Volts | 220V – 60Hz |
Suction Port (in.) | 1.25″ |
Discharge Port (in.) | 1″ |
Self-Priming | No |
Dimensions L x W x H (in.) | 16.3″ x 9.5″ x 12.4″ |
Product Weight (lbs.) | 58.2lbs |
Dimensions
Type | Dimensions | Dimensions | Weight | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
A | B | C | D | E | F | G | H | H1 | N | Inlet | Outlet | P | L | H | lb | |
2 CM 25/160B | 3.7″ | 2″ | 15.7″ | 8.2″ | 6.6″ | 0.4″ | 8.7″ | 10.4″ | 4.7″ | 3.3″ | 1.25″ | 1″ | 9.5″ | 16.3″ | 12.4″ | 58.2 |
Performance Curve
Performance Table
Type | Nominal Power | Input Power | Amperage | Capacity | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
220V – 60Hz | HP | KW | kW | 1 x 220v | GPM | 5.3 | 10.6 | 39.6 | 52.8 | 66 | 79.3 | 92.5 | 105.7 | 118.9 |
2 CM 25/160B | 2 | 1.5 | 2.4 | 11A | lt/1′ | 20 | 40 | 60 | 80 | 100 | 120 | 140 | 160 | 180 |
Head (ft) | 177.2′ | 170.6′ | 160.8′ | 150.9′ | 137.8′ | 118.1′ | 91.9′ | 85.3′ |
DPR Controller
Pump driver with adjustable outlet pressure. Constant pressure.
EPR is a compact device for automatic control and protection of electric pumps up to 2,2 kW (3 HP), multi-voltage (110-230 V) and equipped with an innovative outlet pressure reducing/regulating system.
Therefore, in addition to the typical characteristics of traditional electronic pump controllers: integrated non-return valve, accumulation diaphragm, pressure gauge, dry-running protection, automatic reset,it allows to adjust and stabilize the outlet pressure, avoiding overloads, water hammer and, ultimately, improving end user comfort..
OPERATING CHARACTERISTICS
– Power relay to manage electric pumps up to 2,2 kW (3 HP).
– voltage power supply: 230 V.
– Manual regulation of the constant outlet pressure with integrated adjusting tool.
– Outlet pressure indicator with pointer.
– Auto-setting of the start pressure linked to the outlet pressure.
– Dual scale integrated pressure gauge (bar/psi).
– Integrated protection system which stops the pump in case of dry-running operation.
– APR function (Anti-blocking periodic routine). After 3 days of inactivity, the device starts the pump for 10 seconds in order to avoid rotor-locking.
– ART function (Automatic Reset Test). If the device has been stopped due to the action of the safety system against dry run operation, this function tries to connect the pump, with a programmed periodicity, because the water supply could have been restored.
– Control panel:
– Yellow led light (POWER).
– Green led light (PUMP ON).
– Red led light (ALARM).
– Green led light (FLOW)
– Tactile push button for manual start.
– Integrated reserve against leaks in the installation and non-return valve.
– Inlet and outlet hydraulic threads: NPT 1”
