Description

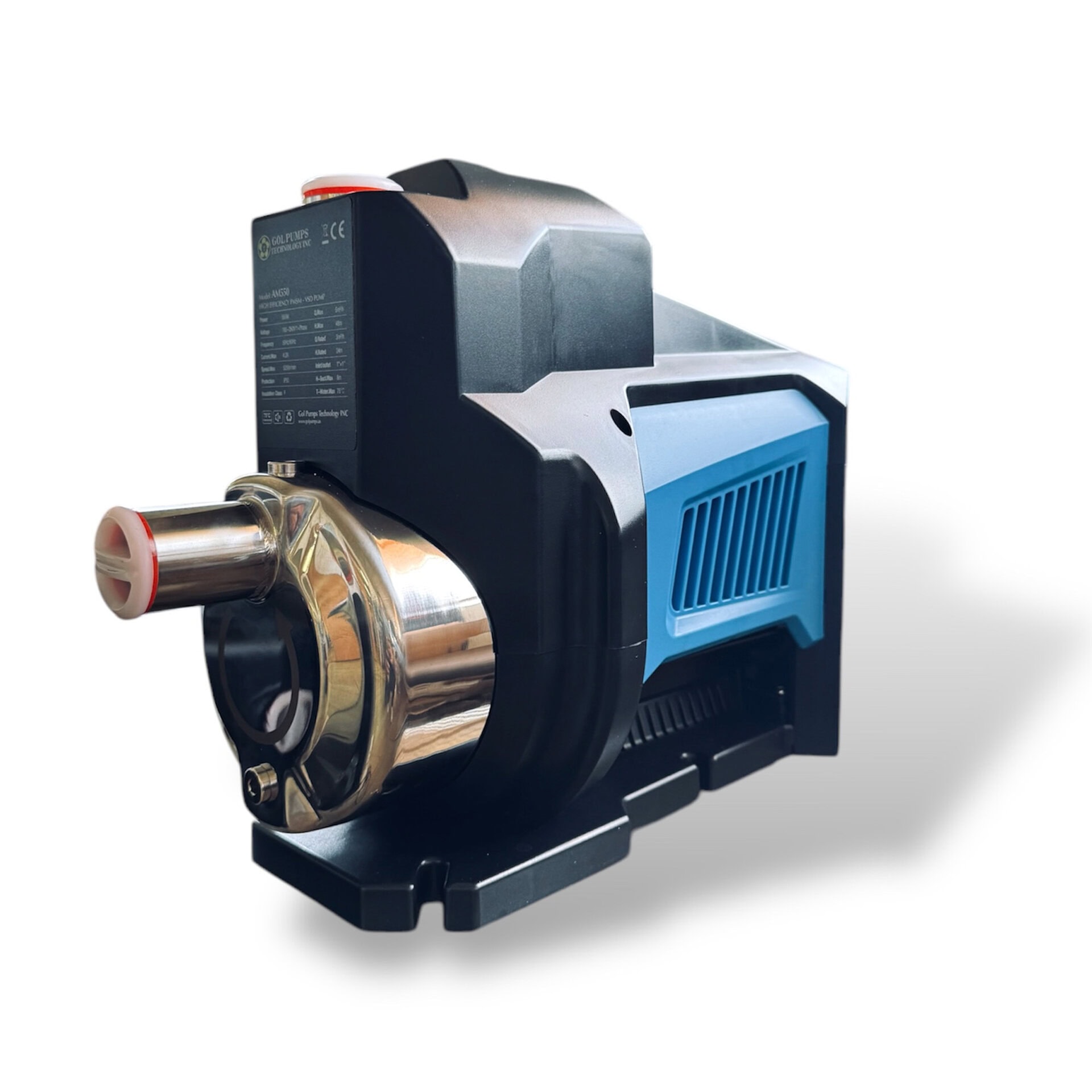

Intelligent Booster Pump
Product Overview:
The GAM series multi-stage centrifugal pump features a permanent magnet motor with variable frequency control. Its pump head is constructed from thickened stainless steel, offering excellent resistance to acids, alkalis, and corrosion, ensuring safe, rust-free, and hygienic water delivery.
Equipped with an advanced microcomputer control system, the pump automatically detects water usage and adjusts motor speed accordingly. When water flow stops, the motor slows down to conserve energy.
This intelligent system delivers constant pressure water supply, high efficiency, and significant energy savings, making it ideal for a wide range of customer needs.
Features & Benefits
✅ Easy to Operate
User-friendly design ensures hassle-free setup and operation.
✅ Low Noise Level
Quiet performance for minimal disruption in residential or commercial settings.
✅ Automatic Start/Stop Function
Pump activates and shuts down automatically based on demand, improving efficiency and convenience.

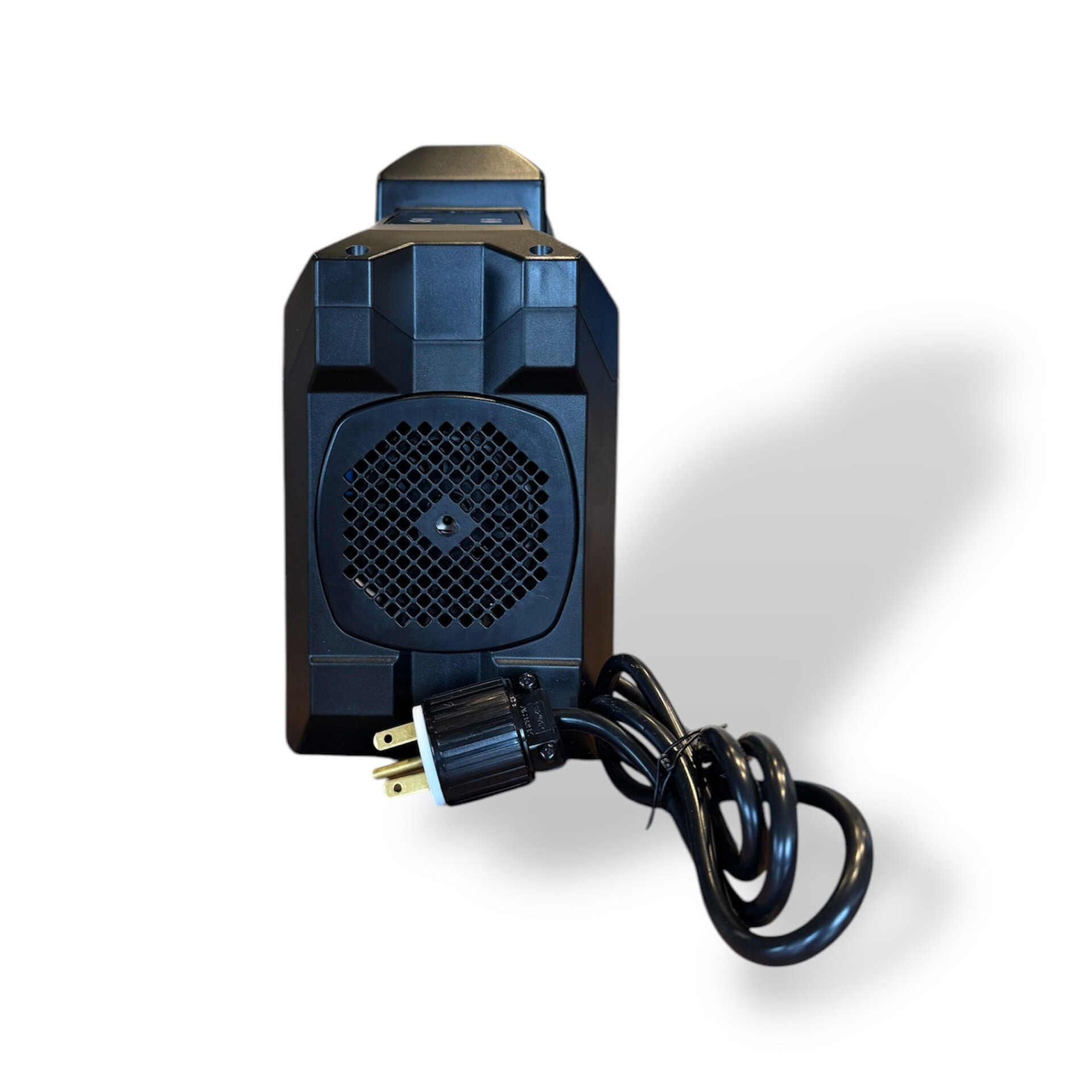

✅ Pre-Wired with a 3-Point Plug
Ready-to-use right out of the box—no additional wiring required.
✅ Energy-Efficient
Delivers up to 80% energy savings compared to traditional pump systems.
✅ Restart Delay Protection
Built-in 3-second delay prevents motor overheating from frequent on/off cycling.
✅ Auto-Rotation Feature
Automatically starts the pump within a 12-hour cycle to rotate the bearings and ensure longevity.
✅ Constant Pressure Control
Integrated pressure transducer maintains consistent pressure—even when multiple outlets are in use.
✅ Class-Leading Efficiency & Protection
Advanced system safeguards against:
Dry run
Over-current
Over/under voltage
Overload
Phase loss
Abnormal pressure
| Model | Power (kW) | H.max (ft) | H.rated (ft) | Q.max (gph) | Q.rated (gph) | Speed.max (rpm) | Voltage (V) | Frequency (Hz) | In/Outlet (Inch) |
|---|---|---|---|---|---|---|---|---|---|
| GAM 880 | 0.9 | 196 | 131 | 1500 | 840 | 5200 | 220±20% | 50/60 | 1″×1″ |

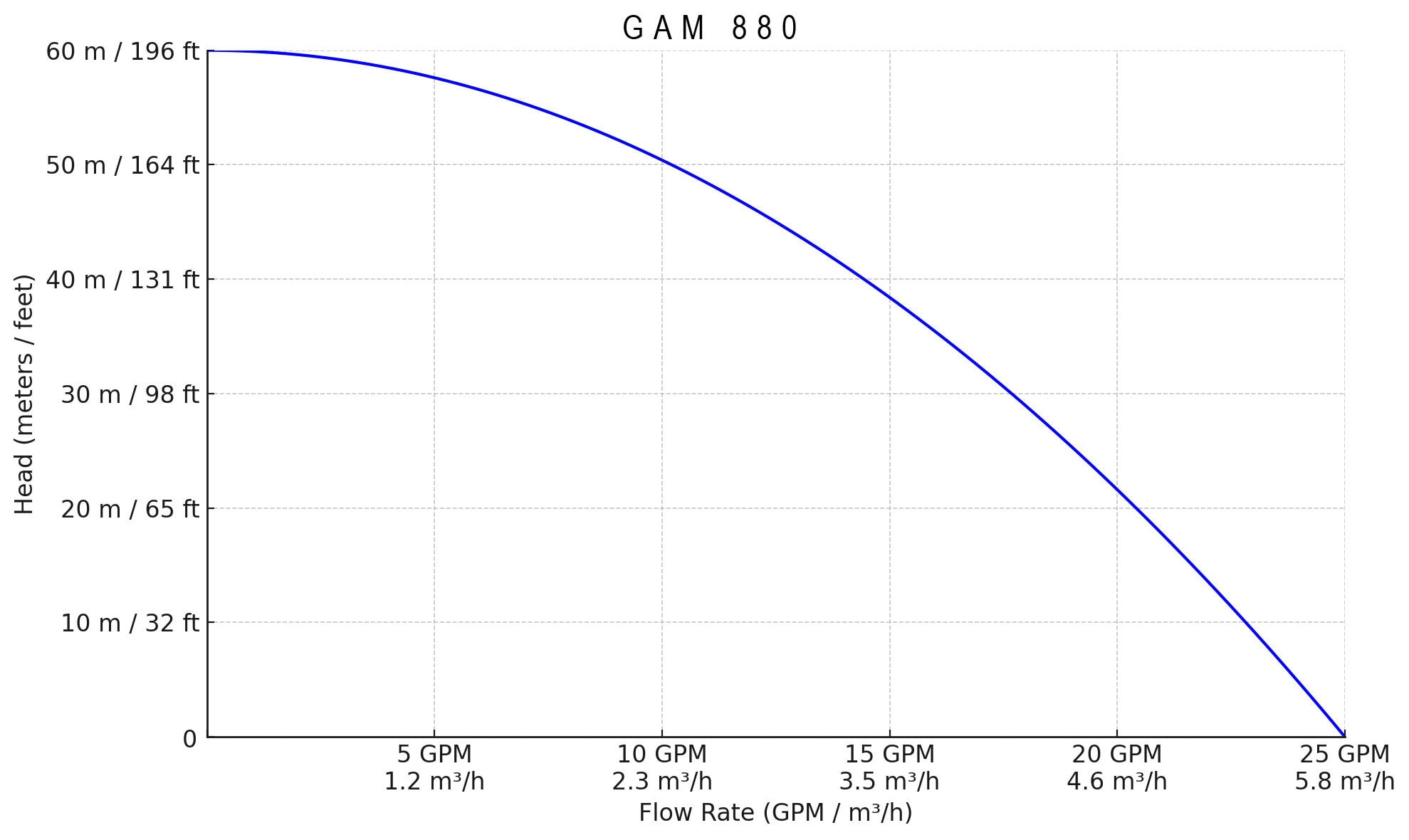

Performance Curve
