Description
Thin submersible Pump
Applications:
- For water supply from wells or reservoirs
- For domestic use
- for civil and industrial applications
- For garden use and irrigation
Operating conditions:
- Maximum fluid temperature up to +35
- Maximum sand content : 0.25%
- Minimum well diameter : 3″
Motor and Pump:
- Rewindable motor
- Single-phase:110V/60Hz or 220V/60Hz
- Equip with start control box
- Pumps are designed by casing stressed Curve tolerance according to ISO 9906
PUMP SPEC:
- Max Head(ft): 515
- Max Flow(Gpm): 15.8
- Discharge: 1 ¼”
- HP: 1.5
- Pump Material: Stainless Steel 304
- Pump Model: 3SDM2/25
- Pump Diameter: 3″
- Warranty: 1 Year Manufacture

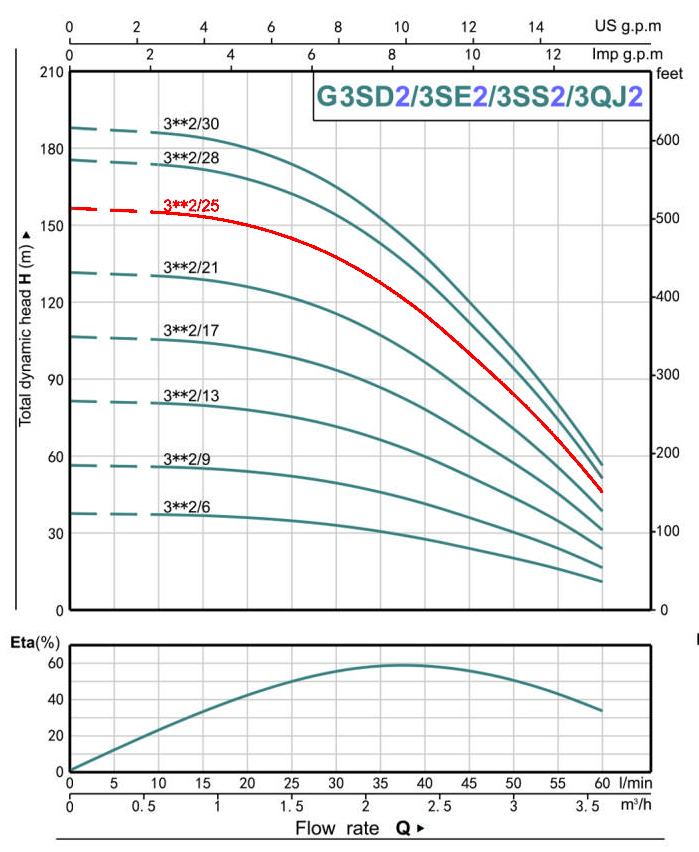

3″ GSD Total Dynamic Head
Performance Data
| MODEL | P2 | DELIVERY   N = 3450 1/min | |||||||||||||||
| 1~ 220V | KW | HP | Q | m3/h | 0 | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 2.7 | 3.0 | 3.3 | 3.6 |
| l/min | 0 | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 55 | 60 | ||||
| 3SD M2/25 | 1.1 | 1.5 | H (m) | 157 | 156 | 155 | 153 | 150 | 144 | 137 | 127 | 115 | 100 | 84 | 67 | 46 | |
Dimension and Weight
| Model | DN | Dimension(inch) | Weight(lbs) | ||||||||
| 1~ 110V/220V | P | M(s) | M(t) | T(s) | T(t) | P | M(s) | M(t) | T(s) | T(t) | |
| 3SD M2/25 | 1″/1* 0.24″ | 28 | 19.4 | 18 | 47 | 45.5 | 7.5 | 22 | 19.2 | 29.5 | 27 |
| Components | Material |
| Pump external casing | AISI 304 SS |
| Delivery casing | Cast-Cu ASTM C85500 |
| Suction lantern | Cast-Cu ASTM C85500 |
| Diffuser | Plastic.PC |
| Impeller | Plastic.POM |
| Shaft | AISI 304 SS |
| Shaft coupling | AISI 304 SS |
| Wear ring | AISI 304 SS |
| Motor external casing | AISI 304 SS |
| Top cover | Cast-Cu ASTM C85500 Cast-iron ASTM NO.30 |
| Bottom support | AISI 304 SS |
| Mechanical seal | Special seal for deep well(Graphite-Ceramic/TC) |
| Shaft | Â AISI 303 SS-ASTM 1045/5140 |
| Seal lubricant oil | Oil for food machinery and pharmaceutic use. |
