WEG, Variable Speed Drive CFW11, VFD, 380-480V, 3PH – CFW110088T4ON1Z
The CFW11 is a system drive designed for the control of squirrel cage induction motors as well as permanent magnet motors. Since it was developed for running on Normal and Heavy Duty mode, a wide variety of applications can be achieved. Designed for exclusively industrial or professional use, it provides increased productivity with excellent performance and quality improvement of the process in which it is used.
Its vast range of functions, easy configuration, installation and operation, in addition to the versions for electrical and modular panel mounting, make the CFW11 suitable for applications in different sectors of the industry.
Technical Data
Free Shipping
WEG SOFT STARTER – 7.5HP – 220-575VAC – SSW9 WEG – SSW900A0010T5E2B
Soft-starters are drives dedicated to the smooth acceleration and deceleration of three-phase electric motors, by controlling the voltage applied to the motor. With proper adjustment of the variables, the torque produced is adjusted to the load requirement, thus ensuring that the requested current is the minimum required for starting. The SSW900 is a soft-starter with three-phase motor control, built-in by-pass and torque control. Intended to drive motors from 10 to 1.400 A.
Applications
Centrifugal, reciprocating pumps (sanitation, irrigation and oil), fans, exhausters, blowers, air compressors, refrigeration (screw and piston), mixers, aerators, centrifuges, rock crushers, grinders, woodchippers, paper refiners, rotary ovens, wood saws and planes, ball and hammer mills and load conveyors.
| Specifications | ||
| Brand | WEG | |
| Model | SSW900B0045T5E2B | |
| Rated current | 10A | |
| Power supply | 220-575V | |
| Enclosure | IP20 | |
| Frame | A | |
Technical Data
Free Shipping

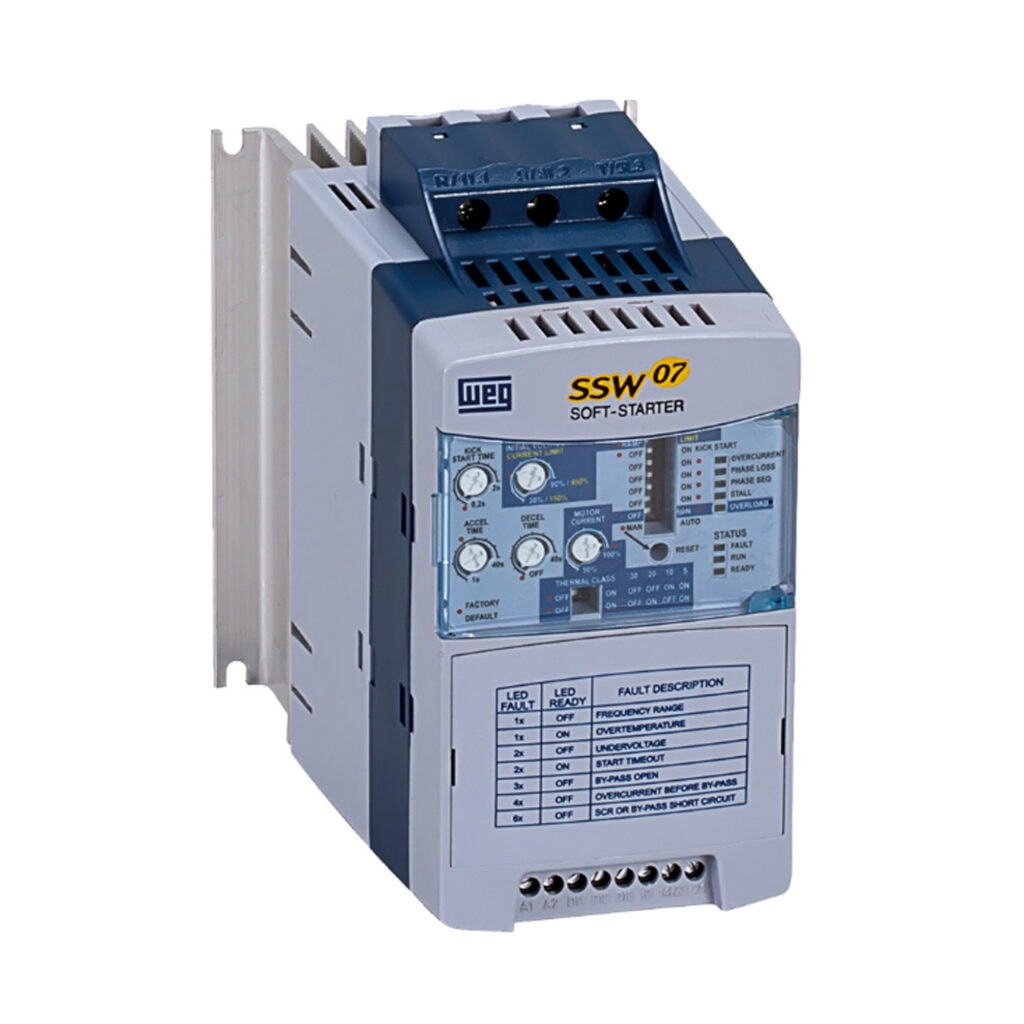

WEG SOFT STARTER – 20HP – 220-575V – SSW07 WEG – Model SSW070030T5SZ
Soft-Starters are static starters that accelerate, decelerate and protect three-phase induction motors. The control of the voltage applied to the motor by means of adjustments to the firing angle of thyristors allows the soft-starter to start and stop an electric motor smoothly.
The SSW07, with DSP (Digital Signal Processor) control was designed for high performance on motor starts and stops with an excellent cost-benefit ratio. Easy to set up, it simplifies start-up activities and daily operation.
The SSW07 is compact optimizing space in electric panels. It already incorporates electric motor protection. It adapts to customer needs through its easy-to-install optional accessories.
The SSW07 adapts to customer needs through its easy-to-install optional accessories. Thus, a keypad, a communication interface or a motor PTC input can be added to the product.
Note: SSW07 Soft-Starter Series were designed for exclusively industrial or professional use.
Product Features
| Specifications | ||
| Rated Current | 30A | |
| Power Supply | 220 – 575 V | |
| Enclosure | IP20 | |
| Frame | 1 | |
Catalog
Free Shipping
WEG SOFT STARTER – 15HP – 220-575V – SSW07 WEG – Model SSW070024T5SZ
Soft-Starters are static starters that accelerate, decelerate and protect three-phase induction motors. The control of the voltage applied to the motor by means of adjustments to the firing angle of thyristors allows the soft-starter to start and stop an electric motor smoothly.
The SSW07, with DSP (Digital Signal Processor) control was designed for high performance on motor starts and stops with an excellent cost-benefit ratio. Easy to set up, it simplifies start-up activities and daily operation.
The SSW07 is compact optimizing space in electric panels. It already incorporates electric motor protection. It adapts to customer needs through its easy-to-install optional accessories.
The SSW07 adapts to customer needs through its easy-to-install optional accessories. Thus, a keypad, a communication interface or a motor PTC input can be added to the product.
Note: SSW07 Soft-Starter Series were designed for exclusively industrial or professional use.
Product Features
| Specifications | ||
| Rated Current | 24A | |
| Power Supply | 220 – 575 V | |
| Enclosure | IP20 | |
| Frame | 1 | |
Catalog
Free Shipping
WEG SOFT STARTER – 10HP – 220-460VAC – SSW05 WEG – SSW050016T2246EPZ
WEG soft starters are fitted with micro processors. They are high-tech and were designed to ensure the highest performance during starts and stops of induction motors.
Soft-Starters are electronic starters designed to accelerate, deccelerate and protect three-phase induction motors, controlling the voltage applied on the motor.
The SSW05 Plus Micro Soft-Starters, with DSP control (Digital Signal Processor) have been designed to supply an excellent performance during starting and stopping electric motors with excellent cost/benefit ratio.
The Operator Interface allows easy parameter setting, simplyfying the start-up and operation activities.
The SSW05 Plus Micro Soft-Starters are compact, optimizating the space in electrical panels and incorporates all protections for the driven motor.
Product Features
| Specifications | ||
| Rated Current | 16A | |
| Power Supply | 220 – 460 V | |
| Enclosure | IPoo | |
| Frame | 1 | |
Catalog
Free Shipping
WEG SOFT STARTER – 5HP – 220-460VAC – SSW05 WEG – SSW050010T2246EPZ
WEG soft starters are fitted with micro processors. They are high-tech and were designed to ensure the highest performance during starts and stops of induction motors.
Soft-Starters are electronic starters designed to accelerate, deccelerate and protect three-phase induction motors, controlling the voltage applied on the motor.
The SSW05 Plus Micro Soft-Starters, with DSP control (Digital Signal Processor) have been designed to supply an excellent performance during starting and stopping electric motors with excellent cost/benefit ratio.
The Operator Interface allows easy parameter setting, simplyfying the start-up and operation activities.
The SSW05 Plus Micro Soft-Starters are compact, optimizating the space in electrical panels and incorporates all protections for the driven motor.
Product Features
| Specifications | ||
| Rated Current | 10A | |
| Power Supply | 220 – 460 V | |
| Enclosure | IPoo | |
| Frame | 1 | |
Catalog
Free Shipping

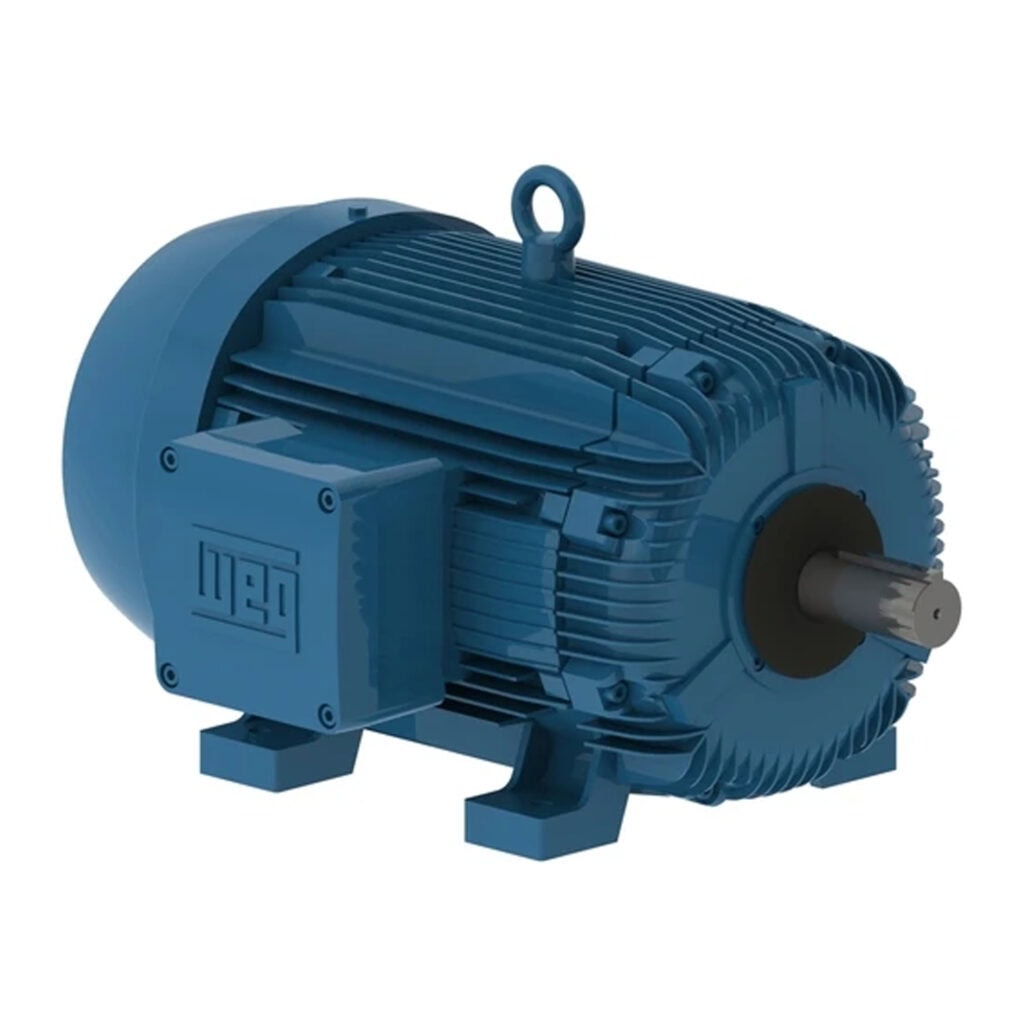

W21 Explosion-proof Motor NEMA Premium Efficiency – 460V – 3Ph, 125 HP, 3600RPM, TEFC, Foot-mounted, Model 12536XT3G444TS
WEG Explosion-proof motor was especially designed to operate in environments with the presence of explosive atmospheres. It has robust construction, a flame retention system with gaps between the parts carefully designed, accurate machining on the terminal box and screws with high mechanical strength. It meets the requirements of explosive atmospheres like Division I/Zone 1. Motors are certified for VFD service.
Product features
| Standard | NEMA MG-1 |
|---|---|
| Frequency | 60 Hz |
| Voltage | 460 V |
| Number of poles | 2 |
| Degree of Protection | IP55 |
| Synchronous speed | 3600 rpm |
| Output rating | 125 HP |
| Mounting | Foot-mounted |
| Flange | Without |
| Mounting | F-1 |
| Terminal box¹ | Left position |
| Enclosure | IC411 – TEFC |
Horizontal Multistage Pumps Filter
Horizontal Multistage Pumps Category Category AC Blower Pumps Booster Pumps Centrifugal Pumps Chemical Pumps Drainage Pumps Heavy Duty Dredge Pumps Horizontal Multistage Pumps Immersible Coolant Pumps Jet Pumps Sewage Pumps Swimming Pool Pumps Trash Pumps Vertical In-Line Pumps Vertical Multistage Pumps Voltage Ac voltage 110-115 volts 110/220 Dual 115/230 volts 208-220 volts 208-230 Volts 230…
Free Shipping

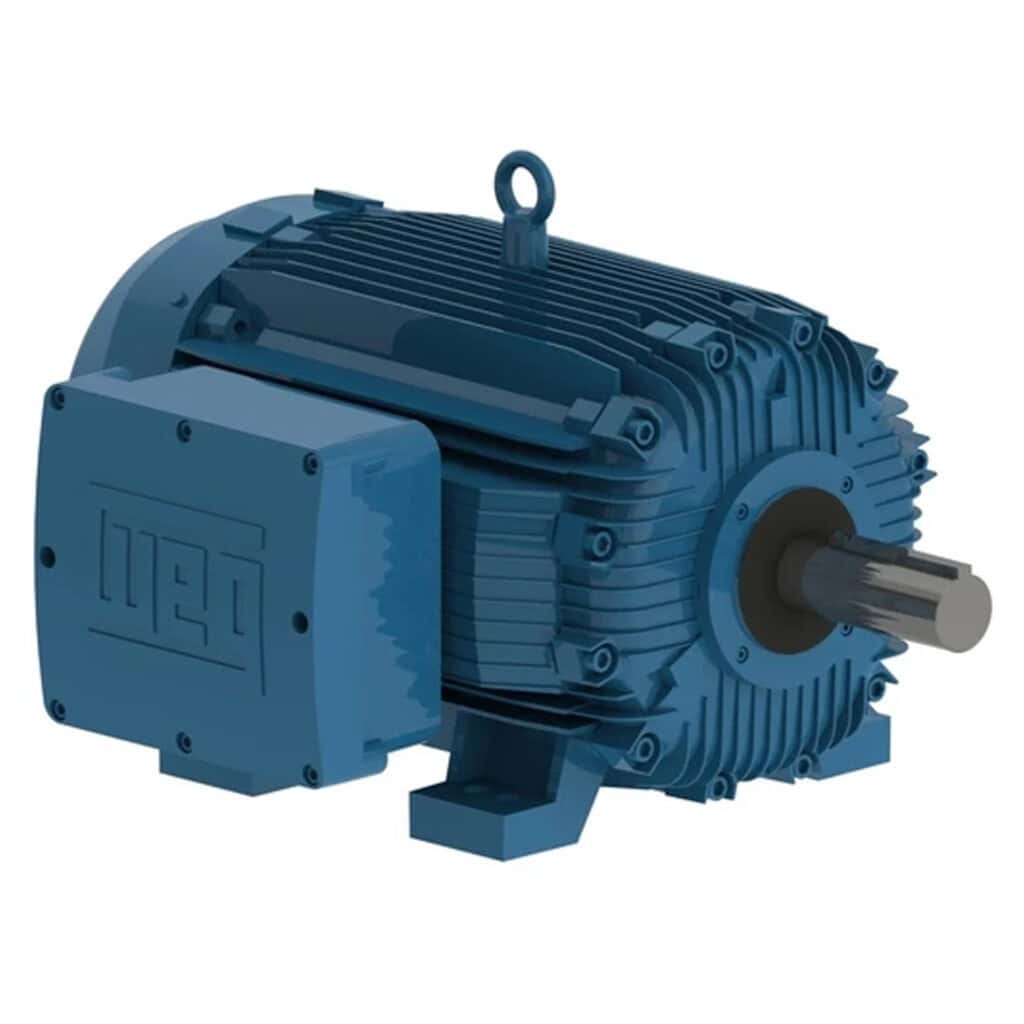

W21 Explosion-proof Motor NEMA Premium Efficiency – 230/460//380V – 3Ph, 40 HP, 1800RPM, TEFC, Foot-mounted, Model 04018XT3E324T
WEG Explosion-proof motor was especially designed to operate in environments with the presence of explosive atmospheres. It has robust construction, a flame retention system with gaps between the parts carefully designed, accurate machining on the terminal box and screws with high mechanical strength. It meets the requirements of explosive atmospheres like Division I/Zone 1. Motors are certified for VFD service.
Product features
| Standard | NEMA MG-1 |
|---|---|
| Frequency | 60//50 Hz |
| Voltage | 230/460//380 V |
| Number of poles | 4 |
| Degree of Protection | IP55 |
| Synchronous speed | 1800 rpm |
| Output rating | 40 HP |
| Mounting | Foot-mounted |
| Flange | Without |
| Mounting | F-1 |
| Terminal box¹ | Left position |
| Enclosure | IC411 – TEFC |
