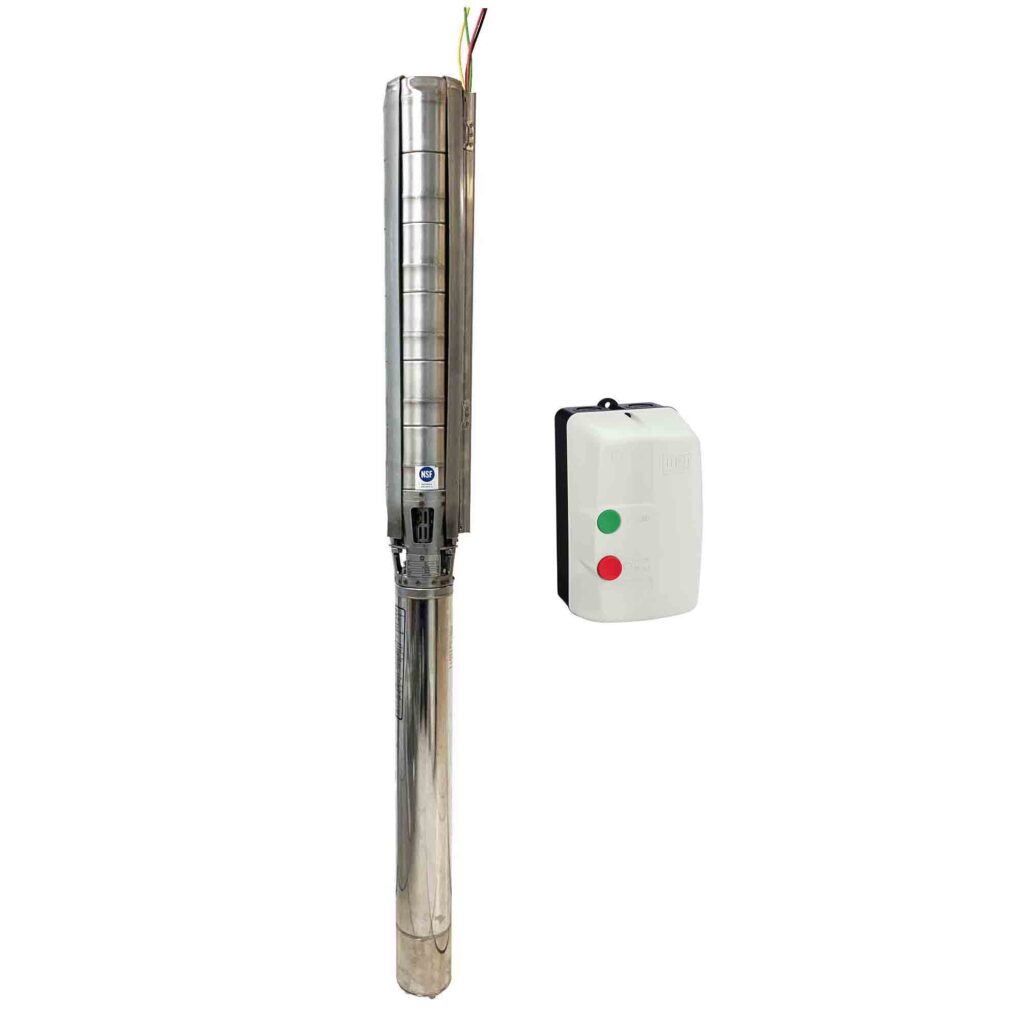

6″ Deep Well Submersible Pump

GolPumps’ Encapsulated-resin filled motor is developed with market expectation to meet the robust construction and stringent requirement, which is for 4” or larger well. The motor is 100% tested before shipment.

• Materials:

  • -Upper/Lower Bracket: AISI 304 Over Iron
  • -Stator Shell: AISI 304
  • -Shaft: AISI 420
  • -Seal Cover: Nylon
  • -Lip Seal: NBR
  • -Diaphragm: NBR
  • -Sand Slinger: NBR
  • -Lead Wire (Cable): XLPE
  • -Bolts and Screws: AISI 304
  • -Lead Potting: Epoxy
  • -Kingsbury Thrust Bearing: 402J2

  Product advantages

  • Hermetically sealed stator, anti-track, stator resin filled prevent motor burn out.
  • High efficiency provides operation cost savings Thrust pad
  • Copper wiring
  • Pressure equalizing diaphragm
  • Removable lead connector
  • Control boxes available for single phase motor Standard NEMA mounting dimensions

  Technical specifications

  • Upper bracket: Cataphoresis treated cast iron plus SS304 cover cap.
  • Max. Immersion depth: 985 ft.
  • Protection: IP68
  • Nos. of start per hour: max 20 at regular intervals.
  • Sand slinger and lip seal.
  • Insulation: Class F
  • Rated ambient temperature: 86°F with min.
  • Cooling flow 0.08 m/s of water flow speed
  • Standard installation position: vertical and horizontal

  PUMP SPEC:

  • Max Head Pressure (ft): 328ft
  • Max Flow(Gpm): 123
  • Discharge: 2  1/2”
  • HP: 7.5
  • Pump Material: Stainless Steel 304
  • Pump Model: A6X17CR07/06

 Made in Taiwan

Estimated Delivery Time: 3 – 5 Business Days

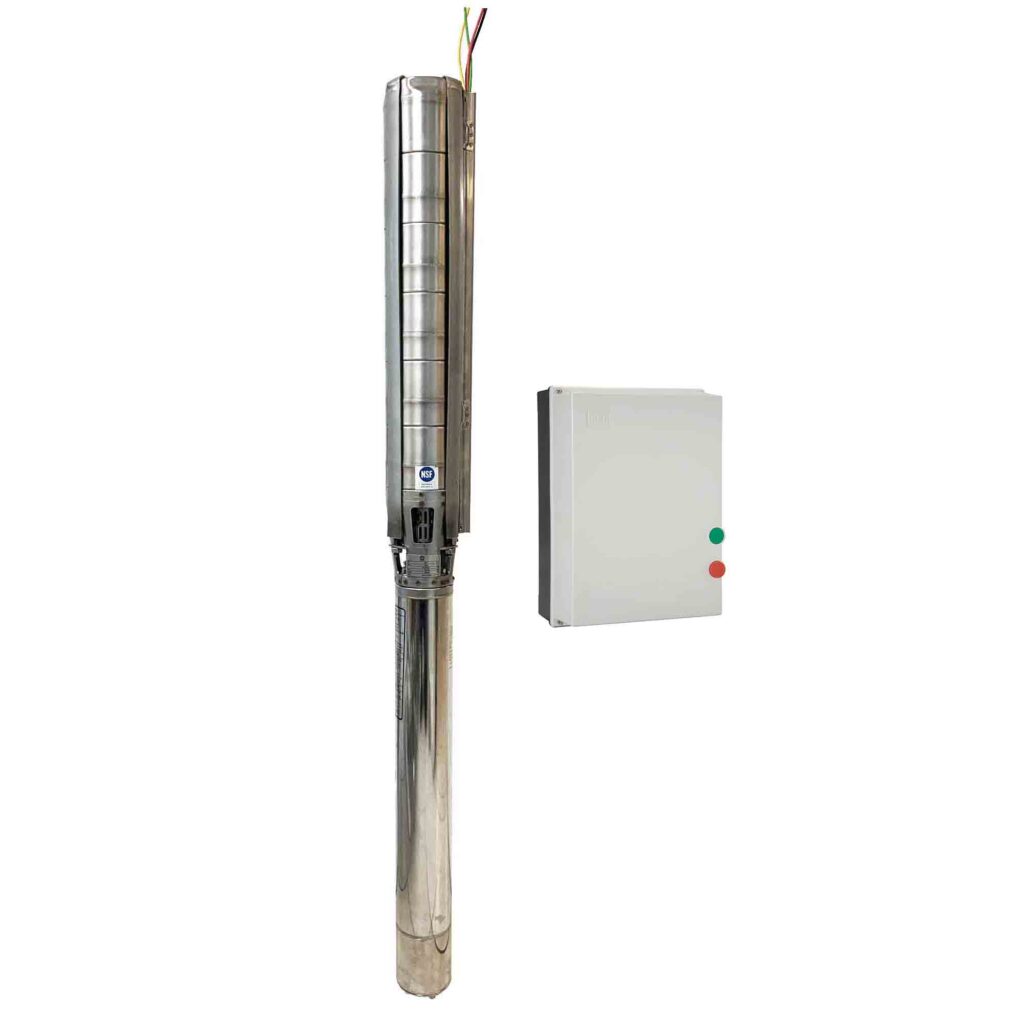

6″ Deep Well Submersible Pump

GolPumps’ Encapsulated-resin filled motor + Control Box are developed with market expectation to meet the robust construction and stringent requirement, which is for 4” or larger well. The motor is 100% tested before shipment.

Motor Materials:

• -Upper/Lower Bracket: AISI 304 Over Iron
• -Stator Shell: AISI 304
• -Shaft: AISI 420
• -Seal Cover: Nylon
• -Lip Seal: NBR
• -Diaphragm: NBR
• -Sand Slinger: NBR
• -Lead Wire (Cable): XLPE
• -Bolts and Screws: AISI 304
• -Lead Potting: Epoxy
• -Kingsbury Thrust Bearing: 402J2

Product advantages

• Hermetically sealed stator, anti-track, stator resin filled prevent motor burn out.
• High efficiency provides operation cost savings Thrust pad
• Copper wiring
• Pressure equalizing diaphragm
• Removable lead connector
• Control boxes available for single phase motor Standard NEMA mounting dimensions

Technical specifications

• Upper bracket: Cataphoresis treated cast iron plus SS304 cover cap.
• Max. Immersion depth: 985 ft.
• Protection: IP68
• Nos. of start per hour: max 20 at regular intervals.
• Sand slinger and lip seal.
• Insulation: Class F
• Rated ambient temperature: 86°F with min.
• Cooling flow 0.08 m/s of water flow speed
• Standard installation position: vertical and horizontal

PUMP SPEC:

• Max Head Pressure (ft): 220ft
• Max Flow(Gpm): 123
• Discharge: 2  1/2”
• HP: 5.5
• Pump Material: Stainless Steel 304
• Pump Model: A6X17CR05/04

 Made in Taiwan

Estimated Delivery Time: 3 – 5 Business Days
