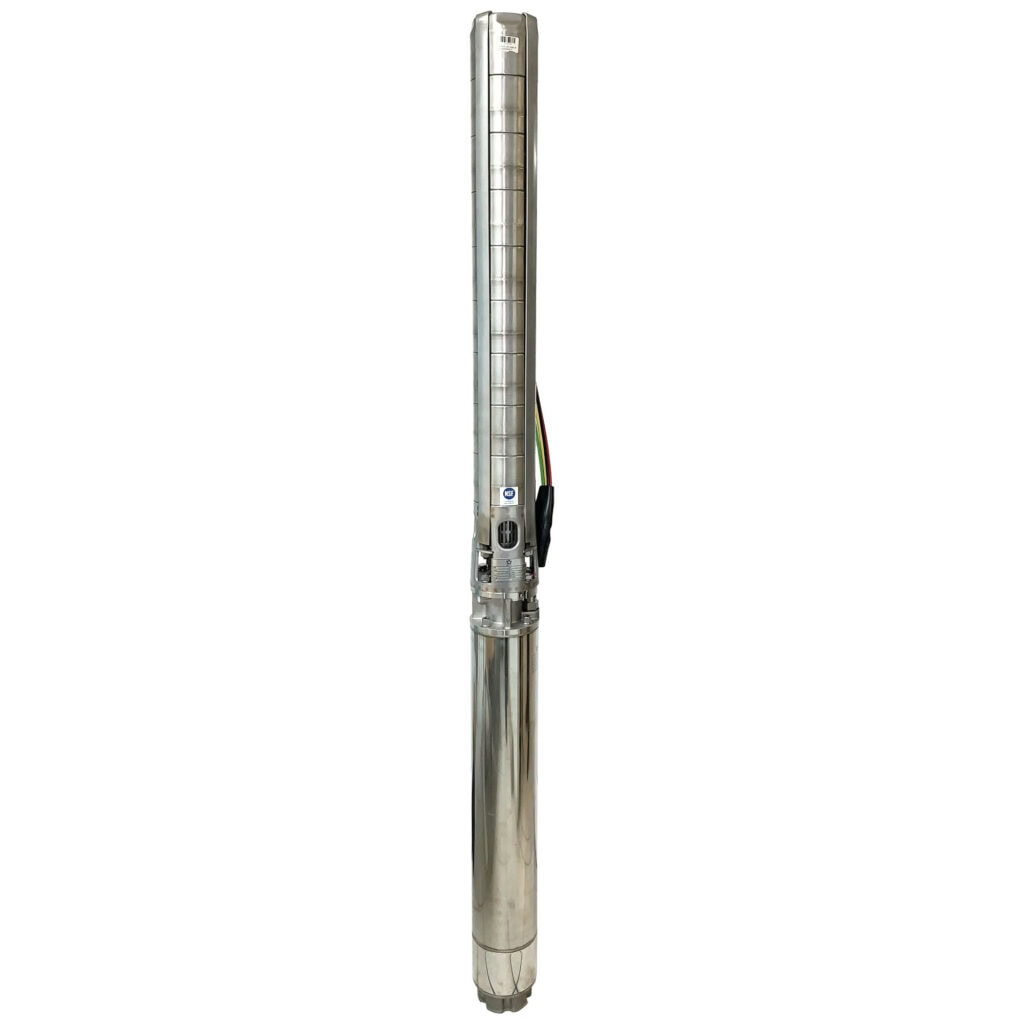

6″ Deep Well Submersible Pump

GolPumps’ Encapsulated-resin filled motor is developed with market expectation to meet the robust construction and stringent requirement, which is for 6” or larger well. The motor is 100% tested before shipment.

Product Advantages

• Hermetically sealed stator, anti-track, stator resin filled prevent motor burn out.
• High efficiency provides operation cost savings Thrust pad.
• Copper wiring.
• Pressure equalizing diaphragm.
• Removable lead connector.
• Control boxes available for single phase motor Standard NEMA mounting dimensions.

Technical Specifications

• Upper bracket: Cataphoresis treated cast iron plus SS304 cover cap.
• Max. Immersion depth: 650 ft.
• Protection: IP68.
• Nos. of start per hour: max 20 at regular intervals.
• Sand slinger and lip seal.
• Insulation: Class F.
• Rated ambient temperature: 30°C with min.
• Cooling flow 0.08 m/s of water flow speed.
• Standard installation position: vertical and horizontal.

Pump Spec

• Max Head Pressure (ft): 509ft
• Max Flow(Gpm): 200
• Discharge: 3″
• Volts: 230V – Three Phase
• HP:20
• Pump Material: Stainless Steel 304
• Pump Model: A6X30CR17/09

6″ Deep Well Submersible Pump

GolPumps’ Encapsulated-resin filled motor is developed with market expectation to meet the robust construction and stringent requirement, which is for 6” or larger well. The motor is 100% tested before shipment.

Product Advantages

• Hermetically sealed stator, anti-track, stator resin filled prevent motor burn out.
• High efficiency provides operation cost savings Thrust pad.
• Copper wiring.
• Pressure equalizing diaphragm.
• Removable lead connector.
• Control boxes available for single phase motor Standard NEMA mounting dimensions.

Technical Specifications

• Upper bracket: Cataphoresis treated cast iron plus SS304 cover cap.
• Max. Immersion depth: 650 ft.
• Protection: IP68.
• Nos. of start per hour: max 20 at regular intervals.
• Sand slinger and lip seal.
• Insulation: Class F.
• Rated ambient temperature: 30°C with min.
• Cooling flow 0.08 m/s of water flow speed.
• Standard installation position: vertical and horizontal.

Pump Spec

• Max Head Pressure (ft): 453ft
• Max Flow(Gpm): 200
• Discharge: 3″
• Volts: 460V – Three Phase
• HP:15
• Pump Material: Stainless Steel 304
• Pump Model: A6X30CR15/08

6″ Deep Well Submersible Pump

GolPumps’ Encapsulated-resin filled motor is developed with market expectation to meet the robust construction and stringent requirement, which is for 6” or larger well. The motor is 100% tested before shipment.

Product advantages

• Hermetically sealed stator, anti-track, stator resin filled prevent motor burn out.
• High efficiency provides operation cost savings Thrust pad
• Copper wiring
• Pressure equalizing diaphragm
• Removable lead connector
• Control boxes available for single phase motor Standard NEMA mounting dimensions

Technical specifications

• Upper bracket: Cataphoresis treated cast iron plus SS304 cover cap. Max. Immersion depth: 200m
• Protection: IP68
• Nos. of start per hour: max 20 at regular intervals.
• Sand slinger and lip seal.
• Insulation: Class F
• Rated ambient temperature: 30°C with min.
• Cooling flow 0.08 m/s of water flow speed
• Standard installation position: vertical and horizontal

PUMP SPEC:

• Max Head Pressure (ft): 282ft
• Max Flow(Gpm): 200
• Discharge: 3″
• Volts: 460V – Three Phase
• HP:10
• Pump Material: Stainless Steel 304
• Pump Model: A6X30CR10/05

 Made in Taiwan

Estimated Delivery Time: 3 – 5 Business Days
