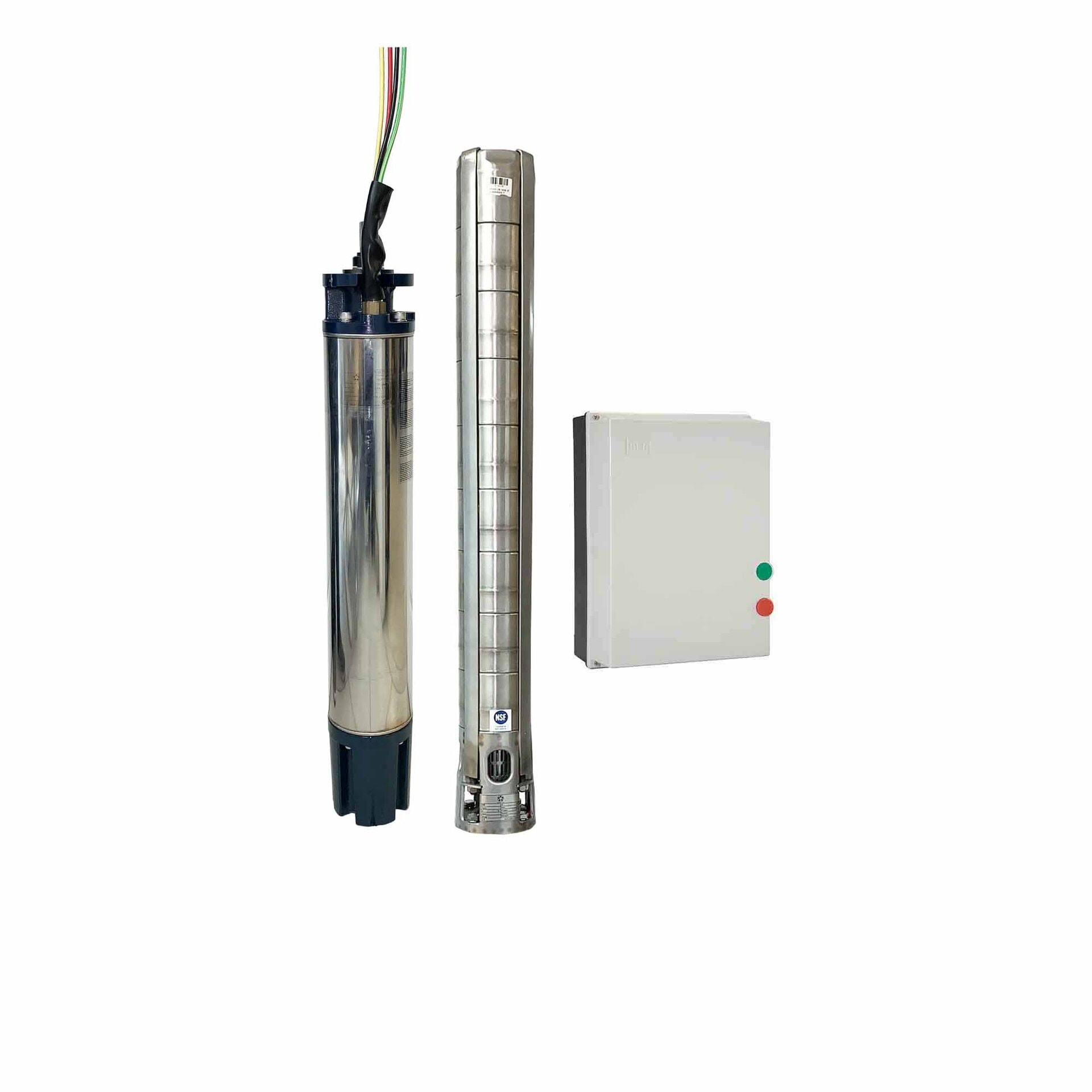

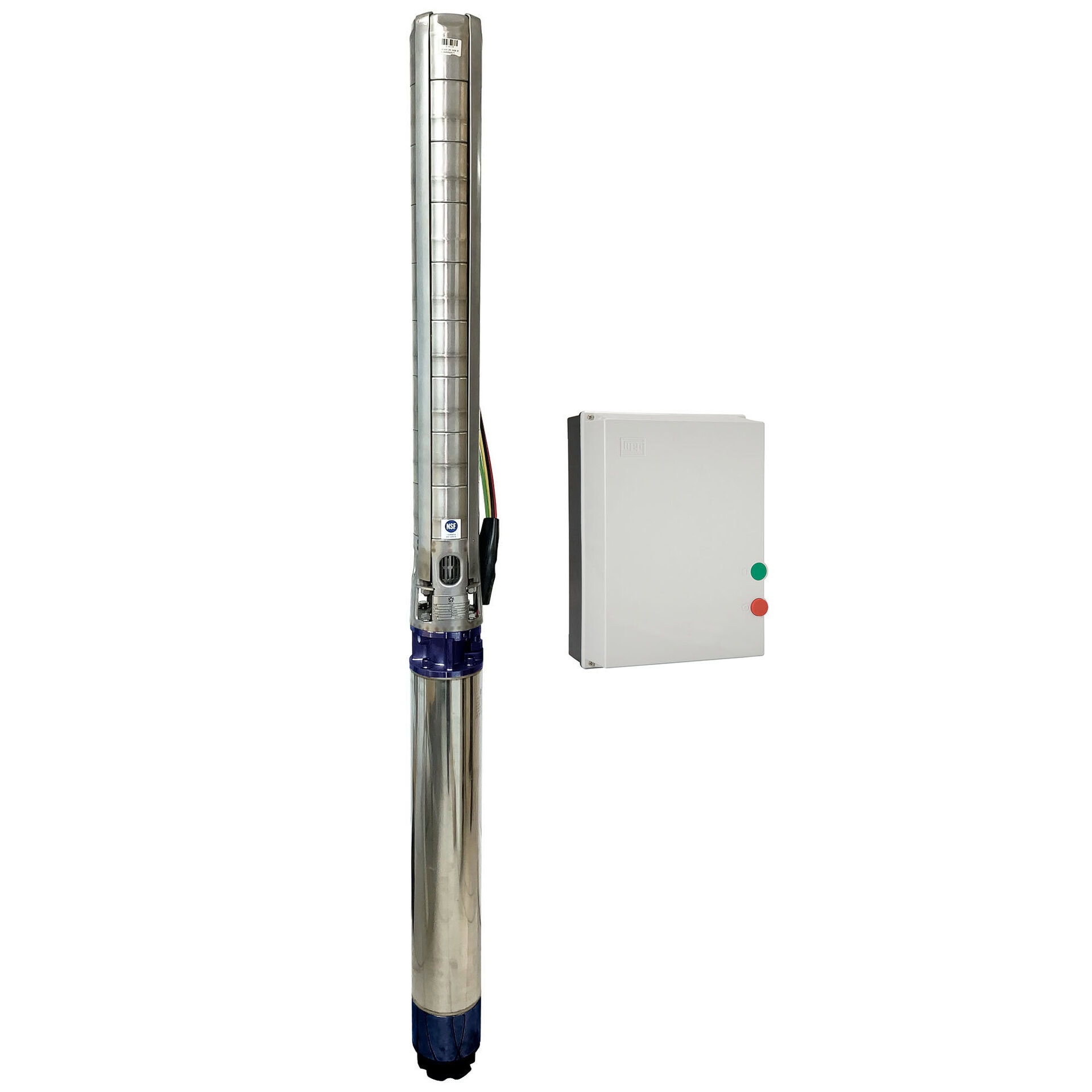

GolPumps’ Encapsulated-resin filled motor is developed with market expectation to meet the robust construction and stringent requirement, which is for 6” or larger well. The motor is 100% tested before shipment.
$5,586.20
This item ships via freight and cannot be unloaded without proper equipment.
If the address is entered as “commercial” but the carrier classifies it as residential, residential and/or liftgate charges will still apply and must be paid before delivery can be scheduled.
SHIPPING
FREE
PREMIUM DELIVERY
WAREHOUSE PICKUP
Technical Data| Model | Pump | A6X 60 CR 30/8 |
| Motor | 6CF7366D | |
| Brand | Gol Pumps | |
| Manufacturer’s Warranty | 1 years Limited Warranty | |
| P2 | kW | 22 |
| HP | 30 | |
| Service Factor | 1.15 | |
| Material | Pump | Stainless Steel 304 |
| Motor | Cast Iron | |
| Voltage – Phase | 460V – Three Phase | |
| Wire | – | |
| In | A | 37.6 |
| Imax | A | 43 |
| Istart | A | 148.2 |
| PF (%) | Allowable Load | 0.87 |
| Overload Factor | 0.88 | |
| Efficiency (%) | Allowable Load | 84.3 |
| Overload Factor | 83.6 | |
| R.P.M | 3450 | |
| Thrust | N | 15500 |
| Capacitor | UF | No |
| Cable | AWG | 10 |
| Length (ft.) | 13.1 | |
| Production Country | Taiwan | |

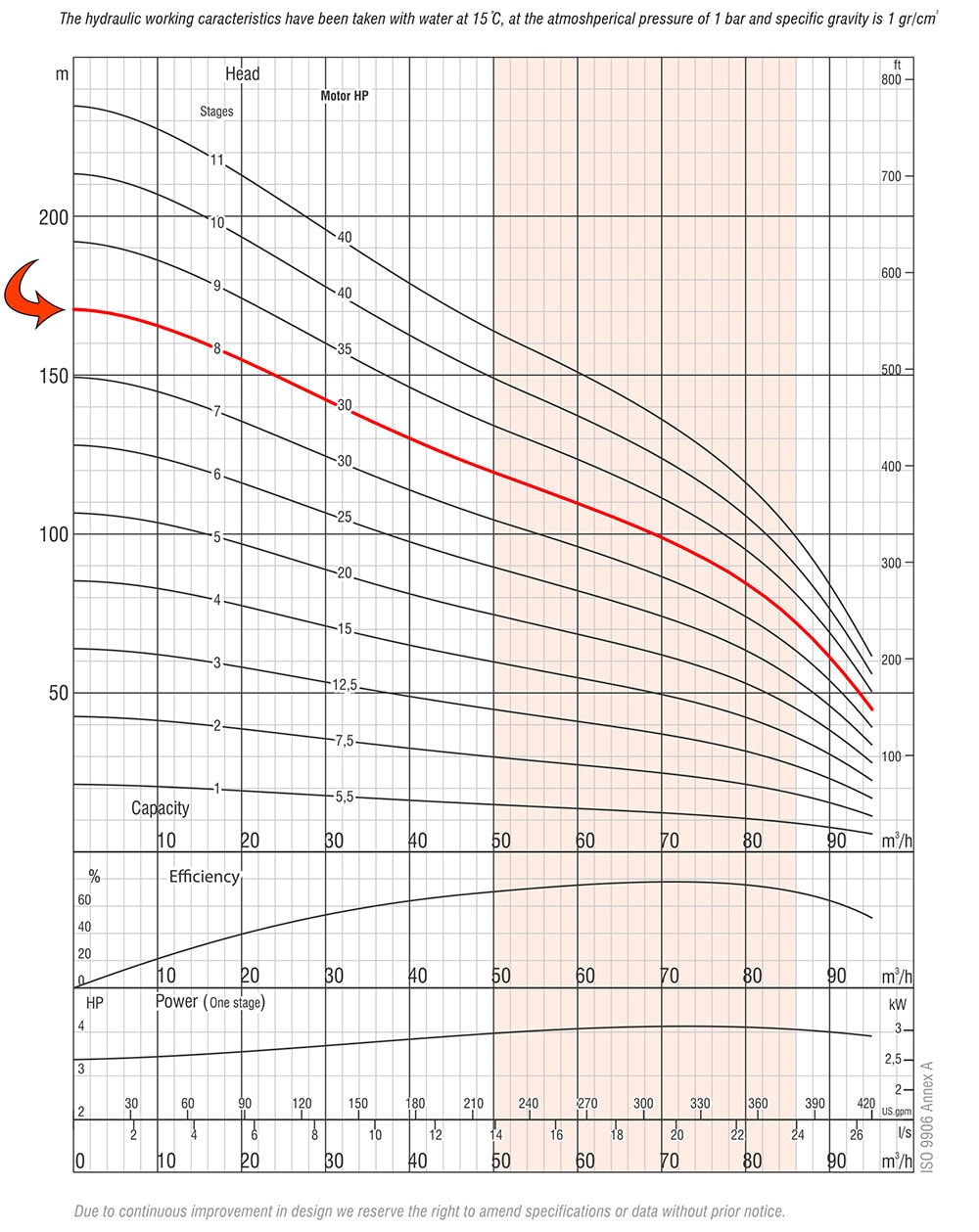

| Pump Model | Stages | Motor | Q Capacity 3500RPM | ||||||||||
| kW | HP | Gal/H | 0 | 5283 | 10567 | 15850 | 17171 | 18492 | 19813 | 21134 | 22455 | ||
| A6X 60 CR 30/8 | 8 | 22 | 30 | Head (ft.) | 558 | 509 | 427 | 361 | 344 | 325 | 305 | 276 | 243 |
| Outlet | Motor Dia. | Dimensions (inch) | Weight (lb) | |||||
| LP | LM | L | ØP | Pump | Motor | Pump + Motor | ||
| NPT 4″ | 6″ | 46″ | 35.7″ | 81.7″ | 5″ | 57 | 155.3 | 212.3 |
| No. | Part Name | Materials |
| 1 | Suction Case | Stainless Steel (AISI 304L) |
| 2 | Filter | Stainless Steel (AISI 304) |
| 3 | Suction Case Wear Ring | Bronze (ASTM B145-4A) |
| 4 | Pump Shaft with Coupling | Stainless Steel (AISI 420) |
| 5 | Collet | Stainless Steel |
| 6 | Impeller Wear Rings | Stainless Steel (AISI 304) |
| 7 | Impeller | Stainless Steel (AISI 304L) |
| 8 | Diffuser | Stainless Steel (AISI 304L) |
| 9 | Rubber Bearing | Rubber |
| 10 | Diffuser Wear Ring | Rubber |
| 11 | Nut for Stop Ring | Stainless Steel (AISI 304L) |
| 12 | Bearing | Rubber |
| 13 | Shaft Stopper | Bronze (ASTM B145-4A) |
| 14 | Valve | Stainless Steel (AISI 304) |
| 15 | Discharge Case | Stainless Steel (AISI 304) |
| 16 | Tie Rod | Stainless Steel (AISI 304L) |
| 17 | Cable Guard | Stainless Steel (AISI 304) |
| 18 | Tie Rod Nut | Stainless Steel (AISI 303) |
| 19 | Name Plate | Stainless Steel (AISI 304) |
