Gol Pumps SP 23008, 6″ Submersible Well Stainless Steel 316, 25HP, 3PH, 460V, 6″ Motor, 8 Stages, 4″ NPT Discharge, 317 GPM

5/5

shipping SHIPPING


Get it in 3-5 Business Days

  • Front door drop off (ground floor or lobby only)
  • Signature Required


FREE

Premium delivery PREMIUM DELIVERY

warehouse pickupWAREHOUSE PICKUP

Get it today (Business days)


shipping SHIPPING


Get it in 3-5 Business Days

  • Front door drop off (ground floor or lobby only)
  • Signature Required


FREE

Premium delivery PREMIUM DELIVERY

warehouse pickupWAREHOUSE PICKUP

Get it today (Business days)


Gol Pumps SP 23008, 6″ Submersible Well Stainless Steel 316, 25HP, 3PH, 460V, 6″ Motor, 8 Stages, 4″ NPT Discharge, 317 GPM

5/5

 Unit Price Only

$8,158.99

ETA 3-5 Days - Free Shipping

Adam Roper
Adam Roper
Read More
Great company to do business with. Was very helpful to get the right pump for my Application. Great and well made product.
Steve Lee
Steve Lee
Read More
They sent the pump the same day I ordered it. I got great customer support on connecting my solar panels to the pump. Right away! And tech support on which pump to choose. Good company from my experience thus far.
Keith Kubicek
Keith Kubicek
Read More
5-star customer service. The pump I ordered was too wide to fit in a 4” well*. Chris were very helpful in communications by phone and email to return the pump and refund my money within a few days....
Raymond P
Raymond P
Read More
Great customer service and quick shipping! I had several questions regarding the application of the pump I purchased, and they assisted me through the entire process. Will definitely recommend!
John Poltrock
John Poltrock
Read More
This is a great company! We had trouble with our pump to start and they spent time helping and making it right. I would ABSOLUTELY buy from them again. Great job.
Ed Paukovits
Ed Paukovits
Read More
This was my first time dealing with this company, and my experience was excellent. ... A ten in customer service!
Toni Donato
Toni Donato
Read More
I live in the Bahamas and was greatly affected by Hurricane Dorian. Needed two pumps.... Thank you very much.
Lori Lucas
Lori Lucas
Read More
I gave this pump a 4 instead of 5 only because for the normal home owner wanting to install his/her own well pump the instructions are horrible or non existing! I would give this pump a solid 5 however because the quality, packaging, price was awesome! The shipping was pretty quick also. ..
Previous
Next

Cart

Advertisement

Product Data>>>

SP 6″ Stainless Steel Submersible Pumps

SP 6″ submersible pumps are made of corrosion and abrasion resistant stainless steel and have been developed in accordance with state-of-the-art technology. The SP series of pumps are manufactured to the highest standards for energy efficiency, dependable performance, rugged construction and long service life for the most demanding applications.

Application

  • Potable water supply.
  • Agricultural irrigation and livestock watering.
  • Municipal and industrial water supply.
  • Pressure boosting.
  • Mining applications.
  • Groundwater lowering.
  • Fountain.

Pumped Liquids

Clean, thin, non-aggressive and non-corrosive liquids without solid particles or fibers.

Features

  • Stainless Steel construction designed and built for years of trouble free operation.
  • Designed and built to operate in difficult conditions.
  • All metal parts are made of 304 or 316 stainless steel, except for the shafts, which are made of 431 or 316 stainless steel.
  • Heavy duty stainless steel discharge head with built-in check valve for preventing back flow in connection with pump stoppage and the risk of destructive water hammer is reduced to a minimum.
  • NEMA standard of bracket mounting.
  • High quality shaft bearings provide low friction and high wear resistance.
  • The stop ring prevents damage to the pump during transport and in case of up-thrust in connection with start-up. The stop ring, which is designed as a thrust bearing, limits axial movements of the pump shaft.
  • Stainless steel strainer to restrict the entry of sand and other extraneous material.

Description

Technical Data

Model Pump SP 230-8
Motor 6CN7356D
Brand Gol Pumps
Manufacturer’s Warranty 1 years Limited Warranty
P2 kW 18.5
HP 25
Service Factor 1.15
Material Pump Stainless Steel 316
Motor Stainless Steel 316
Voltage – Phase 460V – Three Phase
Wire
In A 34
Imax A 38
Istart A 142.3
PF (%) Allowable Load 0.81
Overload Factor 0.83
Efficiency (%) Allowable Load 84
Overload Factor 83.8
R.P.M 3450
Thrust N 15500
Capacitor UF
Cable AWG 10
Length (ft.) 13.1
Production Country Taiwan

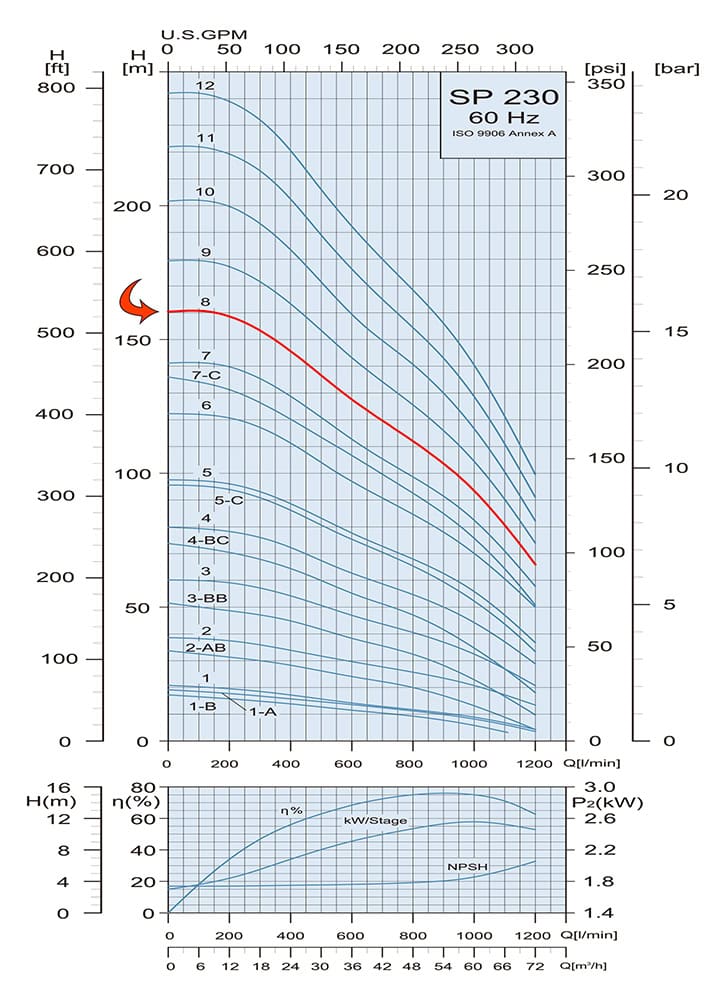

Performance Curves

Pump Model Motor Q Capacity 3500RPM
kW HP Gal/Min 79.3 92.5 105.7 118.9 132.1 145.3 158.5 184.9 211.3 237.6 264.2 290.6 317
SP 230-8 18.5 25 Head (ft.) 502 492.1 479 462.6 449.5 433.1 416.7 393.7 370.7 341.2 308.4 262.5 216.5

Dimensions and Weights

Outlet Motor Dia. Dimensions (inch) Weight (lb)
A B C Pump Motor Pump + Motor
NPT 4″ 6″ 46.2″ 79.6″ 5.9″ 50.4 145 195.4

Part List and Materials

No. Part Name Materials
01 Discharge AISI 316
04 Valve Cone AISI 316
11 Top Diffuser AISI 316
12 Diffuser AISI 316
18 Impeller AISI 316
19 Ring of Impeller AISI 316
21 Split Cone AISI 316
22 Split Cone Nut AISI 316
26 Spacing Washer for Stop Ring Carbon + Graphite + PTFE
23 Neck Ring Retainer AISI 316
34 Strainer AISI 316
36 Suction Interconnector AISI 316
37 Pump Shaft AISI 316
44 Coupling AISI 316
47 Strap AISI 316
52 Cable Guard AISI 316
86 Valve Seat AISI 316 + HNBR
87 Neck Ring Nut AISI 316 + HNBR
88 Nut AISI 316
89 Bearing HNBR
90 Screw AISI 316
91 Key AISI 316
92 O-ring HNBR
