6″ Deep Well Submersible Pump

GolPumps’ Encapsulated-resin filled motor is developed with market expectation to meet the robust construction and stringent requirement, which is for 6” or larger well. The motor is 100% tested before shipment.

Product Advantages

• Hermetically sealed stator, anti-track, stator resin filled prevent motor burn out.
• High efficiency provides operation cost savings Thrust pad.
• Copper wiring.
• Pressure equalizing diaphragm.
• Removable lead connector.
• Control boxes available for single phase motor Standard NEMA mounting dimensions.

Technical Specifications

• Upper bracket: Cataphoresis treated cast iron plus SS304 cover cap.
• Max. Immersion depth: 650 ft.
• Protection: IP68.
• Nos. of start per hour: max 20 at regular intervals.
• Sand slinger and lip seal.
• Insulation: Class F.
• Rated ambient temperature: 30°C with min.
• Cooling flow 0.08 m/s of water flow speed.
• Standard installation position: vertical and horizontal.

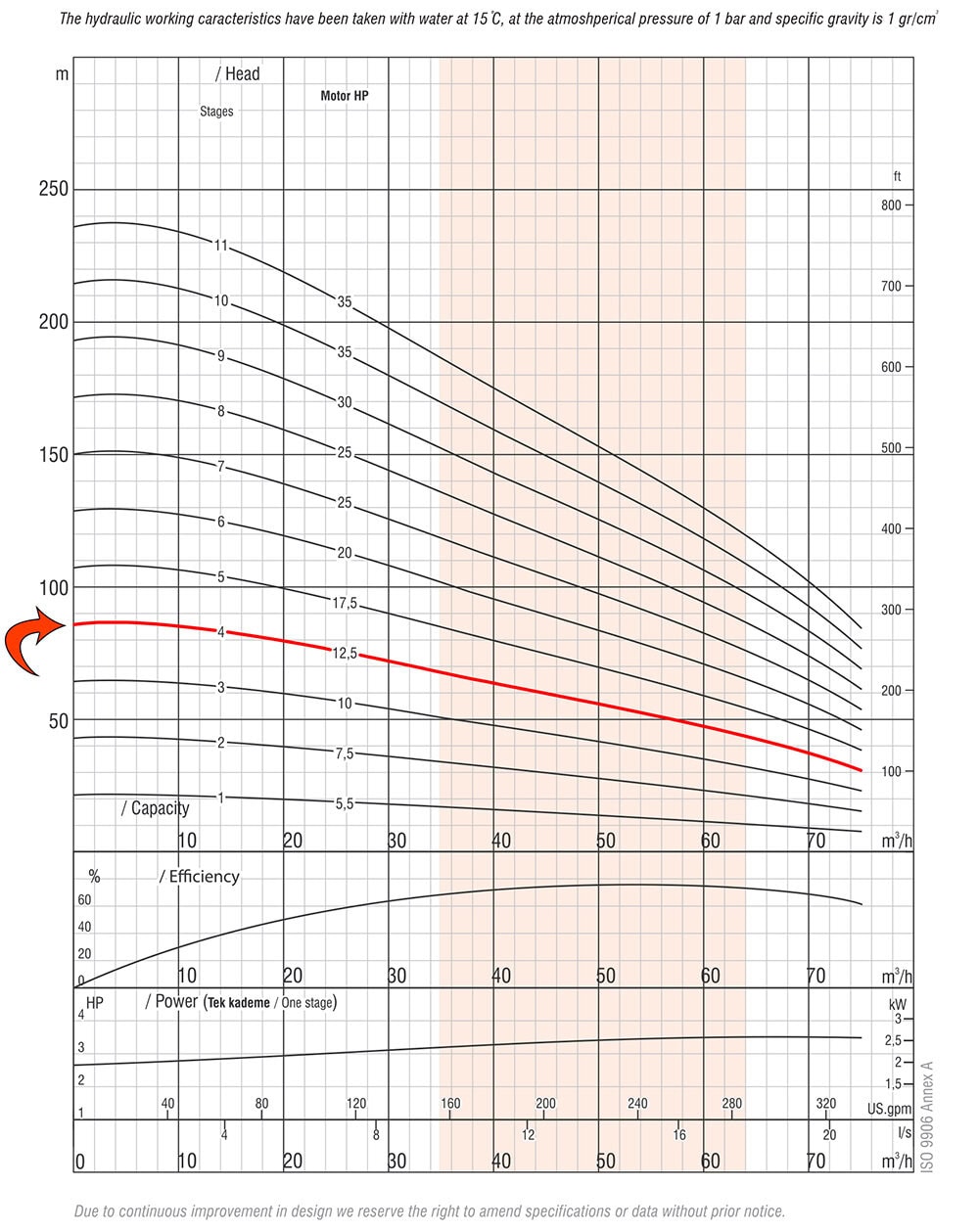

Pump Spec

• Max Head Pressure (ft): 282ft
• Max Flow(Gpm): 290
• Discharge: 4″
• Volts: 230V – Three Phase
• HP:12.5
• Pump Material: Stainless Steel 304
• Pump Model: A6X46CR12/04
