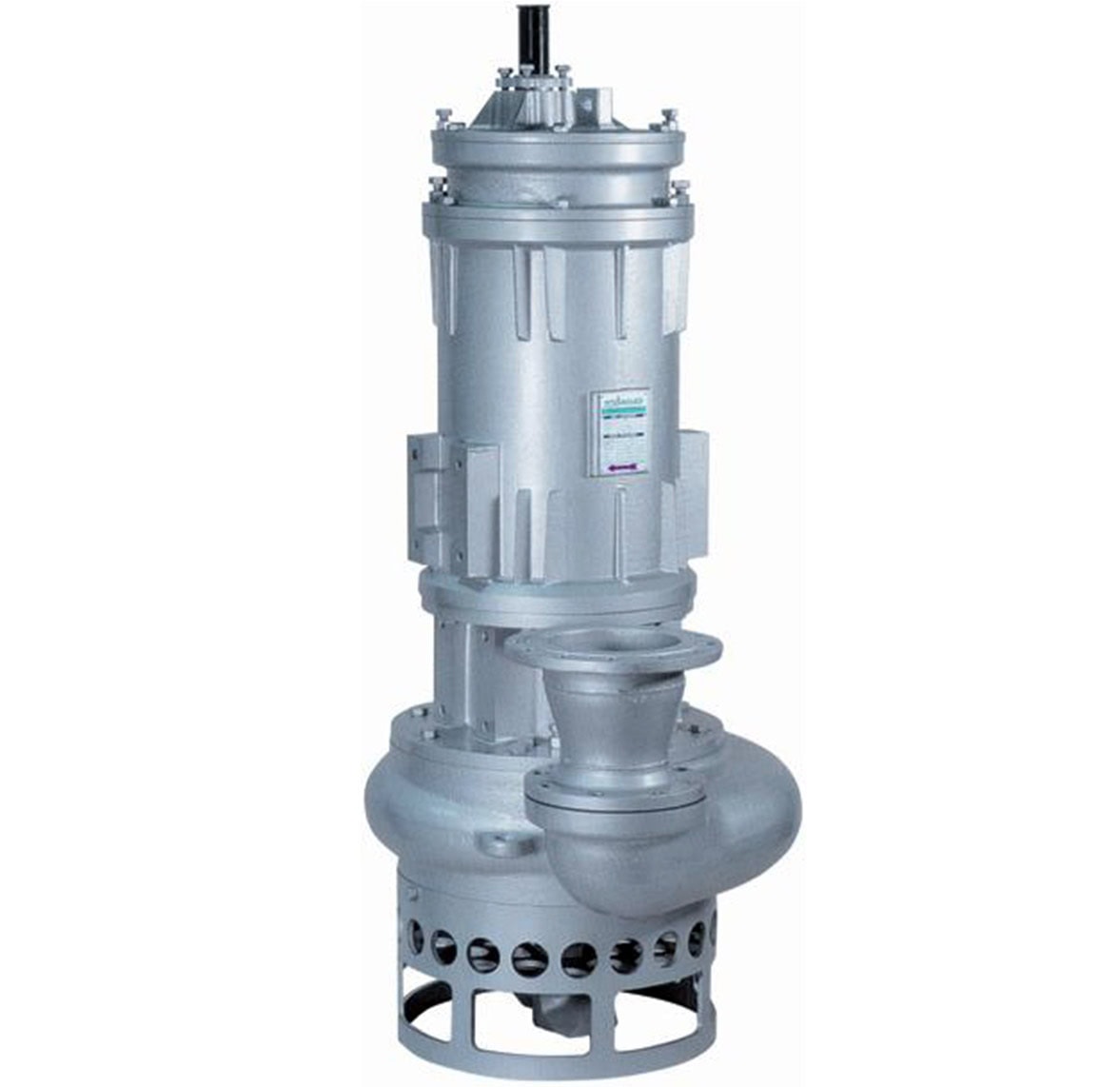

DRAGFLOW HEAVY DUTY SLURRY ELECTRIC DRIVEN PUMP – EL25B

$23,400.00

Submersible heavy duty agitator pumps.
Main features:

  • All Pumps have standard high efficiency agitator to lift settled solids.
  • High abrasion resistance with high chrome wear parts.
  • Low rotation speed to reduce wear effect.
  • Able to handle up to 70% solids by weight.
  • All electric motors are class H with high service factor.

Electric pumps are available in 50Hz and 60Hz versions.
Certification CE/UL/CSA.


 Made in Italy

Estimated Delivery: 3-5 Business Days

Product is In stock – Please call for purchasing

Description

Submersible heavy duty agitator pumps.
Main features:

  • All Pumps have standard high efficiency agitator to lift settled solids.
  • High abrasion resistance with high chrome wear parts.
  • Low rotation speed to reduce wear effect.
  • Able to handle up to 70% solids by weight.
  • All electric motors are class H with high service factor.

Electric pumps are available in 50Hz and 60Hz versions.
Certification CE/UL/CSA.


 Made in Italy

Estimated Delivery: 3-5 Business Days

  PUMP SPECIFICATIONS
Capacity [h – (USGPM)] 616
Head [(ft)] 56
Impeller diameter [(in)]/type (15)/2 blades opened
Flanged bore size [(in)] 6
Cross section diameter [(in)] 1.4
Weight (without cable) [(lbs)] 1530



  ELECTRIC MOTOR
Power [kW-HP] 18-25
Voltage [V]/Current [A] 460/30.8
Phases/Poles/Frequency [Hz] 3/6/60
Speed [RPM] 1180
Insulationclass H
Powercable 20m (IEC 60245- 4) H07RN-F 4G16



  MATERIALS
Casing Spheroidal cast iron EN-GJS-500-7 (EN 1563)
Motor housing Cast iron EN-GJL-250 (EN 1561)
Wear parts High chrome EN-GJN-HV600 (XCr18) (EN 12513)
Main shaft High tensile steel 39NiCrMo3 (AISI 9840)



  SEALS / LUBRICANT
Motor side seals 2 lipseals (BUNA)
Impeller side seals 5 lip seals (3 BUNA + 2 PTFE) + 1 V-RING (TPU)
Oil type ISO 320



  DIMENSIONS [in]
H W D F H1 A B C
54.4 31.8 26.8 21.4 36.2 13.4 14 5.8
